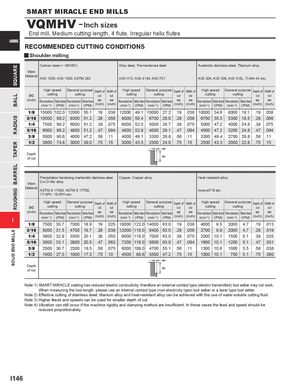

VQMHV - Inch sizes

CARBIDE

RECOMMENDED CUTTING CONDITIONS

y Shoulder milling

Work Material	Carbon s AISI 103	teel(─3 5, AISI 1	0HRC) 050, AST	M 283			Alloy stee AISI H13	l, Pre-h , AISI 41	ardened 40, AISI	steel P21			Austeniti AISI 304,	c stainle AISI 30	ss steel, T 6, AISI 31	itanium 6L, Ti-6	alloy Al-4V e	tc.
	High s	peed	General	purpose	Depth of	Width of	High s	peed	General	purpose	Depth of	Width of	High s	peed	General p	urpose	Depth of	Width of
DC	cutti	ng	cutti	ng	cut	cut	cutti	ng	cutt	ing	cut	cut	cutti	ng	cutti	ng	cut	cut
(inch)	Revoltion	Table feed	Revoltion	Table feed	ap	ae	Revoltion	Table feed	Revoltio	Table feed	ap	ae	Revoltion	Table feed	Revoltion	Table feed	ap	ae
	u (min-1)	(IPM)	u (min-1)	(IPM)	(inch)	(inch)	u (min-1)	(IPM)	u (min-1)	(IPM)	(inch)	(inch)	u (min-1)	(IPM)	u (min-1)	(IPM)	(inch)	(inch)
1/8	15000	102.0	12000	55.1	.19	.038	12000	49.1	10000	27.2	.19	.038	10000	34.6	8000	18.1	.19	.038
3/16	10000	99.2	8000	51.2	.28	.056	8000	50.4	6700	28.0	.28	.056	6700	35.3	5300	18.5	.28	.056
1/4	7500	99.2	6000	51.2	.38	.075	6000	52.0	5000	28.7	.38	.075	5000	47.2	4000	24.8	.38	.075
5/16	6000	99.2	4800	51.2	.47	.094	4800	52.9	4000	29.1	.47	.094	4000	47.2	3200	24.8	.47	.094
3/8	5000	90.6	4000	47.2	.56	.11	4000	49.1	3300	26.8	.56	.11	3300	49.4	2700	26.8	.56	.11
1/2	3800	748	3000	390	75	15	3000	435	2500	240	75	15	2500	433	2000	228	75	15
Depth of cut Work Material	Precipitat Co-Cr-M ASTM S 17-4PH,	. ion hard o alloy 17400, 15-5PH	ening mar ASTM S 1 etc.	. tensitic st 7700,	. ainless	. steel,	Copper,	. Copper a	lloy	. ae ap	.	.	Heat resi Inconel7	. stant all 18 etc.	oy	.	.	.
	High s	peed	General	purpose	Depth of	Width of	High s	peed	General	purpose	Depth of	Width of	High s	peed	General p	urpose	Depth of	Width of
DC	cutti	ng	cutti	ng	cut	cut	cutti	ng	cutt	ing	cut	cut	cutti	ng	cutti	ng	cut	cut
(inch)	Revolution	Table feed	Revolution	Table feed	ap	ae	Revolution	Table feed	Revolution	Table feed	ap	ae	Revolution	Table feed	Revolution	Table feed	ap	ae
	(min-1)	(IPM)	(min-1)	(IPM)	(inch)	(inch)	(min-1)	(IPM)	(min-1)	(IPM)	(inch)	(inch)	(min-1)	(IPM)	(min-1)	(IPM)	(inch)	(inch)
1/8	7500	30.7	7000	18.9	.19	.025	18000	122.0	14000	63.0	.19	.038	4000	9.5	3000	4.7	.19	.013
3/16	5000	31.5	4700	19.7	.28	.038	12000	119.0	9400	63.0	.28	.056	2700	9.8	2000	4.7	.28	.019
1/4	3800	32.9	3500	20.1	.38	.050	9000	119.0	7000	63.0	.38	.075	2000	10.1	1500	5.1	.38	.025
5/16	3000	33.1	2800	20.5	.47	.063	7200	119.0	5600	63.0	.47	.094	1600	10.1	1200	5.1	.47	.031
3/8	2500	30.7	2300	18.5	.56	.075	6000	109.0	4700	55.1	.56	.11	1300	10.6	1000	5.5	.56	.038
1/2	1900	27.5	1800	17.3	.75	.10	4500	88.6	3500	47.2	.75	.15	1000	10.1	750	5.1	.75	.050
Depth of cut										ae ap

Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter. Note 2) Effective cutting of stainless steel, titanium alloy and heat-resistant alloy can be achieved with the use of water-soluble cutting fluid. Note 3) Higher feeds and speeds can be used for smaller depth of cut. Note 4) Vibration can still occur if the machine rigidity and clamping method are insufficient. In these cases the feed and speed should be reduced proportionately.
