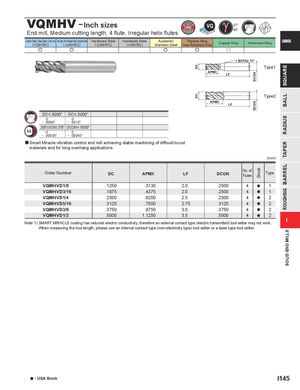

VQMHV - Inch sizes 37° 40° End mill, Medium cutting length, 4 flute, Irregular helix flutes Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy, Copper Alloy Aluminum Alloy CARBIDE (<30HRC) ( < 45HRC) ( < 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy e e e e u BHTA2 15° Type1 DC SQUARE APMX DCON LF Type2 DC BALL APMX DCON LF DC<.5000" DC=.5000" RADIUS 0 0 - .0008" - .0012" .2500"< DCON< .3750" DCON=.5000" 0 0 - .00035" - .00043" a Smart Miracle vibration control end mill achieving stable machining of difficult-to-cut TAPER materials and for long overhang applications. (inch) ROUGHING BARREL Stock No. of Order Number DC APMX LF DCON Type Flutes VQMHVD1/8 .1250 .3130 2.0 .2500 4 a 1 VQMHVD3/16 .1875 .4375 2.0 .2500 4 a 1 VQMHVD1/4 .2500 .6250 2.5 .2500 4 a 2 VQMHVD5/16 .3125 .7500 2.75 .3125 4 a 2 VQMHVD3/8 .3750 .8750 3.0 .3750 4 a 2 VQMHVD1/2 .5000 1.1250 3.5 .5000 4 a 2 Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. I When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter. SOLID END MILLS a : USA Stock I145
