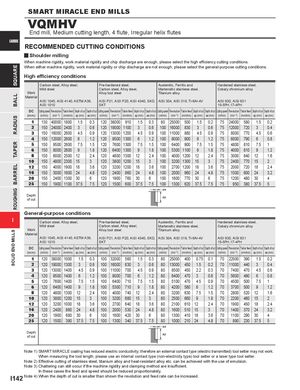

Общий каталог Mitsubishi 2020 - 2021 - страница 901
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
CARBIDE
RECOMMENDED CUTTING CONDITIONS
y Shoulder milling
When machine rigidity, work material rigidity and chip discharge are enough, please select the high efficiency cutting conditions. When either machine rigidity, work material rigidity or chip discharge are not enough, please select the general-purpose cutting conditions.
High efficiency conditions
| Work Material | Carbo Mild s AISI 1 AISI 1 | n steel, teel 045, AIS 010 | Alloy st I 4140, | eel, ASTM | A36, | Pre-ha Carbo Alloy t AISI P SKT | rdened n steel, ool steel 21, AISI | steel, Alloy st P20, A | eel, ISI 4340 | , SKD, | Auste Marte Titaniu AISI 3 | nitic, Fer nsitic sta m alloy 04, AISI | ritic an inless s 316, Ti | d teel, -6Al-4V | Harde Cobal AISI 6 15-5P | ned stai y chromi 30, AISI H,17-4P | nless st um allo 631 H | eel, y | ||
| DC (mm) | Cutting spee (m/min) | d Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Depth of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Depth of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Depth of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Depth of cut ae (mm) |
| 1 | 130 | 40000 | 1800 | 1.5 | 0.3 | 120 | 38000 | 910 | 1.5 | 0.3 | 80 | 25000 | 500 | 1.5 | 0.2 | 75 | 24000 | 580 | 1.5 | 0.2 |
| 2 | 150 | 24000 | 2400 | 3 | 0.6 | 120 | 19000 | 1100 | 3 | 0.6 | 100 | 16000 | 830 | 3 | 0.6 | 75 | 12000 | 720 | 3 | 0.4 |
| 3 | 150 | 16000 | 2600 | 4.5 | 0.9 | 120 | 13000 | 1200 | 4.5 | 0.9 | 100 | 11000 | 880 | 4.5 | 0.9 | 75 | 8000 | 770 | 4.5 | 0.6 |
| 4 | 150 | 12000 | 2600 | 6 | 1.2 | 120 | 9500 | 1300 | 6 | 1.2 | 100 | 8000 | 900 | 6 | 1.2 | 75 | 6000 | 790 | 6 | 0.8 |
| 5 | 150 | 9500 | 2600 | 7.5 | 1.5 | 120 | 7600 | 1300 | 7.5 | 1.5 | 100 | 6400 | 900 | 7.5 | 1.5 | 75 | 4800 | 810 | 7.5 | 1 |
| 6 | 150 | 8000 | 2600 | 9 | 1.8 | 120 | 6400 | 1300 | 9 | 1.8 | 100 | 5300 | 1100 | 9 | 1.8 | 75 | 4000 | 810 | 9 | 1.2 |
| 8 | 150 | 6000 | 2500 | 12 | 2.4 | 120 | 4800 | 1300 | 12 | 2.4 | 100 | 4000 | 1200 | 12 | 2.4 | 75 | 3000 | 840 | 12 | 1.6 |
| 10 | 150 | 4800 | 2300 | 15 | 3 | 120 | 3800 | 1200 | 15 | 3 | 100 | 3200 | 1300 | 15 | 3 | 75 | 2400 | 770 | 15 | 2 |
| 12 | 150 | 4000 | 1900 | 18 | 3.6 | 120 | 3200 | 1200 | 18 | 3.6 | 100 | 2700 | 1200 | 18 | 3.6 | 75 | 2000 | 720 | 18 | 2.4 |
| 16 | 150 | 3000 | 1600 | 24 | 4.8 | 120 | 2400 | 960 | 24 | 4.8 | 100 | 2000 | 960 | 24 | 4.8 | 75 | 1500 | 600 | 24 | 3.2 |
| 20 | 150 | 2400 | 1300 | 30 | 6 | 120 | 1900 | 760 | 30 | 6 | 100 | 1600 | 770 | 30 | 6 | 75 | 1200 | 480 | 30 | 4 |
| 25 | 150 | 1900 | 1100 | 37.5 | 7.5 | 120 | 1500 | 600 | 37.5 | 7.5 | 100 | 1300 | 620 | 37.5 | 7.5 | 75 | 950 | 380 | 37.5 | 5 |
| ae | ||||||||||||||||||||
| Depth of cut | ap |
General-purpose conditions
I
| Work Material | Carbo Mild st AISI 1 AISI 1 | n steel, eel 045, AIS 010 | Alloy st I 4140, | eel, ASTM A | 36, | Pre-ha Carbo Alloy t AISI P SKT | rdened n steel, ool steel 21, AISI | steel, Alloy st P20, A | eel, ISI 4340 | , SKD, | Auste Marte Titaniu AISI 3 | nitic, Fer nsitic sta m alloy 04, AISI | ritic an inless s 316, Ti | d teel, -6Al-4V | Harde Cobal AISI 6 15-5P | ned stai y chromi 30, AISI H,17-4P | nless s um all 631 H | teel, oy | ||
| DC (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Depth of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Depth of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Depth of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table fee (mm/min | d ) Depth of cut ap (mm) | Depth of cut ae (mm) |
| 1 | 120 | 38000 | 1000 | 1.5 | 0.3 | 100 | 32000 | 560 | 1.5 | 0.3 | 80 | 25000 | 400 | 0.75 | 0.1 | 70 | 22000 | 390 | 1.5 | 0.2 |
| 2 | 120 | 19000 | 1300 | 3 | 0.6 | 100 | 16000 | 630 | 3 | 0.6 | 80 | 13000 | 450 | 1.5 | 0.2 | 70 | 11000 | 440 | 3 | 0.4 |
| 3 | 120 | 13000 | 1400 | 4.5 | 0.9 | 100 | 11000 | 700 | 4.5 | 0.9 | 80 | 8500 | 450 | 2.2 | 0.3 | 70 | 7400 | 470 | 4.5 | 0.6 |
| 4 | 120 | 9500 | 1400 | 6 | 1.2 | 100 | 8000 | 700 | 6 | 1.2 | 80 | 6400 | 470 | 3 | 0.6 | 70 | 5600 | 490 | 6 | 0.8 |
| 5 | 120 | 7600 | 1400 | 7.5 | 1.5 | 100 | 6400 | 710 | 7.5 | 1.5 | 80 | 5100 | 470 | 4.5 | 0.9 | 70 | 4500 | 500 | 7.5 | 1 |
| 6 | 120 | 6400 | 1400 | 9 | 1.8 | 100 | 5300 | 710 | 9 | 1.8 | 80 | 4200 | 580 | 6 | 1.2 | 70 | 3700 | 500 | 9 | 1.2 |
| 8 | 120 | 4800 | 1300 | 12 | 2.4 | 100 | 4000 | 740 | 12 | 2.4 | 80 | 3200 | 630 | 7.5 | 1.5 | 70 | 2800 | 520 | 12 | 1.6 |
| 10 | 120 | 3800 | 1200 | 15 | 3 | 100 | 3200 | 680 | 15 | 3 | 80 | 2500 | 660 | 9 | 1.8 | 70 | 2200 | 460 | 15 | 2 |
| 12 | 120 | 3200 | 1000 | 18 | 3.6 | 100 | 2700 | 640 | 18 | 3.6 | 80 | 2100 | 610 | 12 | 2.4 | 70 | 1900 | 450 | 18 | 2.4 |
| 16 | 120 | 2400 | 860 | 24 | 4.8 | 100 | 2000 | 530 | 24 | 4.8 | 80 | 1600 | 510 | 15 | 3 | 70 | 1400 | 370 | 24 | 3.2 |
| 20 | 120 | 1900 | 680 | 30 | 6 | 100 | 1600 | 420 | 30 | 6 | 80 | 1300 | 410 | 18 | 3.6 | 70 | 1100 | 290 | 30 | 4 |
| 25 | 120 | 1500 | 390 | 37.5 | 7.5 | 100 | 1300 | 340 | 37.5 | 7.5 | 80 | 1000 | 210 | 24 | 4.8 | 70 | 890 | 230 | 37.5 | 5 |
| ae | ||||||||||||||||||||
| Depth of cut | ap |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work.
I142 Note 4) When the depth of cut is smaller than shown the revolution and feed rate can be increased.
