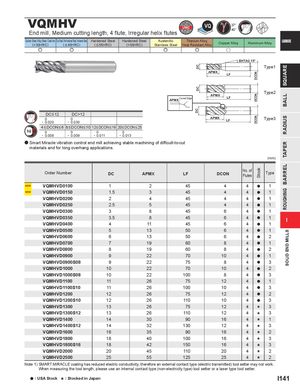

VQMHV 37° 40° End mill, Medium cutting length, 4 flute, Irregular helix flutes Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy, Copper Alloy Aluminum Alloy CARBIDE (<30HRC) ( < 45HRC) ( < 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy e e e e u BHTA2 15° Type1 DC SQUARE APMX DCON LF DC Type2 APMX BALL DCON Curved Edge LF APMX DC DC< 12 DC>12 RADIUS DCON 0 0 APMX LF Type3 - 0.020 - 0.030 4 < DCON< 6 8< DCON< 10 12< DCON< 16 20< DCON< 25 0 0 0 0 - 0.008 - 0.009 - 0.011 - 0.013 a Smart Miracle vibration control end mill achieving stable machining of difficult-to-cut TAPER materials and for long overhang applications. (mm) ROUGHING BARREL Stock No. of Order Number DC APMX LF DCON Type Flutes VQMHVD0100 1 2 45 4 4 a 1 VQMHVD0150 1.5 3 45 4 4 a 1 VQMHVD0200 2 4 45 4 4 a 1 VQMHVD0250 2.5 5 45 4 4 a 1 VQMHVD0300 3 8 45 6 4 a 1 VQMHVD0350 3.5 8 45 6 4 a 1 I VQMHVD0400 4 11 45 6 4 a 1 VQMHVD0500 5 13 50 6 4 a 1 SOLID END MILLS VQMHVD0600 6 13 50 6 4 a 2 VQMHVD0700 7 19 60 8 4 a 1 VQMHVD0800 8 19 60 8 4 a 2 VQMHVD0900 9 22 70 10 4 a 1 VQMHVD0900S08 9 22 75 8 4 a 3 VQMHVD1000 10 22 70 10 4 a 2 VQMHVD1000S08 10 22 100 8 4 a 3 VQMHVD1100 11 26 75 12 4 a 1 VQMHVD1100S10 11 26 100 10 4 a 3 VQMHVD1200 12 26 75 12 4 a 2 VQMHVD1200S10 12 26 110 10 4 a 3 VQMHVD1300 13 26 75 12 4 s 3 VQMHVD1300S12 13 26 110 12 4 s 3 VQMHVD1400 14 30 90 16 4 s 1 VQMHVD1400S12 14 32 130 12 4 s 3 VQMHVD1600 16 35 90 16 4 s 2 VQMHVD1800 18 40 100 16 4 s 3 VQMHVD1800S16 18 42 150 16 4 s 3 VQMHVD2000 20 45 110 20 4 s 2 VQMHVD2500 25 55 125 25 4 s 2 Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter. a : USA Stock s : Stocked in Japan I141
