CARBIDE

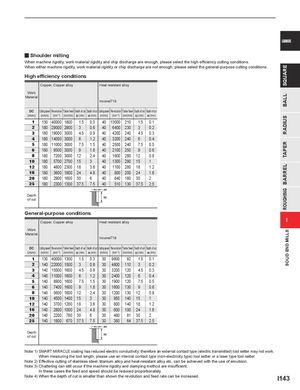

y Shoulder milling

When machine rigidity, work material rigidity and chip discharge are enough, please select the high efficiency cutting conditions. When either machine rigidity, work material rigidity or chip discharge are not enough, please select the general-purpose cutting conditions.

High efficiency conditions

Work Material	Coppe	r, Coppe	r alloy			Heat r Incone	esistant l718	alloy
DC	Cutting speed	Revolution	Table feed	Depth of cut	Depth of cut	Cutting speed	Revolution	Table feed	Depth of cut	Depth of cut
(mm)	(m/min)	(min-1)	(mm/min)	ap (mm)	ae (mm)	(m/min)	(min-1)	(mm/min)	ap (mm)	ae (mm)
1	130	40000	1800	1.5	0.3	40	13000	210	1.5	0.1
2	180	29000	2900	3	0.6	40	6400	230	3	0.2
3	180	19000	3000	4.5	0.9	40	4200	240	4.5	0.3
4	180	14000	3000	6	1.2	40	3200	240	6	0.4
5	180	11000	3000	7.5	1.5	40	2500	240	7.5	0.5
6	180	9500	3000	9	1.8	40	2100	250	9	0.6
8	180	7200	3000	12	2.4	40	1600	260	12	0.8
10	180	5700	2700	15	3	40	1300	290	15	1
12	180	4800	2300	18	3.6	40	1100	280	18	1.2
16	180	3600	1900	24	4.8	40	800	200	24	1.6
20	180	2900	1600	30	6	40	640	160	30	2
25	180	2300	1300	37.5	7.5	40	510	130	37.5	2.5
						ae
Depth of cut						ap

General-purpose conditions

I

Work Material	Coppe	r, Coppe	r alloy			Heat r Incone	esistant l718	alloy
DC	Cutting speed	Revolution	Table feed	Depth of cut	Depth of cut	Cutting speed	Revolution	Table feed	Depth of cut	Depth of cut
(mm)	(m/min)	(min-1)	(mm/min)	ap (mm)	ae (mm)	(m/min)	(min-1)	(mm/min)	ap (mm)	ae (mm)
1	130	40000	1300	1.5	0.3	30	9600	92	1.5	0.1
2	140	22000	1500	3	0.6	30	4800	110	3	0.2
3	140	15000	1600	4.5	0.9	30	3200	120	4.5	0.3
4	140	11000	1600	6	1.2	30	2400	120	6	0.4
5	140	8900	1600	7.5	1.5	30	1900	120	7.5	0.5
6	140	7400	1600	9	1.8	30	1600	130	9	0.6
8	140	5600	1600	12	2.4	30	1200	130	12	0.8
10	140	4500	1400	15	3	30	950	140	15	1
12	140	3700	1200	18	3.6	30	800	140	18	1.2
16	140	2800	1000	24	4.8	30	600	100	24	1.6
20	140	2200	780	30	6	30	480	81	30	2
25	140	1800	670	37.5	7.5	30	380	64	37.5	2.5
						ae
Depth of cut						ap

Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work.

Note 4) When the depth of cut is smaller than shown the revolution and feed rate can be increased. I143
