CARBIDE

y Drilling

Work Material	Carbon AISI 10	steel 35, AI	(─30HR SI 1050	C) , ASTM	283			Alloy s AISI H	teel, Pr 13, AIS	e-hard I 4140,	ened steel AISI P21			Austeni AISI 30	tic stai 4, AISI	nless s 306, A	teel, Tit ISI 316	anium L, Ti-6A	alloy l-4V etc	.
DC	Hi	gh spe cutting	ed	Gener c	al purp utting	ose	Hole Depth	Hi	gh spee cutting	d	General pur cutting	pose	Hole Depth	Hig c	h spe utting	ed	Gene	ral pur cutting	pose	Hole Depth
(inch)	Revolution	Table feed	Step	Revolution T	able feed	Step	ap	Revolution	Table feed	Step	Revolution Table feed	Step	ap	Revolution T	able feed	Step	Revolution	Table feed	Step	ap
	(min-1)	(IPM)	(inch)	(min-1)	(IPM)	(inch)	(inch)	(min-1)	(IPM)	(inch)	(min-1) (IPM)	(inch)	(inch)	(min-1)	(IPM)	(inch)	(min-1)	(IPM)	(inch)	(inch)
1/16	18000	12.8	.013	18000	12.6	.006	.031	12000	5.2	.013	12000 5.2	.006	.031	12000	3.3	.004	12000	3.3	.002	.031
5/64	16000	18.9	.020	16000	18.9	.006	.078	11000	7.8	.016	11000 7.8	.006	.078	9600	3.5	.004	9600	3.5	.002	.039
3/32	13000	20.5	.023	13000	20.5	.010	.094	9400	8.8	.019	9400 8.8	.010	.094	8000	3.5	.006	8000	3.5	.002	.047
7/64	11000	21.7	.033	11000	21.7	.010	.11	8000	9.4	.022	8000 9.4	.010	.11	6900	3.5	.008	6900	3.5	.002	.055
1/8	10000	27.6	.044	10000	27.6	.012	.13	7000	11.0	.025	7000 11.0	.012	.13	6000	4.0	.008	6000	4.0	.004	.063
5/32	8000	31.5	.078	8000	31.5	.012	.16	5600	13.2	.031	5600 13.2	.012	.16	4800	3.8	.016	4800	3.8	.004	.078
3/16	6700	34.3	.094	6700	34.3	.016	.19	4700	15.0	.038	4700 15.0	.016	.19	4000	3.8	.020	4000	3.8	.008	.094
1/4	5000	35.4	.13	5000	35.4	.024	.25	3500	16.5	.050	3500 16.5	.024	.25	3000	3.5	.024	3000	3.5	.012	.13
5/16	4000	28.3	.16	4000	28.3	.028	.31	2800	13.2	.063	2800 13.2	.028	.31	2400	2.8	.024	2400	2.8	.012	.16
11/32	3600	25.5	.17	3600	25.5	.028	.34	2600	12.3	.069	2600 12.3	.028	.34	2200	2.6	.024	2200	2.6	.012	.17
3/8	3300	23.4	.19	3300	23.4	.030	.38	2300	11.0	.094	2300 11.0	.030	.38	2000	2.3	.024	2000	2.3	.012	.19
1/2	2500	17.7	.20	2500	17.7	.030	.50	1800	8.5	.13	1800 8.5	.030	.50	1500	2.0	.024	1500	2.0	.012	.25
Hole											a
depth											p
Work	Precipit Co-Cr-	ation h Mo allo	ardenin y	g marten	sitic sta	inless s	teel,	Coppe	r, Copp	er alloy
Material	ASTM 17-4PH	S 1740 , 15-5	0, AST PH etc.	M S 177	00,
	Hi	gh spe	ed	Gener	al purp	ose	Hole	Hi	gh spee	d	General pur	pose	Hole
DC		cutting		c	utting		Depth		cutting		cutting		Depth
(inch)	Revolution (min-1)	Table feed (IPM)	Step (inch)	Revolution (min-1) T	able feed (IPM)	Step (inch)	ap (inch)	Revolution (min-1)	Table feed (IPM)	Step (inch)	Revolution (min-1) Table feed (IPM)	Step (inch)	ap (inch)
1/16	7000	2.0	.004	7000	2.0	.002	.031	22000	15.6	.013	22000 15.6	.006	.031
5/64	6400	2.4	.004	6400	2.4	.002	.039	19000	22.4	.020	19000 22.4	.006	.039
3/32	5300	2.4	.006	5300	2.4	.002	.047	16000	25.2	.023	16000 25.2	.010	.047
7/64	4600	2.4	.008	4600	2.4	.002	.055	14000	27.6	.033	14000 27.6	.010	.055
1/8	4000	2.8	.008	4000	2.8	.004	.063	12000	33.1	.044	12000 33.1	.012	.063
5/32	3200	2.4	.016	3200	2.4	.004	.078	9600	37.8	.078	9600 37.8	.012	.078
3/16	2700	2.4	.020	2700	2.4	.008	.094	8000	39.4	.094	8000 39.4	.016	.094
1/4	2000	2.4	.024	2000	2.4	.012	.13	6000	43.3	.130	6000 43.3	.024	.13
5/16	1600	2.0	.024	1600	2.0	.012	.16	4800	33.9	.160	4800 33.9	.028	.16
11/32	1500	1.8	.024	1500	1.8	.012	.17	4400	31.1	.17	4400 31.1	.028	.17
3/8	1300	1.5	.024	1300	1.5	.012	.19	4000	28.3	.19	4000 28.3	.030	.19
1/2	1000	1.2	.024	1000	1.2	.012	.25	3000	21.3	.20	3000 21.3	.030	.25
Hole
depth								a	p

Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. Note 2) Effective cutting of stainless steel, and titanium alloy can be achieved with the use of water-soluble cutting fluid. Note 4) Vibration can still occur if the machine rigidity and clamping method are insufficient. In these cases the feed and speed should be reduced proportionately. I133

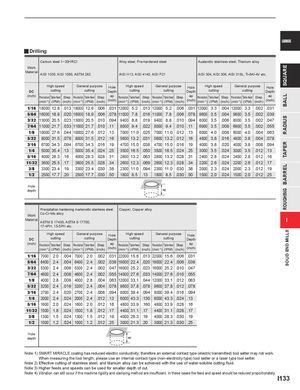

Общий каталог Mitsubishi 2020 - 2021 - страница 892
