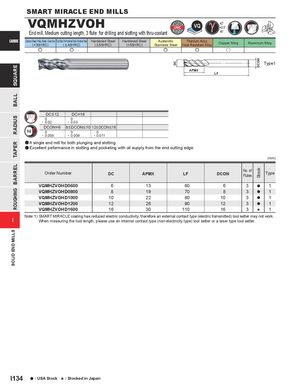

SMART MIRACLE END MILLS VQMHZVOH 42° 43.5° End mill, Medium cutting length, 3 flute for drilling and slotting with thru-coolant 45° CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy, Copper Alloy Aluminum Alloy (<30HRC) ( < 45HRC) ( < 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy e e e e u DCON Type1 DC SQUARE APMX LF BALL DC< 12 DC=16 RADIUS 0 0 - 0.02 - 0.03 DCON=6 8< DCON< 10 12< DCON< 16 0 0 0 - 0.008 - 0.009 - 0.011 a A single end mill for both plunging and slotting. TAPER a Excellent peformance in slotting and pocketing with oil supply from the end cutting edge. (mm) ROUGHING BARREL No. of Stock Order Number DC APMX LF DCON Type Flutes VQMHZVOHD0600 6 13 60 6 3 a 1 VQMHZVOHD0800 8 19 70 8 3 a 1 VQMHZVOHD1000 10 22 80 10 3 a 1 VQMHZVOHD1200 12 26 90 12 3 a 1 VQMHZVOHD1600 16 30 110 16 3 s 1 Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. I When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter. SOLID END MILLS I134 a : USA Stock s : Stocked in Japan
