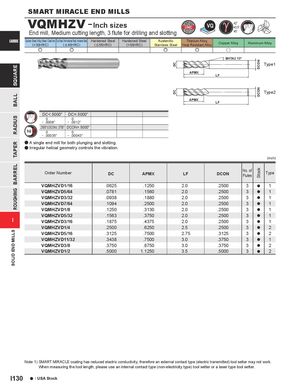

SMART MIRACLE END MILLS VQMHZV - Inch sizes 42° 43.5° 45° End mill, Medium cutting length, 3 flute for drilling and slotting CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy, Copper Alloy Aluminum Alloy (<30HRC) ( < 45HRC) ( < 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy e e e e u BHTA2 15° DCON Type1 DC SQUARE APMX LF DCON Type2 DC BALL APMX LF DC<.5000" DC=.5000" RADIUS 0 0 - .0008" - .0012" .2500"< DCON< .3750" DCON=.5000" 0 0 - .00035" - .00043" a A single end mill for both plunging and slotting. TAPER a Irregular helical geometry controls the vibration. (inch) ROUGHING BARREL Stock No. of Order Number DC APMX LF DCON Type Flutes VQMHZVD1/16 .0625 .1250 2.0 .2500 3 a 1 VQMHZVD5/64 .0781 .1560 2.0 .2500 3 a 1 VQMHZVD3/32 .0938 .1880 2.0 .2500 3 a 1 VQMHZVD7/64 .1094 .2500 2.0 .2500 3 a 1 VQMHZVD1/8 .1250 .3130 2.0 .2500 3 a 1 VQMHZVD5/32 .1563 .3750 2.0 .2500 3 a 1 I VQMHZVD3/16 .1875 .4375 2.0 .2500 3 a 1 VQMHZVD1/4 .2500 .6250 2.5 .2500 3 a 2 SOLID END MILLS VQMHZVD5/16 .3125 .7500 2.75 .3125 3 a 2 VQMHZVD11/32 .3438 .7500 3.0 .3750 3 a 1 VQMHZVD3/8 .3750 .8750 3.0 .3750 3 a 2 VQMHZVD1/2 .5000 1.1250 3.5 .5000 3 a 2 Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter. I130 a : USA Stock
