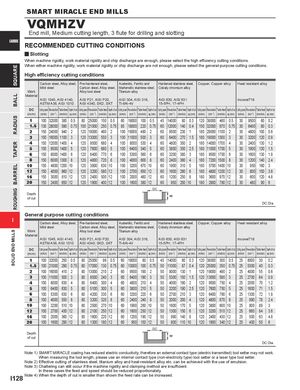

CARBIDE RECOMMENDED CUTTING CONDITIONS

y Slotting

When machine rigidity, work material rigidity and chip discharge are enough, please select the high efficiency cutting conditions. When either machine rigidity, work material rigidity or chip discharge are not enough, please select the general-purpose cutting conditions.

High efficiency cutting conditions

Work Material	Carbo Mild s	n stee teel	l, Alloy steel,	Pre-ha Carbo Alloy t	rdene n steel ool ste	d steel, , Alloy steel, el	Austen Marten Titaniu	itic, Fer sitic sta m alloy	ritic and inless s	teel,	Harde Cobal	ned sta y chrom	inless steel, ium alloy	Coppe	r, Cop	per alloy	Heat	resista	nt allo	y
	AISI	1045, A	ISI 4140,	AISI P	21, AI	SI P20,	AISI 3	04, AIS	I 316,		AISI	630, AI	SI 631				Incon	el718
	AST	M A36,	AISI 1010	AISI 4	340, S	KD, SKT	Ti-6Al-	4V			15-5P	H, 17-	4PH
DC	Cutting speed	Revolution	Table feed Depth of cut	Cutting speed	Revolution	Table feed Depth of cut	Cutting speed R	evolution T	able feed D	epth of cut	Cutting speed	Revolution	Table feed Depth of cut	Cutting speed	Revolution	Table feed Depth of cut	Cutting speed	Revolution	Table feed	Depth of cut
(mm)	(m/min)	(min-1)	(mm/min) ap (mm)	(m/min)	(min-1)	(mm/min) ap (mm)	(m/min)	(min-1) (	mm/min)	ap (mm)	(m/min)	(min-1)	(mm/min) ap (mm)	(m/min)	(min-1)	(mm/min) ap (mm)	(m/min)	(min-1)	(mm/min)	ap (mm)
1	100	32000	380 0.5	80	25000	150 0.5	60 1	9000	100	0.5	45	14000	80 0.3	120	38000	460 0.5	30	9500	60	0.2
1.5	130	28000	590 0.75	100	21000	250 0.75	85 1	8000	220	0.75	60	12000	140 0.4	150	32000	670 0.75	30	6400	80	0.3
2	150	24000	940 2	120	19000	460 2	100 1	6000	480	2	60	9500	230 1	180	29000	1100 2	30	4800	100	0.6
3	150	16000	1100 3	120	13000	550 3	100 1	1000	500	3	60	6400	270 1.5	180	19000	1300 3	30	3200	120	0.9
4	150	12000	1400 4	120	9500	680 4	100	8000	530	4	60	4800	350 2	180	14000	1700 4	30	2400	130	1.2
5	150	9500	1400 5	120	7600	680 5	100	6400	540	5	60	3800	350 2.5	180	11000	1700 5	30	1900	130	1.5
6	150	8000	1400 6	120	6400	770 6	100	5300	560	6	60	3200	380 3	180	9500	1700 6	30	1600	130	1.8
8	150	6000	1300 8	120	4800	720 8	100	4000	600	8	60	2400	360 4	180	7200	1500 8	30	1200	140	2.4
10	150	4800	1200 10	120	3800	630 10	100	3200	670 1	0	60	1900	310 5	180	5700	1400 10	30	950	160	3
12	150	4000	960 12	120	3200	580 12	100	2700	650 1	2	60	1600	290 6	180	4800	1200 12	30	800	150	3.6
16	150	3000	810 12	120	2400	500 12	100	2000	480 1	2	60	1200	250 8	180	3600	970 12	30	600	120	4.8
20	150	2400	650 12	120	1900	400 12	100	1600	380 1	2	60	950	200 10	180	2900	780 12	30	480	90	6
Depth of cut										DC		ap
Gener	al p	urpo	se cuttin	g co	ndit	ions													D	C:Dia.
Work Material	Carbo Mild s	n stee teel	l, Alloy steel,	Pre-ha Carbo Alloy t	rdene n steel ool ste	d steel, , Alloy steel, el	Austen Marten Titaniu	itic, Fer sitic sta m alloy	ritic and inless s	teel,	Harde Cobal	ned sta y chrom	inless steel, ium alloy	Coppe	r, Cop	per alloy	Heat	resista	nt allo	y
	AISI	1045, A	ISI 4140,	AISI P	21, AI	SI P20,	AISI 3	04, AIS	I 316,		AISI	630, AI	SI 631				Incon	el718
	AST	M A36,	AISI 1010	AISI 4	340, S	KD, SKT	Ti-6Al-	4V			15-5P	H, 17-	4PH
DC	Cutting speed	Revolution	Table feed Depth of cut	Cutting speed	Revolution	Table feed Depth of cut	Cutting speed R	evolution T	able feed D	epth of cut	Cutting speed	Revolution	Table feed Depth of cut	Cutting speed	Revolution	Table feed Depth of cut	Cutting speed	Revolution	Table feed	Depth of cut
(mm)	(m/min)	(min-1)	(mm/min) ap (mm)	(m/min)	(min-1)	(mm/min) ap (mm)	(m/min)	(min-1) (	mm/min)	ap (mm)	(m/min)	(min-1)	(mm/min) ap (mm)	(m/min)	(min-1)	(mm/min) ap (mm)	(m/min)	(min-1)	(mm/min)	ap (mm)
1	100	32000	250 0.5	80	25000	99 0.5	60 1	9000	80	0.5	45	14000	60 0.3	120	38000	300 0.5	25	8000	30	0.2
1.5	100	21000	290 0.75	80	17000	130 0.75	60 1	3000	100	0.75	50	11000	87 0.4	120	25000	350 0.75	25	5300	40	0.3
2	100	16000	410 2	80	13000	210 2	60	9500	190	2	50	8000	130 1	120	19000	490 2	25	4000	55	0.6
3	100	11000	500 3	80	8500	240 3	60	6400	190	3	50	5300	150 1.5	120	13000	590 3	25	2700	64	0.9
4	100	8000	630 4	80	6400	300 4	60	4800	210	4	50	4000	190 2	120	9500	750 4	25	2000	70	1.2
5	100	6400	630 5	80	5100	300 5	60	3800	210	5	50	3200	190 2.5	120	7600	750 5	25	1600	71	1.5
6	100	5300	630 6	80	4200	330 6	60	3200	220	6	50	2700	210 3	120	6400	760 6	25	1300	72	1.8
8	100	4000	550 8	80	3200	320 8	60	2400	240	8	50	2000	200 4	120	4800	670 8	25	990	78	2.4
10	100	3200	510 10	80	2500	270 10	60	1900	260 1	0	50	1600	170 5	120	3800	600 10	25	800	89	3
12	100	2700	430 12	80	2100	250 12	60	1600	250 1	2	50	1300	150 6	120	3200	510 12	25	660	84	3.6
16	100	2000	360 12	80	1600	220 12	60	1200	190 1	2	50	990	140 8	120	2400	430 12	25	500	63	4.8
20	100	1600	290 12	80	1300	180 12	60	950	150 1	2	50	800	110 10	120	1900	340 12	25	400	50	6
										DC
Depth
of cut												ap
																			D	C:Dia.

I

Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work.
