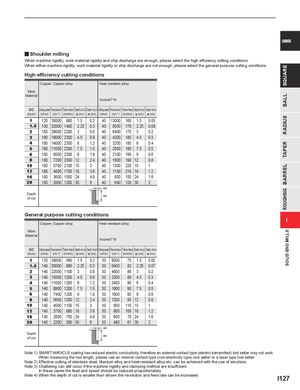

Общий каталог Mitsubishi 2020 - 2021 - страница 886
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
CARBIDE
y Shoulder milling
When machine rigidity, work material rigidity and chip discharge are enough, please select the high efficiency cutting conditions. When either machine rigidity, work material rigidity or chip discharge are not enough, please select the general-purpose cutting conditions.
High efficiency cutting conditions
| Work Material | Coppe | r, Coppe | r alloy | Heat r Incone | esistant l718 | alloy | ||||
| DC (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Depth of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Depth of cut ae (mm) |
| 1 | 120 | 38000 | 860 | 1.5 | 0.2 | 40 | 13000 | 160 | 1.5 | 0.05 |
| 1.5 | 150 | 32000 | 1400 | 2.25 | 0.3 | 40 | 8500 | 170 | 2.25 | 0.08 |
| 2 | 180 | 29000 | 2200 | 3 | 0.6 | 40 | 6400 | 170 | 3 | 0.2 |
| 3 | 180 | 19000 | 2300 | 4.5 | 0.9 | 40 | 4200 | 180 | 4.5 | 0.3 |
| 4 | 180 | 14000 | 2300 | 6 | 1.2 | 40 | 3200 | 180 | 6 | 0.4 |
| 5 | 180 | 11000 | 2300 | 7.5 | 1.5 | 40 | 2500 | 180 | 7.5 | 0.5 |
| 6 | 180 | 9500 | 2300 | 9 | 1.8 | 40 | 2100 | 190 | 9 | 0.6 |
| 8 | 180 | 7200 | 2300 | 12 | 2.4 | 40 | 1600 | 190 | 12 | 0.8 |
| 10 | 180 | 5700 | 2100 | 15 | 3 | 40 | 1300 | 220 | 15 | 1 |
| 12 | 180 | 4800 | 1700 | 18 | 3.6 | 40 | 1100 | 210 | 18 | 1.2 |
| 16 | 180 | 3600 | 1500 | 24 | 4.8 | 40 | 800 | 150 | 24 | 1.6 |
| 20 | 180 | 2900 | 1200 | 30 | 6 | 40 | 640 | 120 | 30 | 2 |
| ae | ||||||||||
| Depth of cut | ap |
General purpose cutting conditions
I
| Work Material | Coppe | r, Coppe | r alloy | Heat re Incone | sistant l718 | alloy | ||||
| DC (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Depth of cut ae (mm) | Cutting speed (m/min) | Revolution (min-1) | Table feed (mm/min) | Depth of cut ap (mm) | Depth of cut ae (mm) |
| 1 | 120 | 38000 | 560 | 1.5 | 0.2 | 30 | 9500 | 75 | 1.5 | 0.05 |
| 1.5 | 140 | 30000 | 890 | 2.25 | 0.3 | 30 | 6400 | 82 | 2.25 | 0.07 |
| 2 | 140 | 22000 | 1100 | 3 | 0.6 | 30 | 4800 | 86 | 3 | 0.2 |
| 3 | 140 | 15000 | 1200 | 4.5 | 0.9 | 30 | 3200 | 89 | 4.5 | 0.3 |
| 4 | 140 | 11000 | 1200 | 6 | 1.2 | 30 | 2400 | 90 | 6 | 0.4 |
| 5 | 140 | 8900 | 1200 | 7.5 | 1.5 | 30 | 1900 | 90 | 7.5 | 0.5 |
| 6 | 140 | 7400 | 1200 | 9 | 1.8 | 30 | 1600 | 95 | 9 | 0.6 |
| 8 | 140 | 5600 | 1200 | 12 | 2.4 | 30 | 1200 | 95 | 12 | 0.8 |
| 10 | 140 | 4500 | 1100 | 15 | 3 | 30 | 950 | 110 | 15 | 1 |
| 12 | 140 | 3700 | 880 | 18 | 3.6 | 30 | 800 | 100 | 18 | 1.2 |
| 16 | 140 | 2800 | 750 | 24 | 4.8 | 30 | 600 | 76 | 24 | 1.6 |
| 20 | 140 | 2200 | 590 | 30 | 6 | 30 | 480 | 61 | 30 | 2 |
| Depth of cut | ae ap |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work.
Note 4) When the depth of cut is smaller than shown the revolution and feed rate can be increased. I127
