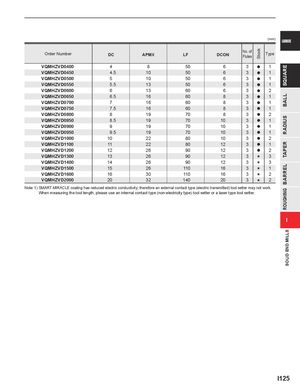

(mm) CARBIDE
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VQMHZVD0400 | 4 | 8 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0450 | 4.5 | 10 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0500 | 5 | 10 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0550 | 5.5 | 13 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0600 | 6 | 13 | 60 | 6 | 3 | a | 2 |
| VQMHZVD0650 | 6.5 | 16 | 60 | 8 | 3 | a | 1 |
| VQMHZVD0700 | 7 | 16 | 60 | 8 | 3 | a | 1 |
| VQMHZVD0750 | 7.5 | 16 | 60 | 8 | 3 | a | 1 |
| VQMHZVD0800 | 8 | 19 | 70 | 8 | 3 | a | 2 |
| VQMHZVD0850 | 8.5 | 19 | 70 | 10 | 3 | a | 1 |
| VQMHZVD0900 | 9 | 19 | 70 | 10 | 3 | a | 1 |
| VQMHZVD0950 | 9.5 | 19 | 70 | 10 | 3 | a | 1 |
| VQMHZVD1000 | 10 | 22 | 80 | 10 | 3 | a | 2 |
| VQMHZVD1100 | 11 | 22 | 80 | 12 | 3 | a | 1 |
| VQMHZVD1200 | 12 | 26 | 90 | 12 | 3 | a | 2 |
| VQMHZVD1300 | 13 | 26 | 90 | 12 | 3 | s | 3 |
| VQMHZVD1400 | 14 | 26 | 90 | 12 | 3 | s | 3 |
| VQMHZVD1500 | 15 | 26 | 110 | 16 | 3 | s | 1 |
| VQMHZVD1600 | 16 | 30 | 110 | 16 | 3 | s | 2 |
| VQMHZVD2000 | 20 | 32 | 140 | 20 | 3 | s | 2 |
Note 1) SMART MIRACLE coating has reduced electric conductivity; therefore an external contact type (electric transmitted) tool setter may not work. When measuring the tool length, please use an internal contact type (non-electricity type) tool setter or a laser type tool setter.
