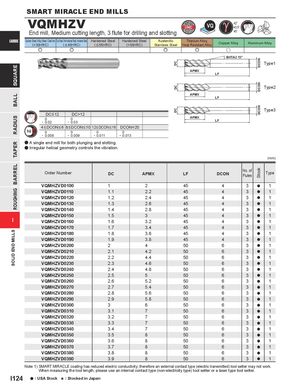

End mill, Medium cutting length, 3 flute for drilling and slotting
| CARBIDE | Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel | Hardened Steel | Hardened Steel | Austenitic | ||||
| (<30HRC) | ( | 45HRC) | ( | 55HRC) | (>55HRC) | Stainless Steel |
e e e
| DC | 12 | DC>12 |
| 0 | 0 | |
| - 0.02 | - 0.03 |
| 4 | DCON | 6 8 | DCON | 10 12 | DCON | 16 DCON=20 | ||
| 0 | 0 | 0 | 0 | |||||
| - 0.008 | - 0.009 | - 0.011 | - 0.013 |
a A single end mill for both plunging and slotting. a Irregular helical geometry controls the vibration.
45° Titanium Alloy, Heat Resistant Alloy Copper Alloy e u BHTA2 15°
APMX LF
APMX LF
APMX LF
Aluminum Alloy
Type1
Type2
Type3
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VQMHZVD0100 | 1 | 2 | 45 | 4 | 3 | a | 1 |
| VQMHZVD0110 | 1.1 | 2.2 | 45 | 4 | 3 | a | 1 |
| VQMHZVD0120 | 1.2 | 2.4 | 45 | 4 | 3 | a | 1 |
| VQMHZVD0130 | 1.3 | 2.6 | 45 | 4 | 3 | a | 1 |
| VQMHZVD0140 | 1.4 | 2.8 | 45 | 4 | 3 | a | 1 |
| VQMHZVD0150 | 1.5 | 3 | 45 | 4 | 3 | a | 1 |
| VQMHZVD0160 | 1.6 | 3.2 | 45 | 4 | 3 | a | 1 |
| VQMHZVD0170 | 1.7 | 3.4 | 45 | 4 | 3 | a | 1 |
| VQMHZVD0180 | 1.8 | 3.6 | 45 | 4 | 3 | a | 1 |
| VQMHZVD0190 | 1.9 | 3.8 | 45 | 4 | 3 | a | 1 |
| VQMHZVD0200 | 2 | 4 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0210 | 2.1 | 4.2 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0220 | 2.2 | 4.4 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0230 | 2.3 | 4.6 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0240 | 2.4 | 4.8 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0250 | 2.5 | 5 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0260 | 2.6 | 5.2 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0270 | 2.7 | 5.4 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0280 | 2.8 | 5.6 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0290 | 2.9 | 5.8 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0300 | 3 | 6 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0310 | 3.1 | 7 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0320 | 3.2 | 7 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0330 | 3.3 | 7 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0340 | 3.4 | 7 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0350 | 3.5 | 8 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0360 | 3.6 | 8 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0370 | 3.7 | 8 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0380 | 3.8 | 8 | 50 | 6 | 3 | a | 1 |
| VQMHZVD0390 | 3.9 | 8 | 50 | 6 | 3 | a | 1 |
