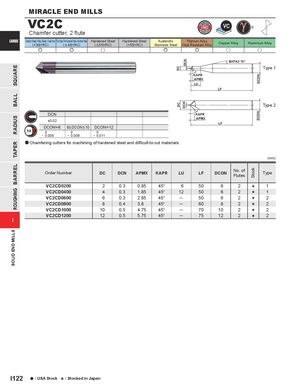

VC2C
Chamfer cutter, 2 flute
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
| (<30HRC) | ( | 45HRC) | ( | 55HRC) | (>55HRC) | Stainless Steel | Heat Resistant Alloy | |||
| e | e | u | e | e |
KAPR APMX LU
DCN KAPR ±0.02 APMX
| DCON | 6 | 8< DCON< 10 DCON | 12 | |
| 0 | 0 | 0 | ||
| - 0.008 | - 0.009 | - 0.011 |
a Chamfering cutters for machining of hardened steel and difficult-to-cut materials.
Copper Alloy Aluminum Alloy u u BHTA2 15° Type 1
LF
Type 2
LF
(mm)
| Order Number | DC | DCN | APMX | KAPR | LU | LF | DCON | No. of Flutes | Stock | Type |
| VC2CD0200 | 2 | 0.3 | 0.85 | 45° | 6 | 50 | 6 | 2 | s | 1 |
| VC2CD0400 | 4 | 0.3 | 1.85 | 45° | 12 | 50 | 6 | 2 | s | 1 |
| VC2CD0600 | 6 | 0.3 | 2.85 | 45° | ─ | 50 | 6 | 2 | s | 2 |
| VC2CD0800 | 8 | 0.4 | 3.8 | 45° | ─ | 60 | 8 | 2 | s | 2 |
| VC2CD1000 | 10 | 0.5 | 4.75 | 45° | ─ | 70 | 10 | 2 | s | 2 |
| VC2CD1200 | 12 | 0.5 | 5.75 | 45° | ─ | 75 | 12 | 2 | s | 2 |
