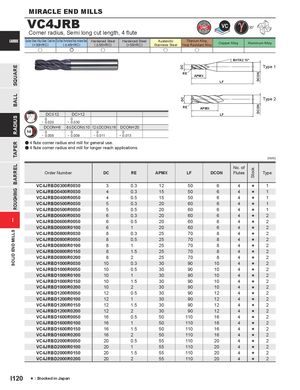

VC4JRB
Corner radius, Semi long cut length, 4 flute
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel
| (<30HRC) | ( | 45HRC) | ( | 55HRC) | (>55HRC) | |
| u | e | u |
| DC | 12 | DC>12 |
| 0 | 0 | |
| - 0.020 | - 0.030 |
| DCON=6 | 8 | DCON | 10 12 | DCON | 16 DCON=20 | ||
| 0 | 0 | 0 | 0 | ||||
| - 0.008 | - 0.009 | - 0.011 | - 0.013 |
a 4 flute corner radius end mill for general use. a 4 flute corner radius end mill for longer reach applications.
Austenitic Stainless Steel u
Titanium Alloy, Heat Resistant Alloy u
RE APMX
RE APMX
30° Copper Alloy Aluminum Alloy
BHTA2 15° Type 1
LF
Type 2 LF
(mm)
| Order Number | DC | RE | APMX | LF | DCON | No. of Flutes | Stock | Type |
| VC4JRBD0300R0030 | 3 | 0.3 | 12 | 50 | 6 | 4 | s | 1 |
| VC4JRBD0400R0030 | 4 | 0.3 | 15 | 50 | 6 | 4 | s | 1 |
| VC4JRBD0400R0050 | 4 | 0.5 | 15 | 50 | 6 | 4 | s | 1 |
| VC4JRBD0500R0030 | 5 | 0.3 | 20 | 60 | 6 | 4 | s | 1 |
| VC4JRBD0500R0050 | 5 | 0.5 | 20 | 60 | 6 | 4 | s | 1 |
| VC4JRBD0600R0030 | 6 | 0.3 | 20 | 60 | 6 | 4 | s | 2 |
| VC4JRBD0600R0050 | 6 | 0.5 | 20 | 60 | 6 | 4 | s | 2 |
| VC4JRBD0600R0100 | 6 | 1 | 20 | 60 | 6 | 4 | s | 2 |
| VC4JRBD0800R0030 | 8 | 0.3 | 25 | 70 | 8 | 4 | s | 2 |
| VC4JRBD0800R0050 | 8 | 0.5 | 25 | 70 | 8 | 4 | s | 2 |
| VC4JRBD0800R0100 | 8 | 1 | 25 | 70 | 8 | 4 | s | 2 |
| VC4JRBD0800R0150 | 8 | 1.5 | 25 | 70 | 8 | 4 | s | 2 |
| VC4JRBD0800R0200 | 8 | 2 | 25 | 70 | 8 | 4 | s | 2 |
| VC4JRBD1000R0030 | 10 | 0.3 | 30 | 90 | 10 | 4 | s | 2 |
| VC4JRBD1000R0050 | 10 | 0.5 | 30 | 90 | 10 | 4 | s | 2 |
| VC4JRBD1000R0100 | 10 | 1 | 30 | 90 | 10 | 4 | s | 2 |
| VC4JRBD1000R0150 | 10 | 1.5 | 30 | 90 | 10 | 4 | s | 2 |
| VC4JRBD1000R0200 | 10 | 2 | 30 | 90 | 10 | 4 | s | 2 |
| VC4JRBD1200R0050 | 12 | 0.5 | 30 | 90 | 12 | 4 | s | 2 |
| VC4JRBD1200R0100 | 12 | 1 | 30 | 90 | 12 | 4 | s | 2 |
| VC4JRBD1200R0150 | 12 | 1.5 | 30 | 90 | 12 | 4 | s | 2 |
| VC4JRBD1200R0200 | 12 | 2 | 30 | 90 | 12 | 4 | s | 2 |
| VC4JRBD1600R0050 | 16 | 0.5 | 50 | 110 | 16 | 4 | s | 2 |
| VC4JRBD1600R0100 | 16 | 1 | 50 | 110 | 16 | 4 | s | 2 |
| VC4JRBD1600R0150 | 16 | 1.5 | 50 | 110 | 16 | 4 | s | 2 |
| VC4JRBD1600R0200 | 16 | 2 | 50 | 110 | 16 | 4 | s | 2 |
| VC4JRBD2000R0050 | 20 | 0.5 | 55 | 110 | 20 | 4 | s | 2 |
| VC4JRBD2000R0100 | 20 | 1 | 55 | 110 | 20 | 4 | s | 2 |
| VC4JRBD2000R0150 | 20 | 1.5 | 55 | 110 | 20 | 4 | s | 2 |
| VC4JRBD2000R0200 | 20 | 2 | 55 | 110 | 20 | 4 | s | 2 |
