CARBIDE

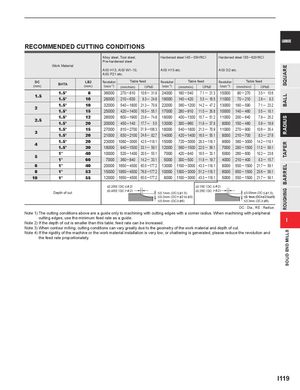

RECOMMENDED CUTTING CONDITIONS
| Work Material | Alloy stee Pre-hard AISI H13 AISI P21 | l, Tool steel, ened steel , AISI W1-10, etc. | Hardene AISI H13 | d steel(45─5 etc. | 5HRC) | Hardene AISI D2 e | d steel(55─6 tc. | 2HRC) | |||
| DC | BHTA | LB2 | Revolution | Table | feed | Revolution | Table | feed | Revolution | Table | feed |
| (mm) | (mm) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | |
| 15 | 1.5° | 6 | 36000 | 270─810 | 10.6─31.9 | 24000 | 180 ─540 | 7.1─21.3 | 15000 | 90 ─270 | 3.5─10.6 |
| . | 1.5° | 10 | 28000 | 210─630 | 8.3─24.8 | 19000 | 140 ─420 | 5.5─16.5 | 11000 | 70 ─210 | 2.8─8.3 |
| 2 | 1.5° | 10 | 32000 | 540─1800 | 21.3─70.9 | 22000 | 360 ─1200 | 14.2─47.2 | 13000 | 180 ─590 | 7.1─23.2 |
| 1.5° | 15 | 25000 | 420─1400 | 16.5─55.1 | 17000 | 280 ─910 | 11.0─35.8 | 10000 | 140 ─460 | 5.5─18.1 | |
| 25 | 1.5° | 12 | 26000 | 600─1900 | 23.6─74.8 | 18000 | 400 ─1300 | 15.7─51.2 | 11000 | 200 ─640 | 7.9─25.2 |
| . | 1.5° | 20 | 20000 | 450─140 | 17.7─5.5 | 13000 | 300 ─960 | 11.8─37.8 | 8000 | 150 ─480 | 5.9─18.9 |
| 3 | 1.5° | 15 | 27000 | 810─2700 | 31.9─106.3 | 18000 | 540 ─1800 | 21.3─70.9 | 11000 | 270 ─900 | 10.6─35.4 |
| 1.5° | 20 | 21000 | 630─2100 | 24.8─82.7 | 14000 | 420 ─1400 | 16.5─55.1 | 8000 | 210 ─700 | 8.3─27.6 | |
| 4 | 1.5° | 20 | 23000 | 1080─3000 | 42.5─118.1 | 15000 | 720 ─3000 | 28.3─118.1 | 9000 | 360 ─3000 | 14.2─118.1 |
| 1.5° | 30 | 18000 | 840─1500 | 33.1─59.1 | 12000 | 560 ─1500 | 22.0─59.1 | 7000 | 280 ─1500 | 11.0─59.1 | |
| 5 | 1° | 40 | 10000 | 520─1400 | 20.5─55.1 | 7000 | 420 ─840 | 16.5─33.1 | 5000 | 260 ─600 | 10.2─23.6 |
| 1° | 60 | 7000 | 360─840 | 14.2─33.1 | 5000 | 300 ─500 | 11.8─19.7 | 4000 | 210 ─400 | 8.3─15.7 | |
| 6 | 1° | 40 | 20000 | 1650─4500 | 65.0─177.2 | 13000 | 1100 ─3000 | 43.3─118.1 | 8000 | 550 ─1500 | 21.7─59.1 |
| 8 | 1° | 53 | 15000 | 1950─4500 | 76.8─177.2 | 10000 | 1300 ─3000 | 51.2─118.1 | 6000 | 650 ─1500 | 25.6─59.1 |
| 10 | 1° | 55 | 12000 | 1650─4500 | 65.0─177.2 | 8000 | 1100 ─3000 | 43.3─118.1 | 5000 | 550 ─1500 | 21.7─59.1 |
| Depth of cut | ≤0.4RE ≤0.2RE | ( ( >&2) DC DC | 0.1mm (D | C | ( ( >& ≤0.2RE DC DC ≤0.1RE | 2) 2) | 0.05m | m (DC | |||
| 0.2mm (D 0.5mm (D | =&2 to&5 >&6) C ) C | 0.1mm 0.3mm | & & >&6) (DC= 2 to 5) (DC |
DC : Dia., RE : Radius Note 1) The cutting conditions above are a guide only to machining with cutting edges with a corner radius. When machining with peripheral cutting edges, use the minimum feed rate as a guide. I Note 2) If the depth of cut is smaller than this table, feed rate can be increased. Note 3) When contour milling, cutting conditions can vary greatly due to the geometry of the work material and depth of cut. Note 4) If the rigidity of the machine or the work material installation is very low, or chattering is generated, please reduce the revolution and the feed rate proportionately.
