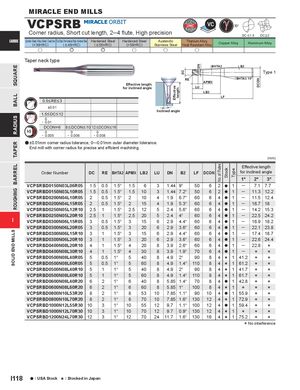

Общий каталог Mitsubishi 2020 - 2021 - страница 877
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
DC 1.5 DC≥ 2
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
(<30HRC) ( 45HRC) ( 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy Copper Alloy Aluminum Alloy
u e e u u u
Taper neck type BHTA2 B2 Type 1 RE BHTA3 15°
Effective length APMX for inclined angle LU LB2 LF 0.5<RE<3 ±0.01 Inclined angle 1.5<DC<12 0 - 0.01
| DCON=6 8 | DCON | 10 12 | DCON | 16 | |
| 0 | 0 | 0 | |||
| - 0.005 | - 0.006 | - 0.008 |
a ±0.01mm corner radius tolerance, 0─-0.01mm outer diameter tolerance. End mill with corner radius for precise and efficient machining. (mm)
| Order Number | DC | RE | BHTA2 | APMX | LB2 | LU | DN | B2 | LF | DCON | of Flutes | tock | e | Effe for in yp | fctive le clined | f ngth angle |
| No. | S | 1° | 2° | 3° | ||||||||||||
| VCPSRBD0150N03L06R05 | 1.5 | 0.5 | 1.5° | 1.5 | 6 | 3 | 1.44 | 9° | 50 | 6 | 2 | a | 1 | ─ | 7.1 | 7.7 |
| VCPSRBD0150N03L10R05 | 1.5 | 0.5 | 1.5° | 1.5 | 10 | 3 | 1.44 | 7.2° | 50 | 6 | 2 | a | 1 | ─ | 11.3 | 12.2 |
| VCPSRBD0200N04L10R05 | 2 | 0.5 | 1.5° | 2 | 10 | 4 | 1.9 | 6.7° | 60 | 6 | 4 | a | 1 | ─ | 11.5 | 12.4 |
| VCPSRBD0200N04L15R05 | 2 | 0.5 | 1.5° | 2 | 15 | 4 | 1.9 | 5.3° | 60 | 6 | 4 | a | 1 | ─ | 16.7 | 18 |
| VCPSRBD0250N05L12R10 | 2.5 | 1 | 1.5° | 2.5 | 12 | 5 | 2.4 | 5.6° | 60 | 6 | 4 | a | 1 | ─ | 14.2 | 15.3 |
| VCPSRBD0250N05L20R10 | 2.5 | 1 | 1.5° | 2.5 | 20 | 5 | 2.4 | 4° | 60 | 6 | 4 | a | 1 | ─ | 22.5 | 24.2 |
| VCPSRBD0300N06L15R05 | 3 | 0.5 | 1.5° | 3 | 15 | 6 | 2.9 | 4.4° | 60 | 6 | 4 | a | 1 | ─ | 16.9 | 18.2 |
| VCPSRBD0300N06L20R05 | 3 | 0.5 | 1.5° | 3 | 20 | 6 | 2.9 | 3.6° | 60 | 6 | 4 | a | 1 | ─ | 22.1 | 23.8 |
| VCPSRBD0300N06L15R10 | 3 | 1 | 1.5° | 3 | 15 | 6 | 2.9 | 4.4° | 60 | 6 | 4 | a | 1 | ─ | 17.4 | 18.7 |
| VCPSRBD0300N06L20R10 | 3 | 1 | 1.5° | 3 | 20 | 6 | 2.9 | 3.6° | 60 | 6 | 4 | a | 1 | ─ | 22.6 | 24.4 |
| VCPSRBD0400N08L20R10 | 4 | 1 | 1.5° | 4 | 20 | 8 | 3.9 | 2.6° | 60 | 6 | 4 | a | 1 | ─ | 22.8 | |
| VCPSRBD0400N08L30R10 | 4 | 1 | 1.5° | 4 | 30 | 8 | 3.9 | 1.9° | 70 | 6 | 4 | a | 1 | ─ | ||
| VCPSRBD0500N08L40R05 | 5 | 0.5 | 1° | 5 | 40 | 8 | 4.9 | 2° | 90 | 8 | 4 | s | 1 | 41.2 | ||
| VCPSRBD0500N08L60R05 | 5 | 0.5 | 1° | 5 | 60 | 8 | 4.9 | 1.4° | 110 | 8 | 4 | s | 1 | 61.2 | ||
| VCPSRBD0500N08L40R10 | 5 | 1 | 1° | 5 | 40 | 8 | 4.9 | 2° | 90 | 8 | 4 | s | 1 | 41.7 | ||
| VCPSRBD0500N08L60R10 | 5 | 1 | 1° | 5 | 60 | 8 | 4.9 | 1.4° | 110 | 8 | 4 | s | 1 | 61.7 | ||
| VCPSRBD0600N08L40R20 | 6 | 2 | 1° | 6 | 40 | 8 | 5.85 | 1.4° | 70 | 8 | 4 | a | 1 | 42.8 | ||
| VCPSRBD0600N08L60R20 | 6 | 2 | 1° | 6 | 60 | 8 | 5.85 | 1° | 100 | 8 | 4 | s | 1 | |||
| VCPSRBD0800N10L53R20 | 8 | 2 | 1° | 8 | 53 | 10 | 7.85 | 1.1° | 90 | 10 | 4 | a | 1 | 55.9 | ||
| VCPSRBD0800N10L70R20 | 8 | 2 | 1° | 8 | 70 | 10 | 7.85 | 1.6° | 130 | 12 | 4 | s | 1 | 72.9 | ||
| VCPSRBD1000N12L55R30 | 10 | 3 | 1° | 10 | 55 | 12 | 9.7 | 1.1° | 100 | 12 | 4 | a | 1 | 59.4 | ||
| VCPSRBD1000N12L70R30 | 10 | 3 | 1° | 10 | 70 | 12 | 9.7 | 0.9° | 130 | 12 | 4 | s | 1 | |||
| VCPSRBD1200N24L70R30 | 12 | 3 | 1° | 12 | 70 | 24 | 11.7 | 1.6° | 130 | 16 | 4 | s | 1 | 75.2 |
VCPSRBD1200N24L70R30 12 3 1° 12 70 24 11.7 1.6° 130 16 4 1 75.2 * *
* No interference
