CARBIDE

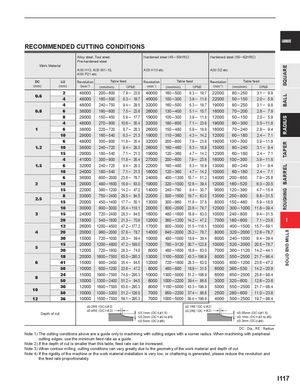

RECOMMENDED CUTTING CONDITIONS
| Work | Material | Alloy steel, Pre-harden AISI H13, A AISI P21 et | Tool steel, ed steel ISI W1-10, c. | Hardened AISI H13 e | steel(45─55HR tc. | C) | Hardened AISI D2 et | steel(55─62HR c. | C) | |
| DC | LU | Revolution | Table | feed | Revolution | Table | feed | Revolution | Table | feed |
| (mm) | (mm) | (min -1) | (mm/min) | (IPM) | (min -1) | (mm/min) | (IPM) | (min -1) | (mm/min) | (IPM) |
| 2 | 48000 | 200─600 | 7.9 ─ 23.6 | 40000 | 160─500 | 6.3 ─ 19.7 | 22000 | 80─250 | 3.1─ 9.8 | |
| 0.6 | 4 | 48000 | 160─500 | 6.3 ─ 19.7 | 40000 | 100─300 | 3.9 ─ 11.8 | 22000 | 50─150 | 2.0─ 5.9 |
| 4 | 48000 | 240─750 | 9.4 ─ 29.5 | 32000 | 160─500 | 6.3 ─ 19.7 | 19000 | 80─250 | 3.1─ 9.8 | |
| 0.8 | 6 | 38000 | 190─600 | 7.5 ─ 23.6 | 26000 | 130─400 | 5.1 ─ 15.7 | 16000 | 70─200 | 2.8─ 7.9 |
| 8 | 29000 | 150─450 | 5.9 ─ 17.7 | 19000 | 100─300 | 3.9 ─ 11.8 | 12000 | 50─150 | 2.0─ 5.9 | |
| 4 | 48000 | 270─900 | 10.6 ─ 35.4 | 32000 | 180─600 | 7.1 ─ 23.6 | 19000 | 90─300 | 3.5─ 11.8 | |
| 1 | 6 | 38000 | 220─720 | 8.7 ─ 28.3 | 26000 | 150─480 | 5.9 ─ 18.9 | 16000 | 70─240 | 2.8─ 9.4 |
| 10 | 29000 | 160─540 | 6.3 ─ 21.3 | 19000 | 110─360 | 4.3 ─ 14.2 | 12000 | 60─180 | 2.4─ 7.1 | |
| 6 | 48000 | 300─900 | 11.8 ─ 35.4 | 32000 | 200─600 | 7.9 ─ 23.6 | 19000 | 100─300 | 3.9─11.8 | |
| 1.2 | 10 | 38000 | 240─720 | 9.4 ─ 28.3 | 26000 | 160─480 | 6.3 ─ 18.9 | 15000 | 80─240 | 3.1─ 9.4 |
| 15 | 29000 | 180─540 | 7.1 ─ 21.3 | 19000 | 120─360 | 4.7 ─ 14.2 | 12000 | 60─180 | 2.4─ 7.1 | |
| 4 | 41000 | 300─900 | 11.8 ─ 35.4 | 27000 | 200─600 | 7.9 ─ 23.6 | 16000 | 100─300 | 3.9─11.8 | |
| 1.5 | 6 | 32000 | 240─720 | 9.4 ─ 28.3 | 22000 | 160─480 | 6.3 ─ 18.9 | 13000 | 80─240 | 3.1─ 9.4 |
| 10 | 24000 | 180─540 | 7.1 ─ 21.3 | 16000 | 120─360 | 4.7 ─ 14.2 | 10000 | 60─180 | 2.4─ 7.1 | |
| 6 | 36000 | 600─2000 | 23.6 ─ 78.7 | 24000 | 400─1300 | 15.7 ─ 51.2 | 14000 | 200─650 | 7.9─25.6 | |
| 2 | 10 | 29000 | 480─1600 | 18.9 ─ 63.0 | 19000 | 320─1000 | 12.6 ─ 39.4 | 12000 | 160─520 | 6.3─20.5 |
| 15 | 22000 | 360─1200 | 14.2 ─ 47.2 | 14000 | 240─780 | 9.4 ─ 30.7 | 9000 | 120─390 | 4.7─15.4 | |
| 8 | 33000 | 750─2400 | 29.5 ─ 94.5 | 22000 | 500─1600 | 19.7 ─ 63.0 | 13000 | 250─800 | 9.8─31.5 | |
| 2.5 | 15 | 20000 | 450─1400 | 17.7 ─ 55.1 | 13000 | 300─960 | 11.8 ─ 37.8 | 8000 | 150─480 | 5.9─18.9 |
| 10 | 30000 | 900─3000 | 35.4 ─ 118.1 | 20000 | 600─2000 | 23.6 ─ 78.7 | 12000 | 300─1000 | 11.8─39.4 | |
| 3 | 15 | 24000 | 720─2400 | 28.3 ─ 94.5 | 16000 | 480─1600 | 18.9 ─ 63.0 | 10000 | 240─800 | 9.4─31.5 |
| 20 | 18000 | 540─1800 | 21.3 ─ 70.9 | 12000 | 360─1200 | 14.2 ─ 47.2 | 7000 | 180─600 | 7.1─23.6 | |
| 12 | 26000 | 1200─4500 | 47.2 ─ 177.2 | 17000 | 800─3000 | 31.5 ─ 118.1 | 10000 | 400─1500 | 15.7─59.1 | |
| 4 | 20 | 20000 | 960─2000 | 37.8 ─ 78.7 | 14000 | 640─2000 | 25.2 ─ 78.7 | 8000 | 320─2000 | 12.6─78.7 |
| 30 | 15000 | 720─1000 | 28.3 ─ 39.4 | 10000 | 480─1000 | 18.9 ─ 39.4 | 6000 | 240─1000 | 9.4─39.4 | |
| 15 | 20000 | 1200─4800 | 47.2 ─ 189.0 | 13000 | 780─3120 | 30.7 ─ 122.8 | 10000 | 520─2000 | 20.5─78.7 | |
| 5 | 30 | 12000 | 720─1900 | 28.3 ─ 74.8 | 8000 | 480─1600 | 18.9 ─ 63.0 | 7000 | 360─1120 | 14.2─44.1 |
| 18 | 20000 | 1600─7500 | 63.0 ─ 295.3 | 13000 | 1100─5000 | 43.3 ─ 196.9 | 8000 | 550─2500 | 21.7─98.4 | |
| 6 | 41 | 15000 | 900─2400 | 35.4 ─ 94.5 | 12000 | 720─1600 | 28.3 ─ 63.0 | 10000 | 600─1200 | 23.6─47.2 |
| 50 | 10000 | 600─1200 | 23.6 ─ 47.2 | 8000 | 480─800 | 18.9 ─ 31.5 | 6000 | 360─530 | 14.2─20.9 | |
| 24 | 15000 | 1900─7500 | 74.8 ─ 295.3 | 10000 | 1300─5000 | 51.2 ─ 196.9 | 6000 | 650─2500 | 25.6─98.4 | |
| 8 | 50 | 10000 | 1300─2400 | 51.2 ─ 94.5 | 8000 | 1000─2200 | 39.4 ─ 86.6 | 3000 | 320─600 | 12.6─23.6 |
| 30 | 12000 | 1600─7500 | 63.0 ─ 295.3 | 8000 | 1100─5000 | 43.3 ─ 196.9 | 5000 | 550─2500 | 21.7─98.4 | |
| 10 | 50 | 10000 | 1300─3200 | 51.2 ─ 126.0 | 7000 | 950─2200 | 37.4 ─ 86.6 | 2500 | 280─600 | 11.0─23.6 |
| 12 | 36 | 10000 | 1500─7500 | 59.1 ─ 295.3 | 7000 | 1000─5000 | 39.4 ─ 196.9 | 4000 | 500─2500 | 19.7─98.4 |
| ≤0.2R | ( DC E | ( DC ≤0.1RE | 2) | |||||||
| Depth | of cut | ≤0.4R | ( >&2) E DC | 0 | .1mm (DC | &1.5) | ( >& ≤0.2RE DC | 2) | 0.05mm | (DC |
| 0 0 | = > .2mm (DC .5mm (DC | &2 to&5 &6) ) | 0.1mm ( 0.3mm ( | =&2 to&5) >&6) DC DC |
DC : Dia., RE : Radius Note 1) The cutting conditions above are a guide only to machining with cutting edges with a corner radius. When machining with peripheral cutting edges, use the minimum feed rate as a guide. Note 2) If the depth of cut is smaller than this table, feed rate can be increased. Note 3) When contour milling, cutting conditions can vary greatly due to the geometry of the work material and depth of cut.
