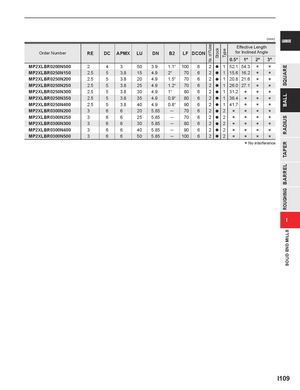

Общий каталог Mitsubishi 2020 - 2021 - страница 868
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
(mm) CARBIDE
| Order Number | RE | DC | APMX | LU | DN | B2 | LF | DCON | of Flutes | tock | ype | Ef fo | ffective r Incline | f Leng d An | f th gle |
| No. | S | 0.5° | 1° | 2° | 3° | ||||||||||
| MP2XLBR0200N500 | 2 | 4 | 3 | 50 | 3.9 | 1.1° | 100 | 6 | 2 | a | 1 | 52.1 | 54.3 | ||
| MP2XLBR0250N150 | 2.5 | 5 | 3.8 | 15 | 4.9 | 2° | 70 | 6 | 2 | a | 1 | 15.6 | 16.2 | ||
| MP2XLBR0250N200 | 2.5 | 5 | 3.8 | 20 | 4.9 | 1.5° | 70 | 6 | 2 | a | 1 | 20.8 | 21.6 | ||
| MP2XLBR0250N250 | 2.5 | 5 | 3.8 | 25 | 4.9 | 1.2° | 70 | 6 | 2 | a | 1 | 26.0 | 27.1 | ||
| MP2XLBR0250N300 | 2.5 | 5 | 3.8 | 30 | 4.9 | 1° | 80 | 6 | 2 | a | 1 | 31.2 | |||
| MP2XLBR0250N350 | 2.5 | 5 | 3.8 | 35 | 4.9 | 0.9° | 80 | 6 | 2 | a | 1 | 36.4 | |||
| MP2XLBR0250N400 | 2.5 | 5 | 3.8 | 40 | 4.9 | 0.8° | 90 | 6 | 2 | a | 1 | 41.7 | |||
| MP2XLBR0300N200 | 3 | 6 | 6 | 20 | 5.85 | ─ | 70 | 6 | 2 | a | 2 | ||||
| MP2XLBR0300N250 | 3 | 6 | 6 | 25 | 5.85 | ─ | 70 | 6 | 2 | a | 2 | ||||
| MP2XLBR0300N300 | 3 | 6 | 6 | 30 | 5.85 | ─ | 80 | 6 | 2 | a | 2 | ||||
| MP2XLBR0300N400 | 3 | 6 | 6 | 40 | 5.85 | ─ | 90 | 6 | 2 | a | 2 | ||||
| MP2XLBR0300N500 | 3 | 6 | 6 | 50 | 5.85 | ─ | 100 | 6 | 2 | a | 2 |
