CARBIDE (mm)

Order Number	RE	DC	APMX	LU	DN	B2	LF	DCON	of Flutes	tock	ype	Ef fo	ffectiv r Inclin	fe Leng ed Ang	f th le
									No.	S	T	0.5°	1°	2°	3°
MP2XLBR0100N140S06	1	2	1.5	14	1.94	5.1°	60	6	2	a	1	14.7	15.3	16.7	18.4
MP2XLBR0100N160	1	2	1.5	16	1.94	2.9°	55	4	2	a	1	16.8	17.5	19.1
MP2XLBR0100N160S06	1	2	1.5	16	1.94	4.7°	65	6	2	a	1	16.8	17.5	19.1	21.1
MP2XLBR0100N180	1	2	1.5	18	1.94	2.7°	55	4	2	a	1	18.9	19.7	21.5
MP2XLBR0100N180S06	1	2	1.5	18	1.94	4.3°	65	6	2	a	1	18.9	19.7	21.5	23.8
MP2XLBR0100N200	1	2	1.5	20	1.94	2.4°	65	4	2	a	1	20.9	21.8	23.9
MP2XLBR0100N200S06	1	2	1.5	20	1.94	4°	65	6	2	a	1	20.9	21.8	23.9	26.4
MP2XLBR0100N220	1	2	1.5	22	1.94	2.3°	65	4	2	a	1	23.0	24.0	26.3
MP2XLBR0100N250	1	2	1.5	25	1.94	2°	65	4	2	a	1	26.2	27.3
MP2XLBR0100N250S06	1	2	1.5	25	1.94	3.5°	90	6	2	a	1	26.2	27.3	29.9	33
MP2XLBR0100N300	1	2	1.5	30	1.94	1.7°	80	4	2	a	1	31.4	32.7
MP2XLBR0100N300S06	1	2	1.5	30	1.94	3°	90	6	2	a	1	31.4	32.7	35.9
MP2XLBR0100N350	1	2	1.5	35	1.94	1.5°	80	4	2	a	1	36.6	38.2
MP2XLBR0100N350S06	1	2	1.5	35	1.94	2.7°	90	6	2	a	1	36.6	38.2	41.8
MP2XLBR0100N400	1	2	1.5	40	1.94	1.4°	80	4	2	a	1	41.8	43.6
MP2XLBR0100N400S06	1	2	1.5	40	1.94	2.4°	90	6	2	a	1	41.8	43.6	47.8
MP2XLBR0125N100	1.25	2.5	1.9	10	2.4	3.5°	55	4	2	a	1	10.4	10.8	11.8	12.9
MP2XLBR0125N150	1.25	2.5	1.9	15	2.4	2.5°	55	4	2	a	1	15.6	16.3	17.8
MP2XLBR0125N200	1.25	2.5	1.9	20	2.4	2°	55	4	2	a	1	20.8	21.7
MP2XLBR0125N250	1.25	2.5	1.9	25	2.4	1.6°	70	4	2	a	1	26.1	27.2
MP2XLBR0125N300	1.25	2.5	1.9	30	2.4	1.4°	70	4	2	a	1	31.3	32.6
MP2XLBR0125N350	1.25	2.5	1.9	35	2.4	1.2°	70	4	2	a	1	36.5	38.1
MP2XLBR0150N060S03	1.5	3	2.3	6	2.9	─	60	3	2	a	1
MP2XLBR0150N080	1.5	3	2.3	8	2.9	6.3°	60	6	2	a	1	8.3	8.6	9.3	10.2
MP2XLBR0150N100	1.5	3	2.3	10	2.9	5.5°	60	6	2	a	1	10.4	10.8	11.7	12.9
MP2XLBR0150N120	1.5	3	2.3	12	2.9	4.9°	60	6	2	a	1	12.5	13.0	14.1	15.5
MP2XLBR0150N140	1.5	3	2.3	14	2.9	4.4°	60	6	2	a	1	14.6	15.2	16.5	18.2
MP2XLBR0150N160	1.5	3	2.3	16	2.9	4°	70	6	2	a	1	16.7	17.3	18.9	20.8
MP2XLBR0150N200	1.5	3	2.3	20	2.9	3.4°	70	6	2	a	1	20.8	21.7	23.7	26.1
MP2XLBR0150N250	1.5	3	2.3	25	2.9	2.8°	70	6	2	a	1	26.1	27.2	29.7
MP2XLBR0150N300	1.5	3	2.3	30	2.9	2.5°	70	6	2	a	1	31.3	32.6	35.7
MP2XLBR0150N350	1.5	3	2.3	35	2.9	2.2°	90	6	2	a	1	36.5	38.0	41.7
MP2XLBR0150N400	1.5	3	2.3	40	2.9	1.9°	90	6	2	a	1	41.7	43.5
MP2XLBR0175N150	1.75	3.5	2.6	15	3.4	3.8°	65	6	2	a	1	15.6	16.2	17.7	19.4
MP2XLBR0175N250	1.75	3.5	2.6	25	3.4	2.5°	65	6	2	a	1	26.0	27.1	29.6
MP2XLBR0175N350	1.75	3.5	2.6	35	3.4	1.9°	90	6	2	a	1	36.5	38.0
MP2XLBR0175N450	1.75	3.5	2.6	45	3.4	1.5°	90	6	2	a	1	46.9	48.9
MP2XLBR0200N080S04	2	4	3	8	3.9	─	65	4	2	a	2
MP2XLBR0200N100	2	4	3	10	3.9	4.5°	65	6	2	a	1	10.4	10.8	11.6	12.7
MP2XLBR0200N120	2	4	3	12	3.9	3.9°	65	6	2	a	1	12.5	12.9	14.0	15.4
MP2XLBR0200N140	2	4	3	14	3.9	3.4°	65	6	2	a	1	14.6	15.1	16.4	18.0
MP2XLBR0200N160	2	4	3	16	3.9	3.1°	70	6	2	a	1	16.6	17.3	18.8	20.7
MP2XLBR0200N200	2	4	3	20	3.9	2.6°	70	6	2	a	1	20.8	21.7	23.6
MP2XLBR0200N250	2	4	3	25	3.9	2.1°	70	6	2	a	1	26.0	27.1	29.6
MP2XLBR0200N300	2	4	3	30	3.9	1.8°	80	6	2	a	1	31.2	32.6
MP2XLBR0200N350	2	4	3	35	3.9	1.6°	80	6	2	a	1	36.5	38.0
MP2XLBR0200N400	2	4	3	40	3.9	1.4°	90	6	2	a	1	41.7	43.5
MP2XLBR0200N450	2	4	3	45	3.9	1.2°	90	6	2	a	1	46.9	48.9

MP2XLBR0200N450 2 4 3 45 3.9 1.2° 90 6 2 1 46.9 48.9 * *

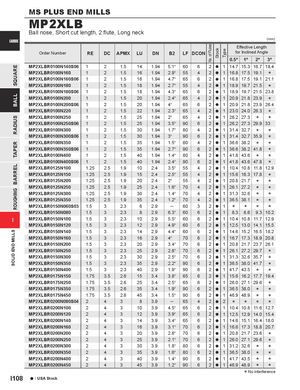

Общий каталог Mitsubishi 2020 - 2021 - страница 867
