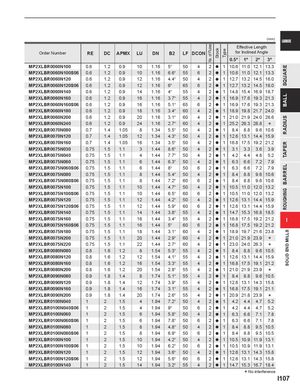

No. of Flutes Stock Type SQUAREBALLRADIUSTAPERBARRELROUGHINGSOLID END MILLS (mm) CARBIDE Effective Length Order Number RE DC APMX LU DN B2 LF DCON for Inclined Angle 0.5° 1° 2° 3° MP2XLBR0060N100 0.6 1.2 0.9 10 1.16 5° 50 4 2 a 1 10.6 11.0 12.1 13.3 MP2XLBR0060N100S06 0.6 1.2 0.9 10 1.16 6.6° 55 6 2 a 1 10.6 11.0 12.1 13.3 MP2XLBR0060N120 0.6 1.2 0.9 12 1.16 4.4° 50 4 2 a 1 12.7 13.2 14.5 16.0 MP2XLBR0060N120S06 0.6 1.2 0.9 12 1.16 6° 65 6 2 a 1 12.7 13.2 14.5 16.0 MP2XLBR0060N140 0.6 1.2 0.9 14 1.16 4° 55 4 2 a 1 14.8 15.4 16.9 18.7 MP2XLBR0060N160 0.6 1.2 0.9 16 1.16 3.7° 55 4 2 a 1 16.9 17.6 19.3 21.3 MP2XLBR0060N160S06 0.6 1.2 0.9 16 1.16 5.1° 65 6 2 a 1 16.9 17.6 19.3 21.3 MP2XLBR0060N180 0.6 1.2 0.9 18 1.16 3.4° 60 4 2 a 1 18.9 19.8 21.7 24.0 MP2XLBR0060N200 0.6 1.2 0.9 20 1.16 3.1° 60 4 2 a 1 21.0 21.9 24.0 26.6 MP2XLBR0060N240 0.6 1.2 0.9 24 1.16 2.7° 60 4 2 a 1 25.2 26.3 28.8 * MP2XLBR0070N080 0.7 1.4 1.05 8 1.34 5.5° 50 4 2 a 1 8.4 8.8 9.6 10.6 MP2XLBR0070N120 0.7 1.4 1.05 12 1.34 4.3° 50 4 2 a 1 12.6 13.1 14.4 15.9 MP2XLBR0070N160 0.7 1.4 1.05 16 1.34 3.5° 50 4 2 a 1 16.8 17.5 19.2 21.2 MP2XLBR0075N030 0.75 1.5 1.1 3 1.44 8.6° 50 4 2 a 1 3.1 3.3 3.6 3.9 MP2XLBR0075N040 0.75 1.5 1.1 4 1.44 7.7° 50 4 2 a 1 4.2 4.4 4.8 5.2 MP2XLBR0075N060 0.75 1.5 1.1 6 1.44 6.3° 50 4 2 a 1 6.3 6.6 7.2 7.9 MP2XLBR0075N060S06 0.75 1.5 1.1 6 1.44 8° 50 6 2 a 1 6.3 6.6 7.2 7.9 MP2XLBR0075N080 0.75 1.5 1.1 8 1.44 5.4° 50 4 2 a 1 8.4 8.8 9.6 10.6 MP2XLBR0075N080S06 0.75 1.5 1.1 8 1.44 7.2° 60 6 2 a 1 8.4 8.8 9.6 10.6 MP2XLBR0075N100 0.75 1.5 1.1 10 1.44 4.7° 50 4 2 a 1 10.5 11.0 12.0 13.2 MP2XLBR0075N100S06 0.75 1.5 1.1 10 1.44 6.5° 60 6 2 a 1 10.5 11.0 12.0 13.2 MP2XLBR0075N120 0.75 1.5 1.1 12 1.44 4.2° 50 4 2 a 1 12.6 13.1 14.4 15.9 MP2XLBR0075N120S06 0.75 1.5 1.1 12 1.44 5.9° 60 6 2 a 1 12.6 13.1 14.4 15.9 MP2XLBR0075N140 0.75 1.5 1.1 14 1.44 3.8° 55 4 2 a 1 14.7 15.3 16.8 18.5 MP2XLBR0075N160 0.75 1.5 1.1 16 1.44 3.4° 55 4 2 a 1 16.8 17.5 19.2 21.2 I MP2XLBR0075N160S06 0.75 1.5 1.1 16 1.44 5° 60 6 2 a 1 16.8 17.5 19.2 21.2 MP2XLBR0075N180 0.75 1.5 1.1 18 1.44 3.1° 60 4 2 a 1 18.9 19.7 21.6 23.8 MP2XLBR0075N200 0.75 1.5 1.1 20 1.44 2.9° 60 4 2 a 1 21.0 21.9 23.9 * MP2XLBR0075N220 0.75 1.5 1.1 22 1.44 2.7° 60 4 2 a 1 23.0 24.0 26.3 * MP2XLBR0080N080 0.8 1.6 1.2 8 1.54 5.3° 55 4 2 a 1 8.4 8.8 9.6 10.5 MP2XLBR0080N120 0.8 1.6 1.2 12 1.54 4.1° 55 4 2 a 1 12.6 13.1 14.4 15.9 MP2XLBR0080N160 0.8 1.6 1.2 16 1.54 3.3° 55 4 2 a 1 16.8 17.5 19.1 21.2 MP2XLBR0080N200 0.8 1.6 1.2 20 1.54 2.8° 55 4 2 a 1 21.0 21.9 23.9 * MP2XLBR0090N080 0.9 1.8 1.4 8 1.74 5.1° 55 4 2 a 1 8.4 8.8 9.6 10.5 MP2XLBR0090N120 0.9 1.8 1.4 12 1.74 3.9° 55 4 2 a 1 12.6 13.1 14.3 15.8 MP2XLBR0090N160 0.9 1.8 1.4 16 1.74 3.1° 55 4 2 a 1 16.8 17.5 19.1 21.1 MP2XLBR0090N200 0.9 1.8 1.4 20 1.74 2.6° 55 4 2 a 1 20.9 21.8 23.9 * MP2XLBR0100N040 1 2 1.5 4 1.94 7.2° 50 4 2 a 1 4.2 4.4 4.7 5.2 MP2XLBR0100N040S06 1 2 1.5 4 1.94 9° 50 6 2 a 1 4.2 4.4 4.7 5.2 MP2XLBR0100N060 1 2 1.5 6 1.94 5.8° 50 4 2 a 1 6.3 6.6 7.1 7.8 MP2XLBR0100N060S06 1 2 1.5 6 1.94 7.8° 50 6 2 a 1 6.3 6.6 7.1 7.8 MP2XLBR0100N080 1 2 1.5 8 1.94 4.8° 50 4 2 a 1 8.4 8.8 9.5 10.5 MP2XLBR0100N080S06 1 2 1.5 8 1.94 6.9° 50 6 2 a 1 8.4 8.8 9.5 10.5 MP2XLBR0100N100 1 2 1.5 10 1.94 4.2° 50 4 2 a 1 10.5 10.9 11.9 13.1 MP2XLBR0100N100S06 1 2 1.5 10 1.94 6.2° 50 6 2 a 1 10.5 10.9 11.9 13.1 MP2XLBR0100N120 1 2 1.5 12 1.94 3.6° 50 4 2 a 1 12.6 13.1 14.3 15.8 MP2XLBR0100N120S06 1 2 1.5 12 1.94 5.6° 60 6 2 a 1 12.6 13.1 14.3 15.8 MP2XLBR0100N140 1 2 1.5 14 1.94 3.2° 55 4 2 a 1 14.7 15.3 16.7 18.4 * No interference I107
