Ball nose, Short cut length, 2 flute, Short shank MP2SSB

Ball nose, Short cut length, 2 flute MP2SB Ball nose, Medium cut length, 2 flute MP2MB

CARBIDE

RECOMMENDED CUTTING CONDITIONS

Work Material	Mild Steel, Pre-hardene	Carbon Steel d Steel, Pre	(180─280H cipitation Har	B), Alloy Ste dening Stain	el, less Steel (	450HB)	Austenitic S Titanium All	tainless Stee oy	l (
RE	%	15°	%>	15°	Depth of cut	Depth of cut	%	15°	%>	15°	Depth of cut	Depth of cut
(mm)	Revolution (min-1)	Table feed (mm/min)	Revolution (min-1)	Table feed (mm/min)	ap (mm)	ae (mm)	Revolution (min-1)	Table feed (mm/min)	Revolution (min-1)	Table feed (mm/min)	ap (mm)	ae (mm)
R0.1	40000	300	40000	250	0.003	0.02	40000	300	40000	250	0.003	0.02
R0.15	40000	500	40000	350	0.007	0.03	40000	500	40000	350	0.007	0.03
R0.2	40000	1600	40000	1200	0.02	0.04	40000	1500	40000	1000	0.015	0.04
R0.25	40000	2400	40000	1400	0.025	0.05	40000	2100	40000	1200	0.02	0.05
R0.3	40000	3200	40000	1600	0.03	0.06	40000	2800	40000	1400	0.03	0.06
R0.4	40000	4800	40000	2400	0.05	0.08	40000	4600	40000	2100	0.04	0.08
R0.5	40000	5600	40000	3200	0.06	0.1	40000	5600	40000	3400	0.05	0.1
R0.75	40000	6500	40000	4000	0.09	0.15	40000	6500	36000	3600	0.08	0.15
R1	40000	6500	39000	4700	0.11	0.2	40000	6500	35000	4000	0.11	0.2
R1.25	40000	7000	33000	4500	0.12	0.25	40000	7400	29000	4000	0.12	0.25
R1.5	40000	7500	27000	4300	0.13	0.3	36000	6900	24000	3900	0.13	0.3
R2	32000	7500	20000	3600	0.15	0.4	28000	6900	18000	3100	0.15	0.4
R2.5	25000	6000	16000	2900	0.2	0.5	22000	6200	14000	2600	0.2	0.5
R3	21000	5800	13000	2600	0.25	0.6	18000	5400	11000	2300	0.25	0.6
R4	16000	4500	10000	2000	0.3	0.8	14000	4100	9000	1700	0.3	0.8
R5	13000	3600	8000	1700	0.5	1.0	11000	3300	7200	1300	0.5	1.0
R6	9000	2500	6000	1300	0.5	1.2	8100	2300	5400	1100	0.5	1.2
Depth of Cut

< I Note 1) % is the inclination angle of the machined surface. Note 2) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 3) If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. Note 4) Standard cutting conditions of austenitic stainless steel and titanium alloy, please reduce to 60% revolution and 45% feed rate. (Hardened steel (45─55HRC) table above) End Mill

RE ap ae

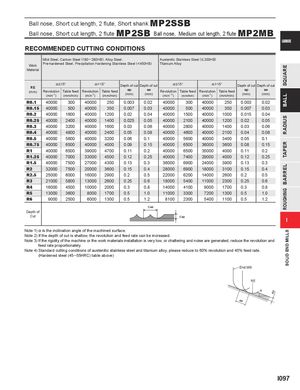

Общий каталог Mitsubishi 2020 - 2021 - страница 856
