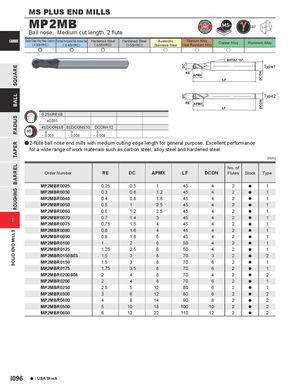

MP2MB
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
| (<30HRC) | ( | ( | 55HRC) | (> | Heat Resistant Alloy | Copper Alloy | Aluminum Alloy | |
| < 45HRC) | < | 55HRC) | Stainless Steel |
e e e u u u
BHTA2 15° Type1 RE APMX
LF
Type2 RE APMX LF 0.25<RE<6 ±0.005
| 4 | DCON | 6 8 | DCON | 10 DCON=12 | |
| 0 | 0 | 0 | |||
| - 0.005 | - 0.006 | - 0.008 |
a 2-flute ball nose end mills with medium cutting edge length for general purpose. Excellent performance for a wide range of work materials such as carbon steel, alloy steel and hardened steel. (mm)
| Order Number | RE | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MP2MBR0025 | 0.25 | 0.5 | 1 | 45 | 4 | 2 | a | 1 |
| MP2MBR0030 | 0.3 | 0.6 | 1.2 | 45 | 4 | 2 | a | 1 |
| MP2MBR0040 | 0.4 | 0.8 | 1.6 | 45 | 4 | 2 | a | 1 |
| MP2MBR0050 | 0.5 | 1 | 2.5 | 45 | 4 | 2 | a | 1 |
| MP2MBR0060 | 0.6 | 1.2 | 2.5 | 45 | 4 | 2 | a | 1 |
| MP2MBR0070 | 0.7 | 1.4 | 3 | 45 | 4 | 2 | a | 1 |
| MP2MBR0075 | 0.75 | 1.5 | 4 | 45 | 4 | 2 | a | 1 |
| MP2MBR0080 | 0.8 | 1.6 | 4 | 45 | 4 | 2 | a | 1 |
| MP2MBR0090 | 0.9 | 1.8 | 5 | 45 | 4 | 2 | a | 1 |
| MP2MBR0100 | 1 | 2 | 6 | 50 | 4 | 2 | a | 1 |
| MP2MBR0125 | 1.25 | 2.5 | 6 | 50 | 4 | 2 | a | 1 |
| MP2MBR0150S03 | 1.5 | 3 | 8 | 70 | 3 | 2 | a | 2 |
| MP2MBR0150 | 1.5 | 3 | 8 | 70 | 6 | 2 | a | 1 |
| MP2MBR0175 | 1.75 | 3.5 | 8 | 70 | 6 | 2 | a | 1 |
| MP2MBR0200S04 | 2 | 4 | 8 | 70 | 4 | 2 | a | 2 |
| MP2MBR0200 | 2 | 4 | 8 | 70 | 6 | 2 | a | 1 |
| MP2MBR0250 | 2.5 | 5 | 12 | 80 | 6 | 2 | a | 1 |
| MP2MBR0300 | 3 | 6 | 12 | 80 | 6 | 2 | a | 2 |
| MP2MBR0400 | 4 | 8 | 14 | 90 | 8 | 2 | a | 2 |
| MP2MBR0500 | 5 | 10 | 18 | 100 | 10 | 2 | a | 2 |
| MP2MBR0600 | 6 | 12 | 22 | 110 | 12 | 2 | a | 2 |
