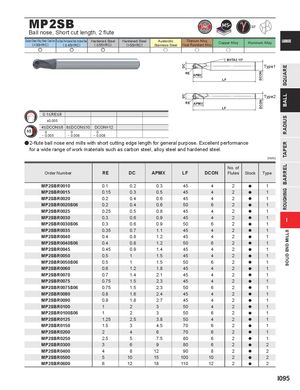

Общий каталог Mitsubishi 2020 - 2021 - страница 854
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
MP2SB
Ball nose, Short cut length, 2 flute
Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy, CARBIDE
| (<30HRC) | ( | ( | 55HRC) | (> | Heat Resistant Alloy | Copper Alloy | Aluminum Alloy | |
| < 45HRC) | < | 55HRC) | Stainless Steel |
e e e u u u
BHTA2 15° Type1 RE APMX LF
Type2 RE APMX LF 0.1<RE<6 ±0.005
| 4 | DCON | 6 8 | DCON | 10 DCON=12 | |
| 0 | 0 | 0 | |||
| - 0.005 | - 0.006 | - 0.008 |
a 2-flute ball nose end mills with short cutting edge length for general purpose. Excellent performance for a wide range of work materials such as carbon steel, alloy steel and hardened steel. (mm)
| Order Number | RE | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MP2SBR0010 | 0.1 | 0.2 | 0.3 | 45 | 4 | 2 | a | 1 |
| MP2SBR0015 | 0.15 | 0.3 | 0.5 | 45 | 4 | 2 | a | 1 |
| MP2SBR0020 | 0.2 | 0.4 | 0.6 | 45 | 4 | 2 | a | 1 |
| MP2SBR0020S06 | 0.2 | 0.4 | 0.6 | 50 | 6 | 2 | a | 1 |
| MP2SBR0025 | 0.25 | 0.5 | 0.8 | 45 | 4 | 2 | a | 1 |
| MP2SBR0030 | 0.3 | 0.6 | 0.9 | 45 | 4 | 2 | a | 1 |
| MP2SBR0030S06 | 0.3 | 0.6 | 0.9 | 50 | 6 | 2 | a | 1 |
| MP2SBR0035 | 0.35 | 0.7 | 1.1 | 45 | 4 | 2 | a | 1 |
| MP2SBR0040 | 0.4 | 0.8 | 1.2 | 45 | 4 | 2 | a | 1 |
| MP2SBR0040S06 | 0.4 | 0.8 | 1.2 | 50 | 6 | 2 | a | 1 |
| MP2SBR0045 | 0.45 | 0.9 | 1.4 | 45 | 4 | 2 | a | 1 |
| MP2SBR0050 | 0.5 | 1 | 1.5 | 45 | 4 | 2 | a | 1 |
| MP2SBR0050S06 | 0.5 | 1 | 1.5 | 50 | 6 | 2 | a | 1 |
| MP2SBR0060 | 0.6 | 1.2 | 1.8 | 45 | 4 | 2 | a | 1 |
| MP2SBR0070 | 0.7 | 1.4 | 2.1 | 45 | 4 | 2 | a | 1 |
| MP2SBR0075 | 0.75 | 1.5 | 2.3 | 45 | 4 | 2 | a | 1 |
| MP2SBR0075S06 | 0.75 | 1.5 | 2.3 | 50 | 6 | 2 | a | 1 |
| MP2SBR0080 | 0.8 | 1.6 | 2.4 | 45 | 4 | 2 | a | 1 |
| MP2SBR0090 | 0.9 | 1.8 | 2.7 | 45 | 4 | 2 | a | 1 |
| MP2SBR0100 | 1 | 2 | 3 | 50 | 4 | 2 | a | 1 |
| MP2SBR0100S06 | 1 | 2 | 3 | 50 | 6 | 2 | a | 1 |
| MP2SBR0125 | 1.25 | 2.5 | 3.8 | 50 | 4 | 2 | a | 1 |
| MP2SBR0150 | 1.5 | 3 | 4.5 | 70 | 6 | 2 | a | 1 |
| MP2SBR0200 | 2 | 4 | 6 | 70 | 6 | 2 | a | 1 |
| MP2SBR0250 | 2.5 | 5 | 7.5 | 80 | 6 | 2 | a | 1 |
| MP2SBR0300 | 3 | 6 | 9 | 80 | 6 | 2 | a | 2 |
| MP2SBR0400 | 4 | 8 | 12 | 90 | 8 | 2 | a | 2 |
| MP2SBR0500 | 5 | 10 | 15 | 100 | 10 | 2 | a | 2 |
| MP2SBR0600 | 6 | 12 | 18 | 110 | 12 | 2 | a | 2 |
