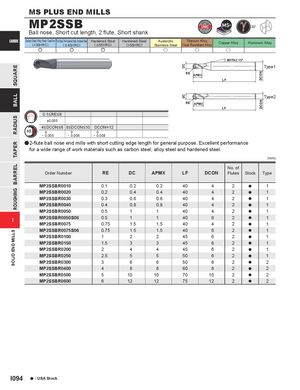

MP2SSB
Ball nose, Short cut length, 2 flute, Short shank
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel Austenitic Titanium Alloy,
| (<30HRC) | ( | ( | 55HRC) | (> | Heat Resistant Alloy | Copper Alloy | Aluminum Alloy | |
| < 45HRC) | < | 55HRC) | Stainless Steel |
e e e u u u
BHTA2 15° Type1 RE APMX LF
Type2 RE APMX LF 0.1<RE<6 ±0.005
| 4 | DCON | 6 8 | DCON | 10 DCON=12 | |
| 0 | 0 | 0 | |||
| - 0.005 | - 0.006 | - 0.008 |
a2-flute ball nose end mills with short cutting edge length for general purpose. Excellent performance for a wide range of work materials such as carbon steel, alloy steel and hardened steel. (mm)
| Order Number | RE | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MP2SSBR0010 | 0.1 | 0.2 | 0.2 | 40 | 4 | 2 | a | 1 |
| MP2SSBR0020 | 0.2 | 0.4 | 0.4 | 40 | 4 | 2 | a | 1 |
| MP2SSBR0030 | 0.3 | 0.6 | 0.6 | 40 | 4 | 2 | a | 1 |
| MP2SSBR0040 | 0.4 | 0.8 | 0.8 | 40 | 4 | 2 | a | 1 |
| MP2SSBR0050 | 0.5 | 1 | 1 | 40 | 4 | 2 | a | 1 |
| MP2SSBR0050S06 | 0.5 | 1 | 1 | 40 | 6 | 2 | a | 1 |
| MP2SSBR0075 | 0.75 | 1.5 | 1.5 | 40 | 4 | 2 | a | 1 |
| MP2SSBR0075S06 | 0.75 | 1.5 | 1.5 | 40 | 6 | 2 | a | 1 |
| MP2SSBR0100 | 1 | 2 | 2 | 45 | 6 | 2 | a | 1 |
| MP2SSBR0150 | 1.5 | 3 | 3 | 45 | 6 | 2 | a | 1 |
| MP2SSBR0200 | 2 | 4 | 4 | 45 | 6 | 2 | a | 1 |
| MP2SSBR0250 | 2.5 | 5 | 5 | 50 | 6 | 2 | a | 1 |
| MP2SSBR0300 | 3 | 6 | 6 | 50 | 6 | 2 | a | 2 |
| MP2SSBR0400 | 4 | 8 | 8 | 60 | 8 | 2 | a | 2 |
| MP2SSBR0500 | 5 | 10 | 10 | 70 | 10 | 2 | a | 2 |
| MP2SSBR0600 | 6 | 12 | 12 | 75 | 12 | 2 | a | 2 |
