CARBIDE

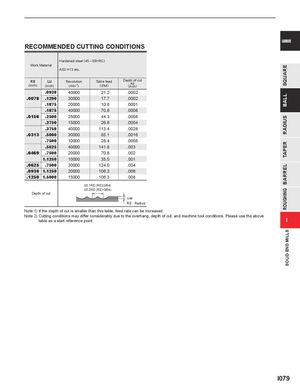

RECOMMENDED CUTTING CONDITIONS
| Work M | aterial | Hardened steel(45 AISI H13 etc. | ─55HRC) | |
| RE (inch) | LU (inch) | Revolution (min-1) | Table feed (IPM) | Depth of cut ap (inch) |
| .0938 | 40000 | 21.2 | .0002 | |
| .0078 | .1290 | 30000 | 17.7 | .0002 |
| .1875 | 20000 | 10.6 | .0001 | |
| .1875 | 40000 | 70.8 | .0008 | |
| .0156 | .2500 | 25000 | 44.3 | .0008 |
| .3750 | 15000 | 26.6 | .0004 | |
| .3750 | 40000 | 113.4 | .0028 | |
| .0313 | .5000 | 30000 | 85.1 | .0016 |
| .7500 | 10000 | 28.4 | .0008 | |
| .5625 | 40000 | 141.8 | .003 | |
| .0469 | .7500 | 20000 | 70.8 | .002 |
| 1.1250 | 10000 | 35.5 | .001 | |
| .0625 | .7500 | 30000 | 124.0 | .004 |
| .0938 | 1.1250 | 20000 | 106.3 | .006 |
| .1250 | 1.5000 | 15000 | 106.3 | .008 |
| 1RE (RE 2RE (RE>3/64) | ||||
| Depth | of cut | RE : Radius |
Note 1) If the depth of cut is smaller than this table, feed rate can be increased. Note 2) Cutting conditions may differ considerably due to the overhang, depth of cut, and machine tool conditions. Please use the above I table as a start reference point.
