CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel
| (<30HRC) | ( | ( | 55HRC) |
| < 45HRC) | < |
e e u
| 1 | DC | 12 | ||
| 0 | ||||
| - 0.020 | ||||
| 4 | DCON | 6 8 | 10 DCON DCON=12 | |
| 0 | 0 | 0 | ||
| - 0.008 | - 0.009 | - 0.011 |

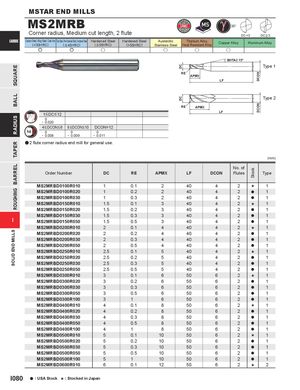

a 2 flute corner radius end mill for general use.
Hardened Steel 55HRC)
Austenitic Titanium Alloy, Heat Resistant Alloy Stainless Steel u u
RE APMX
RE APMX
DC<3 DC≥3 Copper Alloy Aluminum Alloy u BHTA2 15° Type 1
LF
Type 2 LF
(mm)
| Order Number | DC | RE | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MS2MRBD0100R010 | 1 | 0.1 | 2 | 40 | 4 | 2 | s | 1 |
| MS2MRBD0100R020 | 1 | 0.2 | 2 | 40 | 4 | 2 | a | 1 |
| MS2MRBD0100R030 | 1 | 0.3 | 2 | 40 | 4 | 2 | a | 1 |
| MS2MRBD0150R010 | 1.5 | 0.1 | 3 | 40 | 4 | 2 | s | 1 |
| MS2MRBD0150R020 | 1.5 | 0.2 | 3 | 40 | 4 | 2 | a | 1 |
| MS2MRBD0150R030 | 1.5 | 0.3 | 3 | 40 | 4 | 2 | a | 1 |
| MS2MRBD0150R050 | 1.5 | 0.5 | 3 | 40 | 4 | 2 | a | 1 |
| MS2MRBD0200R010 | 2 | 0.1 | 4 | 40 | 4 | 2 | s | 1 |
| MS2MRBD0200R020 | 2 | 0.2 | 4 | 40 | 4 | 2 | a | 1 |
| MS2MRBD0200R030 | 2 | 0.3 | 4 | 40 | 4 | 2 | a | 1 |
| MS2MRBD0200R050 | 2 | 0.5 | 4 | 40 | 4 | 2 | a | 1 |
| MS2MRBD0250R010 | 2.5 | 0.1 | 5 | 40 | 4 | 2 | s | 1 |
| MS2MRBD0250R020 | 2.5 | 0.2 | 5 | 40 | 4 | 2 | a | 1 |
| MS2MRBD0250R030 | 2.5 | 0.3 | 5 | 40 | 4 | 2 | a | 1 |
| MS2MRBD0250R050 | 2.5 | 0.5 | 5 | 40 | 4 | 2 | a | 1 |
| MS2MRBD0300R010 | 3 | 0.1 | 6 | 50 | 6 | 2 | s | 1 |
| MS2MRBD0300R020 | 3 | 0.2 | 6 | 50 | 6 | 2 | a | 1 |
| MS2MRBD0300R030 | 3 | 0.3 | 6 | 50 | 6 | 2 | a | 1 |
| MS2MRBD0300R050 | 3 | 0.5 | 6 | 50 | 6 | 2 | a | 1 |
| MS2MRBD0300R100 | 3 | 1 | 6 | 50 | 6 | 2 | a | 1 |
| MS2MRBD0400R010 | 4 | 0.1 | 8 | 50 | 6 | 2 | s | 1 |
| MS2MRBD0400R020 | 4 | 0.2 | 8 | 50 | 6 | 2 | a | 1 |
| MS2MRBD0400R030 | 4 | 0.3 | 8 | 50 | 6 | 2 | a | 1 |
| MS2MRBD0400R050 | 4 | 0.5 | 8 | 50 | 6 | 2 | a | 1 |
| MS2MRBD0400R100 | 4 | 1 | 8 | 50 | 6 | 2 | a | 1 |
| MS2MRBD0500R010 | 5 | 0.1 | 10 | 50 | 6 | 2 | s | 1 |
| MS2MRBD0500R020 | 5 | 0.2 | 10 | 50 | 6 | 2 | a | 1 |
| MS2MRBD0500R030 | 5 | 0.3 | 10 | 50 | 6 | 2 | a | 1 |
| MS2MRBD0500R050 | 5 | 0.5 | 10 | 50 | 6 | 2 | a | 1 |
| MS2MRBD0500R100 | 5 | 1 | 10 | 50 | 6 | 2 | a | 1 |
| MS2MRBD0600R010 | 6 | 0.1 | 12 | 50 | 6 | 2 | s | 2 |
