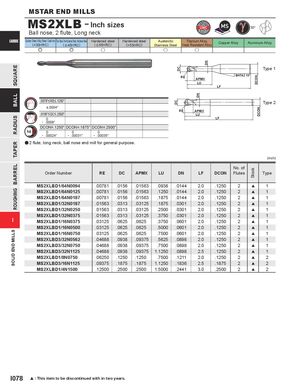

MSTAR END MILLS MS2XLB - Inch sizes 30° Ball nose, 2 flute, Long neck CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened steel Hardened steel Austenitic Titanium Alloy, Copper Alloy Aluminum Alloy (<30HRC) ( < 45HRC) ( < 55HRC) (>55HRC) Stainless Steel Heat Resistant Alloy e e u u u DN SQUARE Type 1 DC RE BHTA2 15° DCON APMX LU LF DN BALL .0078"< RE< .1250" Type 2 DC ±.0004" DCON RE APMX .0156"< DC< .2500" LU RADIUS 0 LF - .0008" DCON=.1250" DCON=.1875" DCON=.2500" 0 0 0 - .00024" - .00031" - .00035" a 2 flute, long neck, ball nose end mill for general purpose. TAPER (inch) ROUGHING BARREL No. of Stock Order Number RE DC APMX LU DN LF DCON Flutes Type MS2XLBD1/64N0094 .00781 .0156 .01563 .0938 .0144 2.0 .1250 2 [ 1 MS2XLBD1/64N0125 .00781 .0156 .01563 .1250 .0144 2.0 .1250 2 [ 1 MS2XLBD1/64N0187 .00781 .0156 .01563 .1875 .0144 2.0 .1250 2 [ 1 MS2XLBD1/32N0187 .01563 .0313 .03125 .1875 .0301 2.0 .1250 2 [ 1 MS2XLBD1/32N0250 .01563 .0313 .03125 .2500 .0301 2.0 .1250 2 [ 1 MS2XLBD1/32N0375 .01563 .0313 .03125 .3750 .0301 2.0 .1250 2 [ 1 I MS2XLBD1/16N0375 .03125 .0625 .0625 .3750 .0601 2.0 .1250 2 [ 1 MS2XLBD1/16N0500 .03125 .0625 .0625 .5000 .0601 2.0 .1250 2 [ 1 SOLID END MILLS MS2XLBD1/16N0750 .03125 .0625 .0625 .7500 .0601 2.0 .1250 2 [ 1 MS2XLBD3/32N0562 .04688 .0938 .09375 .5625 .0898 2.0 .1250 2 [ 1 MS2XLBD3/32N0750 .04688 .0938 .09375 .7500 .0898 2.0 .1250 2 [ 1 MS2XLBD3/32N1125 .04688 .0938 .09375 1.1250 .0898 2.5 .1250 2 [ 1 MS2XLBD1/8N0750 .06250 .1250 .1250 .7500 .1211 2.0 .1250 2 [ 2 MS2XLBD3/16N1125 .09375 .1875 .1875 1.1250 .1836 2.5 .1875 2 [ 2 MS2XLBD1/4N1500 .12500 .2500 .2500 1.5000 .2441 3.0 .2500 2 [ 2 I078 [ : This item to be discontinued with in two years.
