CARBIDE

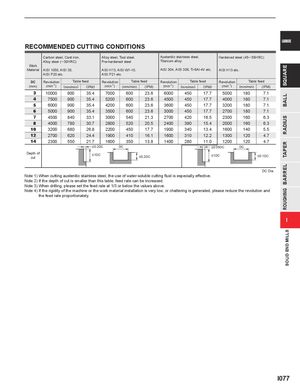

RECOMMENDED CUTTING CONDITIONS
| Work Material | Carbon stee Alloy steel ( AISI 1050, A AISI P20 et | l, Cast iron, ─30HRC) ISI 35, c. | Alloy steel, Pre-harden AISI H13, A AISI P21 et | Tool steel, ed steel ISI W1-10, c. | Austenitic st Titanium all AISI 304, AI | ainless steel oy SI 306, Ti-6A | , l-4V etc. | Hardened s AISI H13 et | teel (45─55H c. | RC) | ||
| DC | Revolution | Table | feed | Revolution | Table | feed | Revolution | Table | feed | Revolution | Table | feed |
| (mm) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) |
| 3 | 10000 | 900 | 35.4 | 7000 | 600 | 23.6 | 6000 | 450 | 17.7 | 5000 | 180 | 7.1 |
| 4 | 7500 | 900 | 35.4 | 5200 | 600 | 23.6 | 4500 | 450 | 17.7 | 4000 | 180 | 7.1 |
| 5 | 6000 | 900 | 35.4 | 4200 | 600 | 23.6 | 3600 | 450 | 17.7 | 3200 | 180 | 7.1 |
| 6 | 5000 | 900 | 35.4 | 3500 | 600 | 23.6 | 3000 | 450 | 17.7 | 2700 | 180 | 7.1 |
| 7 | 4500 | 840 | 33.1 | 3000 | 540 | 21.3 | 2700 | 420 | 16.5 | 2300 | 160 | 6.3 |
| 8 | 4000 | 780 | 30.7 | 2800 | 520 | 20.5 | 2400 | 390 | 15.4 | 2000 | 160 | 6.3 |
| 10 | 3200 | 680 | 26.8 | 2200 | 450 | 17.7 | 1900 | 340 | 13.4 | 1600 | 140 | 5.5 |
| 12 | 2700 | 620 | 24.4 | 1900 | 410 | 16.1 | 1600 | 310 | 12.2 | 1300 | 120 | 4.7 |
| 14 | 2300 | 550 | 21.7 | 1600 | 350 | 13.8 | 1400 | 280 | 11.0 | 1200 | 120 | 4.7 |
| C | DC | 05DC | DC | |||||||||
| Depth of cut | C | DC:Dia. |
Note 1) When cutting austenitic stainless steel, the use of water-soluble cutting fluid is especially effective. Note 2) If the depth of cut is smaller than this table, feed rate can be increased. Note 3) When drilling, please set the feed rate at 1/3 or below the values above. Note 4) If the rigidity of the machine or the work material installation is very low, or chattering is generated, please reduce the revolution and the feed rate proportionately.
