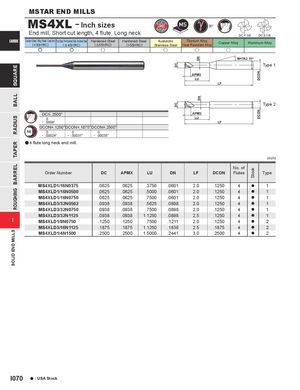

MS4XL - Inch sizes
| CARBIDE | Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel | Hardened Steel | Hardened Steel | Austenitic | Titanium Alloy, | ||||
| (<30HRC) | ( | ( 55HRC) | (> | Heat Resistant Alloy | |||||
| < 45HRC) | < | 55HRC) | Stainless Steel |
e e u u u
APMX LU
DC˂1/8 DC≥ 1/8 Copper Alloy Aluminum Alloy u BHTA2 15° Type 1
LF
Type 2 DC<.2500" APMX 0 LU - .0008" LF DCON=.1250"DCON=.1875"DCON=.2500"
| 0 | 0 | 0 |
| - .00024" | - .00031" | - .00035" |
a 4 flute long neck end mill.
| Order Number | DC | APMX | LU | DN | LF | DCON | No. of Flutes | Stock | Type (inch) |
| MS4XLD1/16N0375 | .0625 | .0625 | .3750 | .0601 | 2.0 | .1250 | 4 | a | 1 |
| MS4XLD1/16N0500 | .0625 | .0625 | .5000 | .0601 | 2.0 | .1250 | 4 | a | 1 |
| MS4XLD1/16N0750 | .0625 | .0625 | .7500 | .0601 | 2.0 | .1250 | 4 | a | 1 |
| MS4XLD3/32N0562 | .0938 | .0938 | .5625 | .0898 | 2.0 | .1250 | 4 | a | 1 |
| MS4XLD3/32N0750 | .0938 | .0938 | .7500 | .0898 | 2.0 | .1250 | 4 | a | 1 |
| MS4XLD3/32N1125 | .0938 | .0938 | 1.1250 | .0898 | 2.5 | .1250 | 4 | a | 1 |
| MS4XLD1/8N0750 | .1250 | .1250 | .7500 | .1211 | 2.0 | .1250 | 4 | a | 2 |
| MS4XLD3/16N1125 | .1875 | .1875 | 1.1250 | .1836 | 2.5 | .1875 | 4 | a | 2 |
| MS4XLD1/4N1500 | .2500 | .2500 | 1.5000 | .2441 | 3.0 | .2500 | 4 | a | 2 |
