CARBIDE

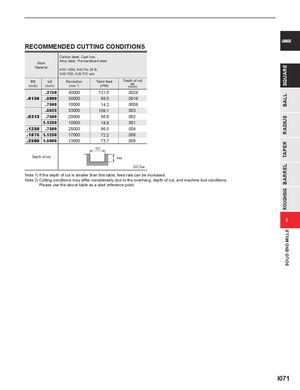

RECOMMENDED CUTTING CONDITIONS
| Wo Mat | rk erial | Carbon steel, Cast Alloy steel, Pre-ha AISI 1050, AISI No AISI P20, AISI P21 | iron, rdened steel 35 B, etc. | |
| DC (inch) | LU (inch) | Revolution (min-1) | Table feed (IPM) | Depth of cut ap (inch) |
| .3750 | 40000 | 121.0 | .0028 | |
| .0156 | .5000 | 30000 | 68.0 | .0016 |
| .7500 | 10000 | 14.2 | .0008 | |
| .5625 | 33000 | 109.1 | .003 | |
| .0313 | .7500 | 20000 | 56.6 | .002 |
| 1.1250 | 10000 | 18.8 | .001 | |
| .1250 | .7500 | 25000 | 96.5 | .004 |
| .1875 | 1.1250 | 17000 | 72.2 | .006 |
| .2500 | 1.5000 | 13000 | 73.7 | .008 |
| Depth | of cut | DC | ap DC:Dia. |
Note 1) If the depth of cut is smaller than this table, feed rate can be increased. Note 2) Cutting conditions may differ considerably due to the overhang, depth of cut, and machine tool conditions. Please use the above table as a start reference point.
