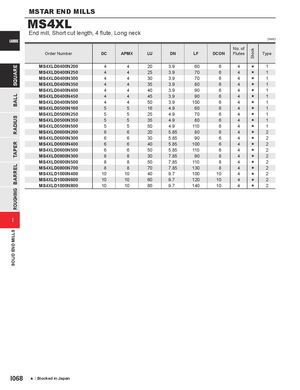

Общий каталог Mitsubishi 2020 - 2021 - страница 827
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
CARBIDE (mm)
| Order Number | DC | APMX | LU | DN | LF | DCON | No. of Flutes | Stock | Type |
| MS4XLD0400N200 | 4 | 4 | 20 | 3.9 | 60 | 6 | 4 | s | 1 |
| MS4XLD0400N250 | 4 | 4 | 25 | 3.9 | 70 | 6 | 4 | s | 1 |
| MS4XLD0400N300 | 4 | 4 | 30 | 3.9 | 70 | 6 | 4 | s | 1 |
| MS4XLD0400N350 | 4 | 4 | 35 | 3.9 | 80 | 6 | 4 | s | 1 |
| MS4XLD0400N400 | 4 | 4 | 40 | 3.9 | 90 | 6 | 4 | s | 1 |
| MS4XLD0400N450 | 4 | 4 | 45 | 3.9 | 90 | 6 | 4 | s | 1 |
| MS4XLD0400N500 | 4 | 4 | 50 | 3.9 | 100 | 6 | 4 | s | 1 |
| MS4XLD0500N160 | 5 | 5 | 16 | 4.9 | 60 | 6 | 4 | s | 1 |
| MS4XLD0500N250 | 5 | 5 | 25 | 4.9 | 70 | 6 | 4 | s | 1 |
| MS4XLD0500N350 | 5 | 5 | 35 | 4.9 | 80 | 6 | 4 | s | 1 |
| MS4XLD0500N500 | 5 | 5 | 50 | 4.9 | 110 | 6 | 4 | s | 1 |
| MS4XLD0600N200 | 6 | 6 | 20 | 5.85 | 80 | 6 | 4 | s | 2 |
| MS4XLD0600N300 | 6 | 6 | 30 | 5.85 | 90 | 6 | 4 | s | 2 |
| MS4XLD0600N400 | 6 | 6 | 40 | 5.85 | 100 | 6 | 4 | s | 2 |
| MS4XLD0600N500 | 6 | 6 | 50 | 5.85 | 110 | 6 | 4 | s | 2 |
| MS4XLD0800N300 | 8 | 8 | 30 | 7.85 | 90 | 8 | 4 | s | 2 |
| MS4XLD0800N500 | 8 | 8 | 50 | 7.85 | 110 | 8 | 4 | s | 2 |
| MS4XLD0800N700 | 8 | 8 | 70 | 7.85 | 130 | 8 | 4 | s | 2 |
| MS4XLD1000N400 | 10 | 10 | 40 | 9.7 | 100 | 10 | 4 | s | 2 |
| MS4XLD1000N600 | 10 | 10 | 60 | 9.7 | 120 | 10 | 4 | s | 2 |
| MS4XLD1000N800 | 10 | 10 | 80 | 9.7 | 140 | 10 | 4 | s | 2 |
