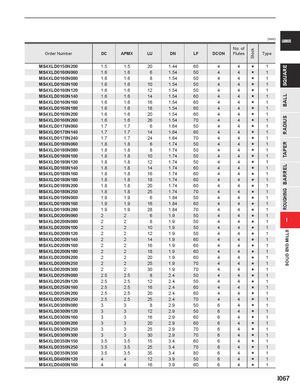

(mm) CARBIDE No. of Stock Order Number DC APMX LU DN LF DCON Flutes Type MS4XLD0150N200 1.5 1.5 20 1.44 60 4 4 s 1 SQUARE MS4XLD0160N060 1.6 1.6 6 1.54 50 4 4 s 1 MS4XLD0160N080 1.6 1.6 8 1.54 50 4 4 s 1 MS4XLD0160N100 1.6 1.6 10 1.54 50 4 4 s 1 MS4XLD0160N120 1.6 1.6 12 1.54 50 4 4 s 1 MS4XLD0160N140 1.6 1.6 14 1.54 60 4 4 1 BALL s MS4XLD0160N160 1.6 1.6 16 1.54 60 4 4 s 1 MS4XLD0160N180 1.6 1.6 18 1.54 60 4 4 s 1 MS4XLD0160N200 1.6 1.6 20 1.54 60 4 4 s 1 RADIUS MS4XLD0160N260 1.6 1.6 26 1.54 70 4 4 s 1 MS4XLD0170N060 1.7 1.7 6 1.64 50 4 4 s 1 MS4XLD0170N140 1.7 1.7 14 1.64 60 4 4 s 1 MS4XLD0170N240 1.7 1.7 24 1.64 70 4 4 s 1 MS4XLD0180N060 1.8 1.8 6 1.74 50 4 4 1 TAPER s MS4XLD0180N080 1.8 1.8 8 1.74 50 4 4 s 1 MS4XLD0180N100 1.8 1.8 10 1.74 50 4 4 s 1 MS4XLD0180N120 1.8 1.8 12 1.74 50 4 4 s 1 ROUGHING BARREL MS4XLD0180N140 1.8 1.8 14 1.74 60 4 4 s 1 MS4XLD0180N160 1.8 1.8 16 1.74 60 4 4 s 1 MS4XLD0180N180 1.8 1.8 18 1.74 60 4 4 s 1 MS4XLD0180N200 1.8 1.8 20 1.74 60 4 4 s 1 MS4XLD0180N250 1.8 1.8 25 1.74 70 4 4 s 1 MS4XLD0190N060 1.9 1.9 6 1.84 50 4 4 s 1 MS4XLD0190N160 1.9 1.9 16 1.84 60 4 4 s 1 MS4XLD0190N280 1.9 1.9 28 1.84 70 4 4 s 1 MS4XLD0200N060 2 2 6 1.9 50 4 4 s 1 MS4XLD0200N080 2 2 8 1.9 50 4 4 s 1 I MS4XLD0200N100 2 2 10 1.9 50 4 4 s 1 SOLID END MILLS MS4XLD0200N120 2 2 12 1.9 50 4 4 s 1 MS4XLD0200N140 2 2 14 1.9 60 4 4 s 1 MS4XLD0200N160 2 2 16 1.9 60 4 4 s 1 MS4XLD0200N180 2 2 18 1.9 60 4 4 s 1 MS4XLD0200N200 2 2 20 1.9 60 4 4 s 1 MS4XLD0200N250 2 2 25 1.9 70 4 4 s 1 MS4XLD0200N300 2 2 30 1.9 70 4 4 s 1 MS4XLD0250N080 2.5 2.5 8 2.4 50 4 4 s 1 MS4XLD0250N120 2.5 2.5 12 2.4 50 4 4 s 1 MS4XLD0250N160 2.5 2.5 16 2.4 60 4 4 s 1 MS4XLD0250N200 2.5 2.5 20 2.4 60 4 4 s 1 MS4XLD0250N250 2.5 2.5 25 2.4 70 4 4 s 1 MS4XLD0300N080 3 3 8 2.9 50 6 4 s 1 MS4XLD0300N120 3 3 12 2.9 50 6 4 s 1 MS4XLD0300N160 3 3 16 2.9 60 6 4 s 1 MS4XLD0300N200 3 3 20 2.9 60 6 4 s 1 MS4XLD0300N250 3 3 25 2.9 70 6 4 s 1 MS4XLD0300N300 3 3 30 2.9 70 6 4 s 1 MS4XLD0350N150 3.5 3.5 15 3.4 60 6 4 s 1 MS4XLD0350N250 3.5 3.5 25 3.4 70 6 4 s 1 MS4XLD0350N350 3.5 3.5 35 3.4 80 6 4 s 1 MS4XLD0400N120 4 4 12 3.9 50 6 4 s 1 MS4XLD0400N160 4 4 16 3.9 60 6 4 s 1 I067
