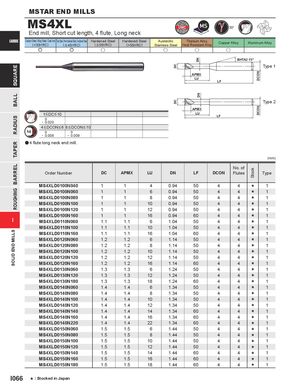

Общий каталог Mitsubishi 2020 - 2021 - страница 825
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
| CARBIDE | Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel | Hardened Steel | Hardened Steel | Austenitic | Titanium Alloy, | ||||
| (<30HRC) | ( | ( 55HRC) | (> | Heat Resistant Alloy | |||||
| < 45HRC) | < | 55HRC) | Stainless Steel |
e e u u u
APMX LU
Copper Alloy Aluminum Alloy u BHTA2 15° Type 1
LF
1 DC 10
0 - 0.020 4<DCON<6 8 <DCON<10 0 0
- 0.008 - 0.009 a 4 flute long neck end mill.
APMX LU
LF
Type 2
(mm)
| Order Number | DC | APMX | LU | DN | LF | DCON | No. of Flutes | Stock | Type |
| MS4XLD0100N040 | 1 | 1 | 4 | 0.94 | 50 | 4 | 4 | s | 1 |
| MS4XLD0100N060 | 1 | 1 | 6 | 0.94 | 50 | 4 | 4 | s | 1 |
| MS4XLD0100N080 | 1 | 1 | 8 | 0.94 | 50 | 4 | 4 | s | 1 |
| MS4XLD0100N100 | 1 | 1 | 10 | 0.94 | 50 | 4 | 4 | s | 1 |
| MS4XLD0100N120 | 1 | 1 | 12 | 0.94 | 50 | 4 | 4 | s | 1 |
| MS4XLD0100N160 | 1 | 1 | 16 | 0.94 | 60 | 4 | 4 | s | 1 |
| MS4XLD0110N060 | 1.1 | 1.1 | 6 | 1.04 | 50 | 4 | 4 | s | 1 |
| MS4XLD0110N100 | 1.1 | 1.1 | 10 | 1.04 | 50 | 4 | 4 | s | 1 |
| MS4XLD0110N160 | 1.1 | 1.1 | 16 | 1.04 | 60 | 4 | 4 | s | 1 |
| MS4XLD0120N060 | 1.2 | 1.2 | 6 | 1.14 | 50 | 4 | 4 | s | 1 |
| MS4XLD0120N080 | 1.2 | 1.2 | 8 | 1.14 | 50 | 4 | 4 | s | 1 |
| MS4XLD0120N100 | 1.2 | 1.2 | 10 | 1.14 | 50 | 4 | 4 | s | 1 |
| MS4XLD0120N120 | 1.2 | 1.2 | 12 | 1.14 | 50 | 4 | 4 | s | 1 |
| MS4XLD0120N160 | 1.2 | 1.2 | 16 | 1.14 | 60 | 4 | 4 | s | 1 |
| MS4XLD0130N060 | 1.3 | 1.3 | 6 | 1.24 | 50 | 4 | 4 | s | 1 |
| MS4XLD0130N120 | 1.3 | 1.3 | 12 | 1.24 | 50 | 4 | 4 | s | 1 |
| MS4XLD0130N180 | 1.3 | 1.3 | 18 | 1.24 | 60 | 4 | 4 | s | 1 |
| MS4XLD0140N060 | 1.4 | 1.4 | 6 | 1.34 | 50 | 4 | 4 | s | 1 |
| MS4XLD0140N080 | 1.4 | 1.4 | 8 | 1.34 | 50 | 4 | 4 | s | 1 |
| MS4XLD0140N100 | 1.4 | 1.4 | 10 | 1.34 | 50 | 4 | 4 | s | 1 |
| MS4XLD0140N120 | 1.4 | 1.4 | 12 | 1.34 | 50 | 4 | 4 | s | 1 |
| MS4XLD0140N140 | 1.4 | 1.4 | 14 | 1.34 | 60 | 4 | 4 | s | 1 |
| MS4XLD0140N160 | 1.4 | 1.4 | 16 | 1.34 | 60 | 4 | 4 | s | 1 |
| MS4XLD0140N220 | 1.4 | 1.4 | 22 | 1.34 | 60 | 4 | 4 | s | 1 |
| MS4XLD0150N060 | 1.5 | 1.5 | 6 | 1.44 | 50 | 4 | 4 | s | 1 |
| MS4XLD0150N080 | 1.5 | 1.5 | 8 | 1.44 | 50 | 4 | 4 | s | 1 |
| MS4XLD0150N100 | 1.5 | 1.5 | 10 | 1.44 | 50 | 4 | 4 | s | 1 |
| MS4XLD0150N120 | 1.5 | 1.5 | 12 | 1.44 | 50 | 4 | 4 | s | 1 |
| MS4XLD0150N140 | 1.5 | 1.5 | 14 | 1.44 | 60 | 4 | 4 | s | 1 |
| MS4XLD0150N160 | 1.5 | 1.5 | 16 | 1.44 | 60 | 4 | 4 | s | 1 |
| MS4XLD0150N180 | 1.5 | 1.5 | 18 | 1.44 | 60 | 4 | 4 | s | 1 |
