CARBIDE

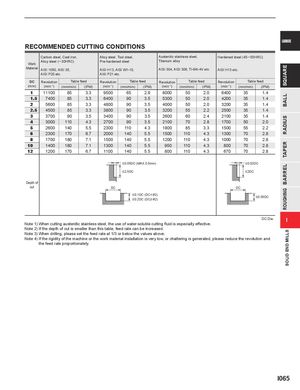

RECOMMENDED CUTTING CONDITIONS
| Work Material | Carbon ste Alloy steel ( AISI 1050, AISI P20 et | el, Cast iron, ─30HRC) AISI 35, c. | Alloy steel, T Pre-hardene AISI H13, AI AISI P21 etc | ool steel, d steel SI W1-10, . | Austenitic s Titanium all AISI 304, AI | tainless steel, oy SI 306, Ti-6Al | -4V etc. | Hardened st AISI H13 etc | eel (45─55H . | RC) | ||
| DC | Revolution | Table | feed | Revolution | Table | feed | Revolution | Table | feed | Revolution | Table | feed |
| (mm) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) | (min-1) | (mm/min) | (IPM) |
| 1 | 11100 | 85 | 3.3 | 9500 | 65 | 2.6 | 8000 | 50 | 2.0 | 6400 | 35 | 1.4 |
| 1.5 | 7400 | 85 | 3.3 | 6400 | 90 | 3.5 | 5300 | 50 | 2.0 | 4200 | 35 | 1.4 |
| 2 | 5600 | 85 | 3.3 | 4800 | 90 | 3.5 | 4000 | 50 | 2.0 | 3200 | 35 | 1.4 |
| 2.5 | 4500 | 85 | 3.3 | 3800 | 90 | 3.5 | 3200 | 55 | 2.2 | 2500 | 35 | 1.4 |
| 3 | 3700 | 90 | 3.5 | 3400 | 90 | 3.5 | 2600 | 60 | 2.4 | 2100 | 35 | 1.4 |
| 4 | 3000 | 110 | 4.3 | 2700 | 90 | 3.5 | 2100 | 70 | 2.8 | 1700 | 50 | 2.0 |
| 5 | 2600 | 140 | 5.5 | 2300 | 110 | 4.3 | 1800 | 85 | 3.3 | 1500 | 55 | 2.2 |
| 6 | 2300 | 170 | 6.7 | 2000 | 140 | 5.5 | 1500 | 110 | 4.3 | 1300 | 70 | 2.8 |
| 8 | 1700 | 180 | 7.1 | 1500 | 140 | 5.5 | 1200 | 110 | 4.3 | 1000 | 70 | 2.8 |
| 10 | 1400 | 180 | 7.1 | 1300 | 140 | 5.5 | 950 | 110 | 4.3 | 800 | 70 | 2.8 |
| 12 | 1200 | 170 | 6.7 | 1100 | 140 | 5.5 | 800 | 110 | 4.3 | 670 | 70 | 2.8 |
| Depth of | AX.0.5mm) | C | ||||||||||
| cut | DC | D | C | |||||||||
| DC (DC DC (DC>&2) | 0.05DC |
DC:Dia. I Note 1) When cutting austenitic stainless steel, the use of water-soluble cutting fluid is especially effective. Note 2) If the depth of cut is smaller than this table, feed rate can be increased. Note 3) When drilling, please set the feed rate at 1/3 or below the values above. Note 4) If the rigidity of the machine or the work material installation is very low, or chattering is generated, please reduce the revolution and the feed rate proportionately.
