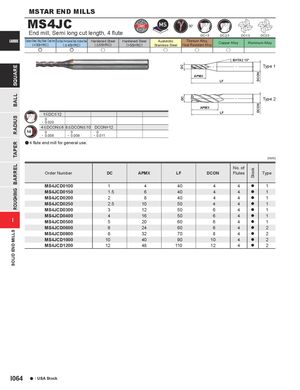

MS4JC
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel
| (<30HRC) | ( | ( | 55HRC) |
| < 45HRC) | < |
e e u
| 1 DC | 12 | ||
| 0 | |||
| - 0.020 | |||
| 4 | DCON | 6 8 DCON | 10 DCON=12 |
| 0 | 0 | 0 | |
| - 0.008 | - 0.009 | - 0.011 |
a4 flute end mill for general use.
Hardened Steel 55HRC)
Austenitic Stainless Steel u
DC<3 Titanium Alloy, Heat Resistant Alloy u
APMX
APMX
DC≥ 3 DC<3 DC 3
Copper Alloy Aluminum Alloy u BHTA2 15° Type 1
LF
Type 2 LF
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MS4JCD0100 | 1 | 4 | 40 | 4 | 4 | a | 1 |
| MS4JCD0150 | 1.5 | 6 | 40 | 4 | 4 | a | 1 |
| MS4JCD0200 | 2 | 8 | 40 | 4 | 4 | a | 1 |
| MS4JCD0250 | 2.5 | 10 | 50 | 4 | 4 | a | 1 |
| MS4JCD0300 | 3 | 12 | 50 | 6 | 4 | a | 1 |
| MS4JCD0400 | 4 | 16 | 50 | 6 | 4 | a | 1 |
| MS4JCD0500 | 5 | 20 | 60 | 6 | 4 | a | 1 |
| MS4JCD0600 | 6 | 24 | 60 | 6 | 4 | a | 2 |
| MS4JCD0800 | 8 | 32 | 70 | 8 | 4 | a | 2 |
| MS4JCD1000 | 10 | 40 | 90 | 10 | 4 | a | 2 |
| MS4JCD1200 | 12 | 48 | 110 | 12 | 4 | a | 2 |
