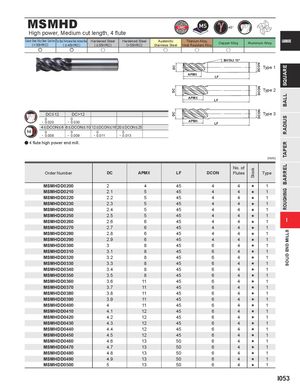

Общий каталог Mitsubishi 2020 - 2021 - страница 812
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
MSMHD
High power, Medium cut length, 4 flute
Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel
| (<30HRC) | ( | ( | (> |
| < 45HRC) | <55HRC) | 55HRC) |
e e u
| DC | 12 DC>12 | ||
| 0 | 0 | ||
| - 0.020 | - 0.030 | ||
| 4<DCON<6 8< DCON<10 12< DCON< 16 20< DCON<25 | |||
| 0 | 0 | 0 | 0 |
| - 0.008 | - 0.009 | - 0.011 | - 0.013 |
a 4 flute high power end mill.
Austenitic Stainless Steel u
Titanium Alloy, CARBIDE Copper Alloy Aluminum Alloy Heat Resistant Alloy u u BHTA2 15° Type 1 APMX LF Type 2 APMX LF Type 3 APMX LF
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MSMHDD0200 | 2 | 4 | 45 | 4 | 4 | s | 1 |
| MSMHDD0210 | 2.1 | 5 | 45 | 4 | 4 | s | 1 |
| MSMHDD0220 | 2.2 | 5 | 45 | 4 | 4 | s | 1 |
| MSMHDD0230 | 2.3 | 5 | 45 | 4 | 4 | s | 1 |
| MSMHDD0240 | 2.4 | 5 | 45 | 4 | 4 | s | 1 |
| MSMHDD0250 | 2.5 | 5 | 45 | 4 | 4 | s | 1 |
| MSMHDD0260 | 2.6 | 6 | 45 | 4 | 4 | s | 1 |
| MSMHDD0270 | 2.7 | 6 | 45 | 4 | 4 | s | 1 |
| MSMHDD0280 | 2.8 | 6 | 45 | 4 | 4 | s | 1 |
| MSMHDD0290 | 2.9 | 6 | 45 | 4 | 4 | s | 1 |
| MSMHDD0300 | 3 | 8 | 45 | 6 | 4 | s | 1 |
| MSMHDD0310 | 3.1 | 8 | 45 | 6 | 4 | s | 1 |
| MSMHDD0320 | 3.2 | 8 | 45 | 6 | 4 | s | 1 |
| MSMHDD0330 | 3.3 | 8 | 45 | 6 | 4 | s | 1 |
| MSMHDD0340 | 3.4 | 8 | 45 | 6 | 4 | s | 1 |
| MSMHDD0350 | 3.5 | 8 | 45 | 6 | 4 | s | 1 |
| MSMHDD0360 | 3.6 | 11 | 45 | 6 | 4 | s | 1 |
| MSMHDD0370 | 3.7 | 11 | 45 | 6 | 4 | s | 1 |
| MSMHDD0380 | 3.8 | 11 | 45 | 6 | 4 | s | 1 |
| MSMHDD0390 | 3.9 | 11 | 45 | 6 | 4 | s | 1 |
| MSMHDD0400 | 4 | 11 | 45 | 6 | 4 | s | 1 |
| MSMHDD0410 | 4.1 | 12 | 45 | 6 | 4 | s | 1 |
| MSMHDD0420 | 4.2 | 12 | 45 | 6 | 4 | s | 1 |
| MSMHDD0430 | 4.3 | 12 | 45 | 6 | 4 | s | 1 |
| MSMHDD0440 | 4.4 | 12 | 45 | 6 | 4 | s | 1 |
| MSMHDD0450 | 4.5 | 12 | 45 | 6 | 4 | s | 1 |
| MSMHDD0460 | 4.6 | 13 | 50 | 6 | 4 | s | 1 |
| MSMHDD0470 | 4.7 | 13 | 50 | 6 | 4 | s | 1 |
| MSMHDD0480 | 4.8 | 13 | 50 | 6 | 4 | s | 1 |
| MSMHDD0490 | 4.9 | 13 | 50 | 6 | 4 | s | 1 |
| MSMHDD0500 | 5 | 13 | 50 | 6 | 4 | s | 1 |
