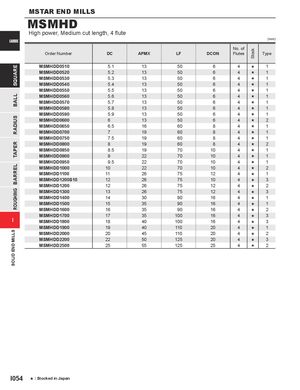

MSMHD
High power, Medium cut length, 4 flute
CARBIDE (mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MSMHDD0510 | 5.1 | 13 | 50 | 6 | 4 | s | 1 |
| MSMHDD0520 | 5.2 | 13 | 50 | 6 | 4 | s | 1 |
| MSMHDD0530 | 5.3 | 13 | 50 | 6 | 4 | s | 1 |
| MSMHDD0540 | 5.4 | 13 | 50 | 6 | 4 | s | 1 |
| MSMHDD0550 | 5.5 | 13 | 50 | 6 | 4 | s | 1 |
| MSMHDD0560 | 5.6 | 13 | 50 | 6 | 4 | s | 1 |
| MSMHDD0570 | 5.7 | 13 | 50 | 6 | 4 | s | 1 |
| MSMHDD0580 | 5.8 | 13 | 50 | 6 | 4 | s | 1 |
| MSMHDD0590 | 5.9 | 13 | 50 | 6 | 4 | s | 1 |
| MSMHDD0600 | 6 | 13 | 50 | 6 | 4 | s | 2 |
| MSMHDD0650 | 6.5 | 16 | 60 | 8 | 4 | s | 1 |
| MSMHDD0700 | 7 | 19 | 60 | 8 | 4 | s | 1 |
| MSMHDD0750 | 7.5 | 19 | 60 | 8 | 4 | s | 1 |
| MSMHDD0800 | 8 | 19 | 60 | 8 | 4 | s | 2 |
| MSMHDD0850 | 8.5 | 19 | 70 | 10 | 4 | s | 1 |
| MSMHDD0900 | 9 | 22 | 70 | 10 | 4 | s | 1 |
| MSMHDD0950 | 9.5 | 22 | 70 | 10 | 4 | s | 1 |
| MSMHDD1000 | 10 | 22 | 70 | 10 | 4 | s | 2 |
| MSMHDD1100 | 11 | 26 | 75 | 12 | 4 | s | 1 |
| MSMHDD1200S10 | 12 | 26 | 75 | 10 | 4 | s | 3 |
| MSMHDD1200 | 12 | 26 | 75 | 12 | 4 | s | 2 |
| MSMHDD1300 | 13 | 26 | 75 | 12 | 4 | s | 3 |
| MSMHDD1400 | 14 | 30 | 90 | 16 | 4 | s | 1 |
| MSMHDD1500 | 15 | 35 | 90 | 16 | 4 | s | 1 |
| MSMHDD1600 | 16 | 35 | 90 | 16 | 4 | s | 2 |
| MSMHDD1700 | 17 | 35 | 100 | 16 | 4 | s | 3 |
| MSMHDD1800 | 18 | 40 | 100 | 16 | 4 | s | 3 |
| MSMHDD1900 | 19 | 40 | 110 | 20 | 4 | s | 1 |
| MSMHDD2000 | 20 | 45 | 110 | 20 | 4 | s | 2 |
| MSMHDD2200 | 22 | 50 | 125 | 20 | 4 | s | 3 |
| MSMHDD2500 | 25 | 55 | 125 | 25 | 4 | s | 2 |
