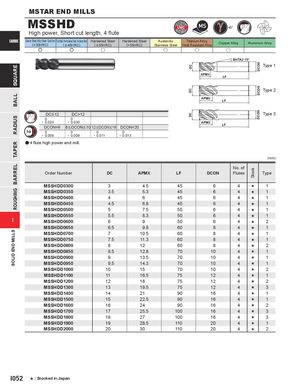

MSSHD
High power, Short cut length, 4 flute
CARBIDE Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel Hardened Steel Hardened Steel
| (<30HRC) | ( | ( | (> |
| < 45HRC) | <55HRC) | 55HRC) |
e e u
| DC | 12 DC>12 | ||
| 0 | 0 | ||
| - 0.020 | - 0.030 | ||
| DCON=6 8 | DCON | 10 12 | 16 DCON=20 DCON |
| 0 | 0 | 0 | 0 |
| - 0.008 | - 0.009 | - 0.011 | - 0.013 |
a 4 flute high power end mill.
Austenitic Stainless Steel u
Titanium Alloy, Heat Resistant Alloy u
APMX
APMX
APMX
Copper Alloy Aluminum Alloy u BHTA2 15° Type 1 LF Type 2 LF Type 3 LF
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MSSHDD0300 | 3 | 4.5 | 45 | 6 | 4 | s | 1 |
| MSSHDD0350 | 3.5 | 5.3 | 45 | 6 | 4 | s | 1 |
| MSSHDD0400 | 4 | 6 | 45 | 6 | 4 | s | 1 |
| MSSHDD0450 | 4.5 | 6.8 | 45 | 6 | 4 | s | 1 |
| MSSHDD0500 | 5 | 7.5 | 50 | 6 | 4 | s | 1 |
| MSSHDD0550 | 5.5 | 8.3 | 50 | 6 | 4 | s | 1 |
| MSSHDD0600 | 6 | 9 | 50 | 6 | 4 | s | 2 |
| MSSHDD0650 | 6.5 | 9.8 | 60 | 8 | 4 | s | 1 |
| MSSHDD0700 | 7 | 10.5 | 60 | 8 | 4 | s | 1 |
| MSSHDD0750 | 7.5 | 11.3 | 60 | 8 | 4 | s | 1 |
| MSSHDD0800 | 8 | 12 | 60 | 8 | 4 | s | 2 |
| MSSHDD0850 | 8.5 | 12.8 | 70 | 10 | 4 | s | 1 |
| MSSHDD0900 | 9 | 13.5 | 70 | 10 | 4 | s | 1 |
| MSSHDD0950 | 9.5 | 14.3 | 70 | 10 | 4 | s | 1 |
| MSSHDD1000 | 10 | 15 | 70 | 10 | 4 | s | 2 |
| MSSHDD1100 | 11 | 16.5 | 75 | 12 | 4 | s | 1 |
| MSSHDD1200 | 12 | 18 | 75 | 12 | 4 | s | 2 |
| MSSHDD1300 | 13 | 19.5 | 75 | 12 | 4 | s | 3 |
| MSSHDD1400 | 14 | 21 | 90 | 16 | 4 | s | 1 |
| MSSHDD1500 | 15 | 22.5 | 90 | 16 | 4 | s | 1 |
| MSSHDD1600 | 16 | 24 | 90 | 16 | 4 | s | 2 |
| MSSHDD1700 | 17 | 25.5 | 100 | 16 | 4 | s | 3 |
| MSSHDD1800 | 18 | 27 | 100 | 16 | 4 | s | 3 |
| MSSHDD1900 | 19 | 28.5 | 110 | 20 | 4 | s | 1 |
| MSSHDD2000 | 20 | 30 | 110 | 20 | 4 | s | 2 |
