CARBIDE

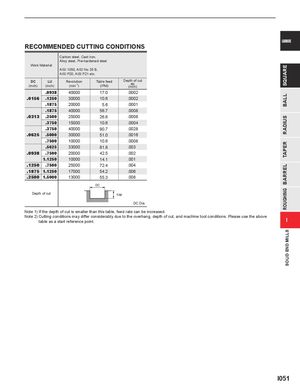

RECOMMENDED CUTTING CONDITIONS
| Work M | aterial | Carbon steel, Cas Alloy steel, Pre-ha AISI 1050, AISI N AISI P20, AISI P2 | t iron, rdened steel o 35 B, 1 etc. | Dthft |
| DC (inch) | LU (inch) | Revolution (min-1) | Table feed (IPM) | ep o cu ap (inch) |
| .0938 | 40000 | 17.0 | .0002 | |
| .0156 | .1250 | 30000 | 10.6 | .0002 |
| .1875 | 20000 | 5.6 | .0001 | |
| .1875 | 40000 | 56.7 | .0008 | |
| .0313 | .2500 | 25000 | 26.6 | .0008 |
| .3750 | 15000 | 10.6 | .0004 | |
| .3750 | 40000 | 90.7 | .0028 | |
| .0625 | .5000 | 30000 | 51.0 | .0016 |
| .7500 | 10000 | 10.6 | .0008 | |
| .5625 | 33000 | 81.8 | .003 | |
| .0938 | .7500 | 20000 | 42.5 | .002 |
| 1.1250 | 10000 | 14.1 | .001 | |
| .1250 | .7500 | 25000 | 72.4 | .004 |
| .1875 | 1.1250 | 17000 | 54.2 | .006 |
| .2500 | 1.5000 | 13000 | 55.3 | .008 |
| DC | ||||
| Depth | of cut | ap DC:Dia. |
Note 1) If the depth of cut is smaller than this table, feed rate can be increased. Note 2) Cutting conditions may differ considerably due to the overhang, depth of cut, and machine tool conditions. Please use the above I table as a start reference point.
