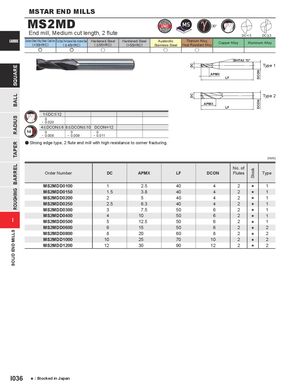

Общий каталог Mitsubishi 2020 - 2021 - страница 795
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
MS2MD
| CARBIDE | Carbon Steel, Alloy Steel, Cast Iron Tool Steel, Pre-Hardened Steel, Hardened Steel | Hardened Steel | Hardened Steel | Austenitic | ||||
| (<30HRC) | ( | ( 55HRC) | (> | |||||
| < 45HRC) | < | 55HRC) | Stainless Steel |
e e u u
1<DC< 12 0 - 0.020
| 4 | DCON | 6 8 | DCON | 10 DCON=12 | |
| 0 | 0 | 0 | |||
| - 0.008 | - 0.009 | - 0.011 |
a Strong edge type, 2 flute end mill with high resistance to corner fracturing.
DC˂3 DC≥3 Titanium Alloy,
Heat Resistant Alloy Copper Alloy Aluminum Alloy
u BHTA2 15° Type 1 APMX
LF
Type 2 APMX LF
(mm)
| Order Number | DC | APMX | LF | DCON | No. of Flutes | Stock | Type |
| MS2MDD0100 | 1 | 2.5 | 40 | 4 | 2 | s | 1 |
| MS2MDD0150 | 1.5 | 3.8 | 40 | 4 | 2 | s | 1 |
| MS2MDD0200 | 2 | 5 | 40 | 4 | 2 | s | 1 |
| MS2MDD0250 | 2.5 | 6.3 | 40 | 4 | 2 | s | 1 |
| MS2MDD0300 | 3 | 7.5 | 50 | 6 | 2 | s | 1 |
| MS2MDD0400 | 4 | 10 | 50 | 6 | 2 | s | 1 |
| MS2MDD0500 | 5 | 12.5 | 50 | 6 | 2 | s | 1 |
| MS2MDD0600 | 6 | 15 | 50 | 6 | 2 | s | 2 |
| MS2MDD0800 | 8 | 20 | 60 | 8 | 2 | s | 2 |
| MS2MDD1000 | 10 | 25 | 70 | 10 | 2 | s | 2 |
| MS2MDD1200 | 12 | 30 | 90 | 12 | 2 | s | 2 |
