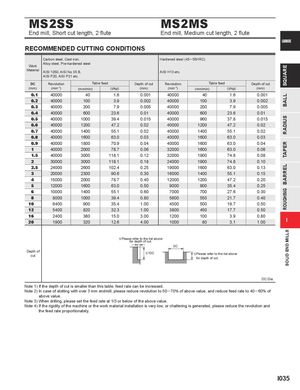

MS2SS MS2MS
End mill, Short cut length, 2 flute End mill, Medium cut length, 2 flute
CARBIDE
RECOMMENDED CUTTING CONDITIONS
| Work Material | Carbon steel, Cast Alloy steel, Pre-ha AISI 1050, AISI No AISI P20, AISI P21 | iron, rdened steel 35 B, etc. | Hardened steel ( AISI H13 etc. | 45─55HRC) | ||||
| DC | Revolution | Table | feed | Depth of cut | Revolution | Table | feed | Depth of cut |
| (mm) | (min-1) | (mm/min) | (IPM) | (mm) | (min-1) | (mm/min) | (IPM) | (mm) |
| 0.1 | 40000 | 40 | 1.6 | 0.001 | 40000 | 40 | 1.6 | 0.001 |
| 0.2 | 40000 | 100 | 3.9 | 0.002 | 40000 | 100 | 3.9 | 0.002 |
| 0.3 | 40000 | 200 | 7.9 | 0.005 | 40000 | 200 | 7.9 | 0.005 |
| 0.4 | 40000 | 600 | 23.6 | 0.01 | 40000 | 600 | 23.6 | 0.01 |
| 0.5 | 40000 | 1000 | 39.4 | 0.015 | 40000 | 960 | 37.8 | 0.015 |
| 0.6 | 40000 | 1200 | 47.2 | 0.02 | 40000 | 1200 | 47.2 | 0.02 |
| 0.7 | 40000 | 1400 | 55.1 | 0.02 | 40000 | 1400 | 55.1 | 0.02 |
| 0.8 | 40000 | 1600 | 63.0 | 0.03 | 40000 | 1600 | 63.0 | 0.03 |
| 0.9 | 40000 | 1800 | 70.9 | 0.04 | 40000 | 1600 | 63.0 | 0.04 |
| 1 | 40000 | 2000 | 78.7 | 0.06 | 32000 | 1600 | 63.0 | 0.06 |
| 1.5 | 40000 | 3000 | 118.1 | 0.12 | 32000 | 1900 | 74.8 | 0.08 |
| 2 | 30000 | 3000 | 118.1 | 0.18 | 24000 | 1900 | 74.8 | 0.10 |
| 2.5 | 24000 | 2600 | 102.4 | 0.25 | 19000 | 1600 | 63.0 | 0.13 |
| 3 | 20000 | 2300 | 90.6 | 0.30 | 16000 | 1400 | 55.1 | 0.15 |
| 4 | 15000 | 2000 | 78.7 | 0.40 | 12000 | 1200 | 47.2 | 0.20 |
| 5 | 12000 | 1600 | 63.0 | 0.50 | 9000 | 900 | 35.4 | 0.25 |
| 6 | 10000 | 1400 | 55.1 | 0.60 | 7000 | 700 | 27.6 | 0.30 |
| 8 | 8000 | 1000 | 39.4 | 0.80 | 5600 | 550 | 21.7 | 0.40 |
| 10 | 6400 | 900 | 35.4 | 1.00 | 4500 | 500 | 19.7 | 0.50 |
| 12 | 5400 | 820 | 32.3 | 1.00 | 3800 | 450 | 17.7 | 0.50 |
| 16 | 2400 | 380 | 15.0 | 3.00 | 1200 | 100 | 3.9 | 0.80 |
| 20 | 1900 | 320 | 12.6 | 4.00 | 1000 | 80 | 3.1 | 1.00 |
| Dth f | ase refer to the list ab for depth of cut. | DC ove | ||||||
| ep o cut | for depth of cut. | the list above |
DC:Dia. Note 1) If the depth of cut is smaller than this table, feed rate can be increased. Note 2) In case of slotting with over 3 mm endmill, please reduce revolution to 50─70% of above value, and reduce feed rate to 40─60% of above value. Note 3) When drilling, please set the feed rate at 1/3 or below of the above value. Note 4) If the rigidity of the machine or the work material installation is very low, or chattering is generated, please reduce the revolution and the feed rate proportionately.
