CARBIDE

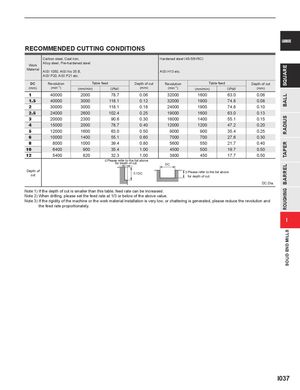

RECOMMENDED CUTTING CONDITIONS
| Work Material | Carbon steel, Cas Alloy steel, Pre-ha AISI 1050, AISI N AISI P20, AISI P2 | t iron, rdened steel o 35 B, 1 etc. | Hardened steel(4 AISI H13 etc. | 5-55HRC) | ||||
| DC | Revolution | Table | feed | Depth of cut | Revolution | Table | feed | Depth of cut |
| (mm) | (min-1) | (mm/min) | (IPM) | (mm) | (min-1) | (mm/min) | (IPM) | (mm) |
| 1 | 40000 | 2000 | 78.7 | 0.06 | 32000 | 1600 | 63.0 | 0.06 |
| 1.5 | 40000 | 3000 | 118.1 | 0.12 | 32000 | 1900 | 74.8 | 0.08 |
| 2 | 30000 | 3000 | 118.1 | 0.18 | 24000 | 1900 | 74.8 | 0.10 |
| 2.5 | 24000 | 2600 | 102.4 | 0.25 | 19000 | 1600 | 63.0 | 0.13 |
| 3 | 20000 | 2300 | 90.6 | 0.30 | 16000 | 1400 | 55.1 | 0.15 |
| 4 | 15000 | 2000 | 78.7 | 0.40 | 12000 | 1200 | 47.2 | 0.20 |
| 5 | 12000 | 1600 | 63.0 | 0.50 | 9000 | 900 | 35.4 | 0.25 |
| 6 | 10000 | 1400 | 55.1 | 0.60 | 7000 | 700 | 27.6 | 0.30 |
| 8 | 8000 | 1000 | 39.4 | 0.80 | 5600 | 550 | 21.7 | 0.40 |
| 10 | 6400 | 900 | 35.4 | 1.00 | 4500 | 500 | 19.7 | 0.50 |
| 12 | 5400 | 820 | 32.3 | 1.00 | 3800 | 450 | 17.7 | 0.50 |
| Depth of cut | for depth | 1DC the list above of cut. | DC < f | Please refer to the lis or depth of cut. | t above | DC:Dia. |
Note 1) If the depth of cut is smaller than this table, feed rate can be increased. Note 2) When drilling, please set the feed rate at 1/3 or below of the above value. Note 3) If the rigidity of the machine or the work material installation is very low, or chattering is generated, please reduce the revolution and the feed rate proportionately.
