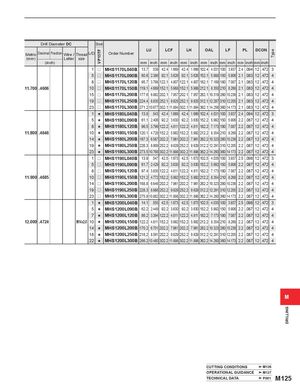

Общий каталог Mitsubishi 2020 - 2021 - страница 1598

Предыдущая страница Следующая страница

Навигация

VP15TF Type DRILLING Drill Diameter DC Stock Metric Decimal Fraction Wire / Thread L/D LUOrder NumberLCF LH OAL LF PL DCON (mm) Letter size (inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch 1 r MHS1170L040B 13.7 .539 42.4 1.669 42.4 1.669 102.4 4.031 100 3.937 2.4 .094 12 .472 3 5 r MHS1170L090B 60.6 2.386 92.1 3.626 92.1 3.626 152.1 5.988 150 5.906 2.1 .083 12 .472 4 8 r MHS1170L120B 95.7 3.768 122.1 4.807 122.1 4.807 182.1 7.169 180 7.087 2.1 .083 12 .472 4 11.700 .4606 10 r MHS1170L150B 119.1 4.689 152.1 5.988 152.1 5.988 212.1 8.350 210 8.268 2.1 .083 12 .472 4 15 r MHS1170L200B 177.6 6.992 202.1 7.957 202.1 7.957 262.1 10.319 260 10.236 2.1 .083 12 .472 4 19 r MHS1170L250B 224.4 8.835 252.1 9.925 252.1 9.925 312.1 12.287 310 12.205 2.1 .083 12 .472 4 23 r MHS1170L300B 271.2 10.677 302.1 11.894 302.1 11.894 362.1 14.256 360 14.173 2.1 .083 12 .472 4 1 s MHS1180L040B 13.8 .543 42.4 1.669 42.4 1.669 102.4 4.031 100 3.937 2.4 .094 12 .472 3 5 s MHS1180L090B 61.1 2.406 92.2 3.630 92.2 3.630 152.2 5.992 150 5.906 2.2 .087 12 .472 4 8 s MHS1180L120B 96.5 3.799 122.2 4.811 122.2 4.811 182.2 7.173 180 7.087 2.2 .087 12 .472 4 11.800 .4646 10 s MHS1180L150B 120.1 4.728 152.2 5.992 152.2 5.992 212.2 8.354 210 8.268 2.2 .087 12 .472 4 14 s MHS1180L200B 167.3 6.587 202.2 7.961 202.2 7.961 262.2 10.323 260 10.236 2.2 .087 12 .472 4 19 s MHS1180L250B 226.3 8.909 252.2 9.929 252.2 9.929 312.2 12.291 310 12.205 2.2 .087 12 .472 4 23 s MHS1180L300B 273.5 10.768 302.2 11.898 302.2 11.898 362.2 14.260 360 14.173 2.2 .087 12 .472 4 1 r MHS1190L040B 13.9 .547 42.5 1.673 42.5 1.673 102.5 4.035 100 3.937 2.5 .098 12 .472 3 5 r MHS1190L090B 61.7 2.429 92.2 3.630 92.2 3.630 152.2 5.992 150 5.906 2.2 .087 12 .472 4 8 r MHS1190L120B 97.4 3.835 122.2 4.811 122.2 4.811 182.2 7.173 180 7.087 2.2 .087 12 .472 4 11.900 .4685 10 r MHS1190L150B 121.2 4.772 152.2 5.992 152.2 5.992 212.2 8.354 210 8.268 2.2 .087 12 .472 4 14 r MHS1190L200B 168.8 6.646 202.2 7.961 202.2 7.961 262.2 10.323 260 10.236 2.2 .087 12 .472 4 19 r MHS1190L250B 228.3 8.988 252.2 9.929 252.2 9.929 312.2 12.291 310 12.205 2.2 .087 12 .472 4 23 r MHS1190L300B 275.9 10.862 302.2 11.898 302.2 11.898 362.2 14.260 360 14.173 2.2 .087 12 .472 4 1 s MHS1200L040B 14.1 .555 42.5 1.673 42.5 1.673 102.5 4.035 100 3.937 2.5 .098 12 .472 3 5 s MHS1200L090B 62.2 2.449 92.2 3.630 92.2 3.630 152.2 5.992 150 5.906 2.2 .087 12 .472 4 7 s MHS1200L120B 86.2 3.394 122.2 4.811 122.2 4.811 182.2 7.173 180 7.087 2.2 .087 12 .472 4 12.000 .4724 M14x2.0 10 s MHS1200L150B 122.2 4.811 152.2 5.992 152.2 5.992 212.2 8.354 210 8.268 2.2 .087 12 .472 4 14 s MHS1200L200B 170.2 6.701 202.2 7.961 202.2 7.961 262.2 10.323 260 10.236 2.2 .087 12 .472 4 18 s MHS1200L250B 218.2 8.591 252.2 9.929 252.2 9.929 312.2 12.291 310 12.205 2.2 .087 12 .472 4 22 s MHS1200L300B 266.2 10.480 302.2 11.898 302.2 11.898 362.2 14.260 360 14.173 2.2 .087 12 .472 4 M CUTTING CONDITIONS M126 OPERATIONAL GUIDANCE M127 TECHNICAL DATA P001 M125
