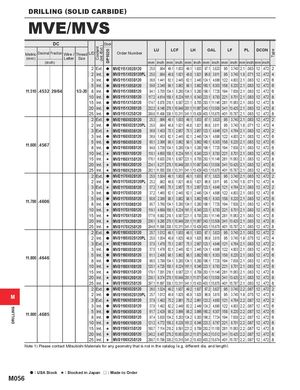

Общий каталог Mitsubishi 2020 - 2021 - страница 1529

DRILLING (SOLID CARBIDE)

MVE/MVS
DC Stock


(Int./Ext.)
Coolant
LU LCF LH OAL LF PL DCON


Type
DP1020
Metric Decimal Fraction Wire / Thread L/D Order Number
(mm) Letter Size
(inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch
2 Ext. a MVE1151X02S120 25.0 .984 49.1 1.933 49.1 1.933 97.1 3.823 95 3.740 2.1 .083 12 .472 2
2 Int. a MVS1151X02S120PL 25.0 .984 48.8 1.921 48.8 1.921 96.8 3.811 95 3.740 1.8 .071 12 .472 4
3 Int. a MVS1151X03S120 36.6 1.441 62.1 2.445 62.1 2.445 124.1 4.886 122 4.803 2.1 .083 12 .472 6
5 Int. a MVS1151X05S120 59.6 2.346 98.1 3.862 98.1 3.862 160.1 6.303 158 6.220 2.1 .083 12 .472 6
11.510 .4532 29/64 1/2-20 8 Int. a MVS1151X08S120 94.1 3.705 134.1 5.280 134.1 5.280 196.1 7.720 194 7.638 2.1 .083 12 .472 6
10 Int. a MVS1151X10S120 117.2 4.614 158.1 6.224 161.1 6.343 223.1 8.783 221 8.701 2.1 .083 12 .472 8
15 Int. a MVS1151X15S120 174.7 6.878 218.1 8.587 221.1 8.705 283.1 11.146 281 11.063 2.1 .083 12 .472 8
20 Int. a MVS1151X20S120 232.3 9.146 278.1 10.949 281.1 11.067 343.1 13.508 341 13.425 2.1 .083 12 .472 8
25 Int. a MVS1151X25S120 289.8 11.409 338.1 13.311 341.1 13.429 403.1 15.870 401 15.787 2.1 .083 12 .472 8
2 Ext. a MVE1160X02S120 25.3 .996 49.1 1.933 49.1 1.933 97.1 3.823 95 3.740 2.1 .083 12 .472 2
2 Int. a MVS1160X02S120PL 25.0 .984 48.8 1.921 48.8 1.921 96.8 3.811 95 3.740 1.8 .071 12 .472 4
3 Ext. s MVE1160X03S120 36.9 1.453 75.1 2.957 75.1 2.957 123.1 4.846 121 4.764 2.1 .083 12 .472 2
3 Int. a MVS1160X03S120 36.9 1.453 62.1 2.445 62.1 2.445 124.1 4.886 122 4.803 2.1 .083 12 .472 6
5 Int. a MVS1160X05S120 60.1 2.366 98.1 3.862 98.1 3.862 160.1 6.303 158 6.220 2.1 .083 12 .472 6
11.600 .4567
8 Int. a MVS1160X08S120 94.9 3.736 134.1 5.280 134.1 5.280 196.1 7.720 194 7.638 2.1 .083 12 .472 6
10 Int. s MVS1160X10S120 118.1 4.650 158.1 6.224 161.1 6.343 223.1 8.783 221 8.701 2.1 .083 12 .472 8
15 Int. s MVS1160X15S120 176.1 6.933 218.1 8.587 221.1 8.705 283.1 11.146 281 11.063 2.1 .083 12 .472 8
20 Int. s MVS1160X20S120 234.1 9.217 278.1 10.949 281.1 11.067 343.1 13.508 341 13.425 2.1 .083 12 .472 8
25 Int. s MVS1160X25S120 292.1 11.500 338.1 13.311 341.1 13.429 403.1 15.870 401 15.787 2.1 .083 12 .472 8
2 Ext. a MVE1170X02S120 25.5 1.004 49.1 1.933 49.1 1.933 97.1 3.823 95 3.740 2.1 .083 12 .472 2
2 Int. a MVS1170X02S120PL 25.2 .992 48.8 1.921 48.8 1.921 96.8 3.811 95 3.740 1.8 .071 12 .472 4
3 Ext. s MVE1170X03S120 37.2 1.465 75.1 2.957 75.1 2.957 123.1 4.846 121 4.764 2.1 .083 12 .472 2
3 Int. a MVS1170X03S120 37.2 1.465 62.1 2.445 62.1 2.445 124.1 4.886 122 4.803 2.1 .083 12 .472 6
5 Int. a MVS1170X05S120 60.6 2.386 98.1 3.862 98.1 3.862 160.1 6.303 158 6.220 2.1 .083 12 .472 6
11.700 .4606
8 Int. a MVS1170X08S120 95.7 3.768 134.1 5.280 134.1 5.280 196.1 7.720 194 7.638 2.1 .083 12 .472 6
10 Int. s MVS1170X10S120 119.1 4.689 158.1 6.224 161.1 6.343 223.1 8.783 221 8.701 2.1 .083 12 .472 8
15 Int. s MVS1170X15S120 177.6 6.992 218.1 8.587 221.1 8.705 283.1 11.146 281 11.063 2.1 .083 12 .472 8
20 Int. s MVS1170X20S120 236.1 9.295 278.1 10.949 281.1 11.067 343.1 13.508 341 13.425 2.1 .083 12 .472 8
25 Int. s MVS1170X25S120 294.6 11.598 338.1 13.311 341.1 13.429 403.1 15.870 401 15.787 2.1 .083 12 .472 8
2 Ext. a MVE1180X02S120 25.7 1.012 49.1 1.933 49.1 1.933 97.1 3.823 95 3.740 2.1 .083 12 .472 2
2 Int. a MVS1180X02S120PL 25.5 1.004 48.9 1.925 48.9 1.925 96.9 3.815 95 3.740 1.9 .075 12 .472 4
3 Ext. s MVE1180X03S120 37.5 1.476 75.1 2.957 75.1 2.957 123.1 4.846 121 4.764 2.1 .083 12 .472 2
3 Int. a MVS1180X03S120 37.5 1.476 62.1 2.445 62.1 2.445 124.1 4.886 122 4.803 2.1 .083 12 .472 6
5 Int. a MVS1180X05S120 61.1 2.406 98.1 3.862 98.1 3.862 160.1 6.303 158 6.220 2.1 .083 12 .472 6
11.800 .4646
8 Int. a MVS1180X08S120 96.5 3.799 134.1 5.280 134.1 5.280 196.1 7.720 194 7.638 2.1 .083 12 .472 6
10 Int. s MVS1180X10S120 120.1 4.728 158.1 6.224 161.1 6.346 223.1 8.783 221 8.701 2.1 .083 12 .472 8
15 Int. s MVS1180X15S120 179.1 7.051 218.1 8.587 221.1 8.709 283.1 11.146 281 11.063 2.1 .083 12 .472 8
20 Int. s MVS1180X20S120 238.1 9.374 278.1 10.949 281.1 11.071 343.1 13.508 341 13.425 2.1 .083 12 .472 8
25 Int. s MVS1180X25S120 297.1 11.697 338.1 13.311 341.1 13.433 403.1 15.870 401 15.787 2.1 .083 12 .472 8
2 Ext. a MVE1190X02S120 26.0 1.024 49.2 1.937 49.2 1.937 97.2 3.827 95 3.740 2.2 .087 12 .472 2
2 Int. a MVS1190X02S120PL 25.7 1.012 48.9 1.925 48.9 1.925 96.9 3.815 95 3.740 1.9 .075 12 .472 4
M
3 Ext. s MVE1190X03S120 37.9 1.492 75.2 2.961 75.2 2.961 123.2 4.850 121 4.764 2.2 .087 12 .472 2
3 Int. a MVS1190X03S120 37.9 1.492 62.2 2.449 62.2 2.449 124.2 4.890 122 4.803 2.2 .087 12 .472 6
DRILLING


5 Int. a MVS1190X05S120 61.7 2.429 98.2 3.866 98.2 3.866 160.2 6.307 158 6.220 2.2 .087 12 .472 6
11.900 .4685
8 Int. a MVS1190X08S120 97.4 3.835 134.2 5.283 134.2 5.283 196.2 7.724 194 7.638 2.2 .087 12 .472 6
10 Int. s MVS1190X10S120 121.2 4.772 158.2 6.228 161.2 6.346 223.2 8.787 221 8.701 2.2 .087 12 .472 8
15 Int. s MVS1190X15S120 180.7 7.114 218.2 8.591 221.2 8.709 283.2 11.150 281 11.063 2.2 .087 12 .472 8
20 Int. s MVS1190X20S120 240.2 9.457 278.2 10.953 281.2 11.071 343.2 13.512 341 13.425 2.2 .087 12 .472 8
25 Int. s MVS1190X25S120 299.7 11.799 338.2 13.315 341.2 13.433 403.2 15.874 401 15.787 2.2 .087 12 .472 8
Note 1) Please contact Mitsubishi Materials for any geometry that is not in the catalog (e.g. different dia. and length).


a : USA Stock s : Stocked in Japan r : Made to Order
M056
