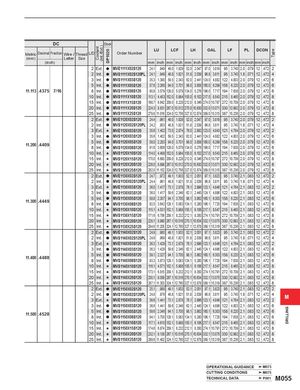

Coolant (Int./Ext.) DP1020 Type DRILLING DC Stock Metric Decimal Fraction Wire / Thread L/D Order Number LU LCF LH OAL LF PL DCON (mm) Letter Size (inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch 2 Ext. a MVE1111X02S120 24.1 .949 49.0 1.929 52.0 2.047 97.0 3.819 95 3.740 2.0 .079 12 .472 2 2 Int. a MVS1111X02S120PL 24.1 .949 48.8 1.921 51.8 2.039 96.8 3.811 95 3.740 1.8 .071 12 .472 4 3 Int. a MVS1111X03S120 35.3 1.390 59.5 2.343 62.0 2.441 124.0 4.882 122 4.803 2.0 .079 12 .472 6 5 Int. a MVS1111X05S120 57.6 2.268 94.0 3.701 98.0 3.858 160.0 6.299 158 6.220 2.0 .079 12 .472 6 11.113 .4375 7/16 8 Int. a MVS1111X08S120 90.9 3.579 129.0 5.079 134.0 5.276 196.0 7.717 194 7.638 2.0 .079 12 .472 6 10 Int. a MVS1111X10S120 113.1 4.453 152.0 5.984 155.0 6.102 217.0 8.543 215 8.465 2.0 .079 12 .472 8 15 Int. a MVS1111X15S120 168.7 6.642 209.0 8.228 212.0 8.346 274.0 10.787 272 10.709 2.0 .079 12 .472 8 20 Int. a MVS1111X20S120 224.3 8.831 267.0 10.512 270.0 10.630 332.0 13.071 330 12.992 2.0 .079 12 .472 8 25 Int. a MVS1111X25S120 279.8 11.016 324.0 12.756 327.0 12.874 389.0 15.315 387 15.236 2.0 .079 12 .472 8 2 Ext. a MVE1120X02S120 24.4 .961 49.0 1.929 52.0 2.047 97.0 3.819 95 3.740 2.0 .079 12 .472 2 2 Int. a MVS1120X02S120PL 24.2 .953 48.8 1.921 51.8 2.039 96.8 3.811 95 3.740 1.8 .071 12 .472 4 3 Ext. s MVE1120X03S120 35.6 1.402 73.0 2.874 76.0 2.992 123.0 4.843 121 4.764 2.0 .079 12 .472 2 3 Int. a MVS1120X03S120 35.6 1.402 59.5 2.343 62.0 2.441 124.0 4.882 122 4.803 2.0 .079 12 .472 6 11.200 .4409 5 Int. a MVS1120X05S120 58.0 2.283 94.0 3.701 98.0 3.858 160.0 6.299 158 6.220 2.0 .079 12 .472 68Int.aMVS1120X08S12091.63.606 129.05.079 134.05.276 196.07.7171947.6382.0.07912.4726 10 Int. s MVS1120X10S120 114.0 4.488 152.0 5.984 155.0 6.102 217.0 8.543 215 8.465 2.0 .079 12 .472 8 15 Int. s MVS1120X15S120 170.0 6.693 209.0 8.228 212.0 8.346 274.0 10.787 272 10.709 2.0 .079 12 .472 8 20 Int. s MVS1120X20S120 226.0 8.898 267.0 10.512 270.0 10.630 332.0 13.071 330 12.992 2.0 .079 12 .472 8 25 Int. s MVS1120X25S120 282.0 11.102 324.0 12.756 327.0 12.874 389.0 15.315 387 15.236 2.0 .079 12 .472 8 2 Ext. a MVE1130X02S120 24.7 .972 49.1 1.933 52.1 2.051 97.1 3.823 95 3.740 2.1 .083 12 .472 2 2 Int. a MVS1130X02S120PL 24.4 .961 48.8 1.921 51.8 2.039 96.8 3.811 95 3.740 1.8 .071 12 .472 4 3 Ext. s MVE1130X03S120 36.0 1.417 73.1 2.878 76.1 2.996 123.1 4.846 121 4.764 2.1 .083 12 .472 2 3 Int. a MVS1130X03S120 36.0 1.417 59.6 2.346 62.1 2.445 124.1 4.886 122 4.803 2.1 .083 12 .472 6 11.300 .4449 5 Int. a MVS1130X05S120 58.6 2.307 94.1 3.705 98.1 3.862 160.1 6.303 158 6.220 2.1 .083 12 .472 68Int.aMVS1130X08S12092.53.642 129.15.083 134.15.280 196.17.7201947.6382.1.08312.4726 10 Int. s MVS1130X10S120 115.1 4.531 152.1 5.988 155.1 6.106 217.1 8.547 215 8.465 2.1 .083 12 .472 8 15 Int. s MVS1130X15S120 171.6 6.756 209.1 8.232 212.1 8.350 274.1 10.791 272 10.709 2.1 .083 12 .472 8 20 Int. s MVS1130X20S120 228.1 8.980 267.1 10.516 270.1 10.634 332.1 13.075 330 12.992 2.1 .083 12 .472 8 25 Int. s MVS1130X25S120 284.6 11.205 324.1 12.760 327.1 12.878 389.1 15.319 387 15.236 2.1 .083 12 .472 8 2 Ext. a MVE1140X02S120 24.9 .980 49.1 1.933 52.1 2.051 97.1 3.823 95 3.740 2.1 .083 12 .472 2 2 Int. a MVS1140X02S120PL 24.6 .969 48.8 1.921 51.8 2.039 96.8 3.811 95 3.740 1.8 .071 12 .472 4 3 Ext. s MVE1140X03S120 36.3 1.429 73.1 2.878 76.1 2.996 123.1 4.846 121 4.764 2.1 .083 12 .472 2 3 Int. a MVS1140X03S120 36.3 1.429 59.6 2.346 62.1 2.445 124.1 4.886 122 4.803 2.1 .083 12 .472 6 11.400 .4488 5 Int. a MVS1140X05S120 59.1 2.327 94.1 3.705 98.1 3.862 160.1 6.303 158 6.220 2.1 .083 12 .472 68Int.aMVS1140X08S12093.33.673 129.15.083 134.15.280 196.17.7201947.6382.1.08312.4726 10 Int. s MVS1140X10S120 116.1 4.571 152.1 5.988 155.1 6.106 217.1 8.547 215 8.465 2.1 .083 12 .472 8 15 Int. s MVS1140X15S120 173.1 6.815 209.1 8.232 212.1 8.350 274.1 10.791 272 10.709 2.1 .083 12 .472 8 20 Int. s MVS1140X20S120 230.1 9.059 267.1 10.516 270.1 10.634 332.1 13.075 330 12.992 2.1 .083 12 .472 8 25 Int. s MVS1140X25S120 287.1 11.303 324.1 12.760 327.1 12.878 389.1 15.319 387 15.236 2.1 .083 12 .472 8 2 Ext. a MVE1150X02S120 25.1 .988 49.1 1.933 52.1 2.051 97.1 3.823 95 3.740 2.1 .083 12 .472 2 2 Int. a MVS1150X02S120PL 24.8 .976 48.8 1.921 51.8 2.039 96.8 3.811 95 3.740 1.8 .071 12 .472 43Ext.sMVE1150X03S12036.61.44173.12.87876.12.996 123.14.8461214.7642.1.08312.4722M 3 Int. a MVS1150X03S120 36.6 1.441 59.6 2.346 62.1 2.445 124.1 4.886 122 4.803 2.1 .083 12 .472 6 11.500 .4528 5 Int. a MVS1150X05S120 59.6 2.346 94.1 3.705 98.1 3.862 160.1 6.303 158 6.220 2.1 .083 12 .472 68Int.aMVS1150X08S12094.13.705 129.15.083 134.15.280 196.17.7201947.6382.1.08312.4726 10 Int. s MVS1150X10S120 117.1 4.610 152.1 5.988 155.1 6.106 217.1 8.547 215 8.465 2.1 .083 12 .472 8 15 Int. s MVS1150X15S120 174.6 6.874 209.1 8.232 212.1 8.350 274.1 10.791 272 10.709 2.1 .083 12 .472 8 20 Int. s MVS1150X20S120 232.1 9.138 267.1 10.516 270.1 10.634 332.1 13.075 330 12.992 2.1 .083 12 .472 8 25 Int. s MVS1150X25S120 289.6 11.402 324.1 12.760 327.1 12.878 389.1 15.319 387 15.236 2.1 .083 12 .472 8 OPERATIONAL GUIDANCE M073 CUTTING CONDITIONS M075 TECHNICAL DATA P001 M055
