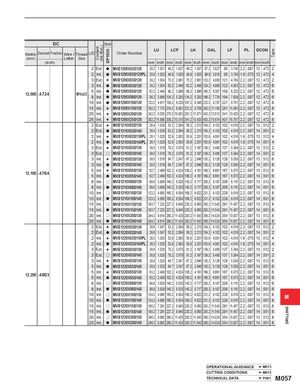

Общий каталог Mitsubishi 2020 - 2021 - страница 1530
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
DC Stock
(Int./Ext.)
Coolant
LU LCF LH OAL LF PL DCON
Type
DP1020
Metric Decimal Fraction Wire / Thread L/D Order Number
(mm) Letter Size
(inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch
2 Ext. a MVE1200X02S120 26.2 1.031 49.2 1.937 49.2 1.937 97.2 3.827 95 3.740 2.2 .087 12 .472 2
2 Int. a MVS1200X02S120PL 25.9 1.020 48.9 1.925 48.9 1.925 96.9 3.815 95 3.740 1.9 .075 12 .472 4
3 Ext. s MVE1200X03S120 38.2 1.504 75.2 2.961 75.2 2.961 123.2 4.850 121 4.764 2.2 .087 12 .472 2
3 Int. a MVS1200X03S120 38.2 1.504 62.2 2.449 62.2 2.449 124.2 4.890 122 4.803 2.2 .087 12 .472 6
5 Int. a MVS1200X05S120 62.2 2.449 98.2 3.866 98.2 3.866 160.2 6.307 158 6.220 2.2 .087 12 .472 6
12.000 .4724 M14x2.0
8 Int. a MVS1200X08S120 98.2 3.866 134.2 5.283 134.2 5.283 196.2 7.724 194 7.638 2.2 .087 12 .472 6
10 Int. a MVS1200X10S120 122.2 4.811 158.2 6.228 161.2 6.346 223.2 8.787 221 8.701 2.2 .087 12 .472 8
15 Int. s MVS1200X15S120 182.2 7.173 218.2 8.591 221.2 8.709 283.2 11.150 281 11.063 2.2 .087 12 .472 8
20 Int. s MVS1200X20S120 242.2 9.535 278.2 10.953 281.2 11.071 343.2 13.512 341 13.425 2.2 .087 12 .472 8
25 Int. s MVS1200X25S120 302.2 11.898 338.2 13.315 341.2 13.433 403.2 15.874 401 15.787 2.2 .087 12 .472 8
2 Ext. s MVE1210X02S130 26.4 1.039 53.2 2.094 56.2 2.213 104.2 4.102 102 4.016 2.2 .087 13 .512 2
2 Ext. a MVE1210X02S140 26.4 1.039 53.2 2.094 56.2 2.213 104.2 4.102 102 4.016 2.2 .087 14 .551 2
2 Int. s MVS1210X02S130PL 26.1 1.028 52.9 2.083 55.9 2.201 103.9 4.091 102 4.016 1.9 .075 13 .512 4
2 Int. a MVS1210X02S140PL 26.1 1.028 52.9 2.083 55.9 2.201 103.9 4.091 102 4.016 1.9 .075 14 .551 4
3 Ext. s MVE1210X03S130 38.5 1.516 78.2 3.079 81.2 3.197 139.2 5.480 137 5.394 2.2 .087 13 .512 2
3 Ext. r MVE1210X03S140 38.5 1.516 78.2 3.079 81.2 3.197 139.2 5.480 137 5.394 2.2 .087 14 .551 2
3 Int. s MVS1210X03S130 38.5 1.516 64.7 2.547 67.2 2.646 130.2 5.126 128 5.039 2.2 .087 13 .512 6
3 Int. a MVS1210X03S140 38.5 1.516 64.7 2.547 67.2 2.646 130.2 5.126 128 5.039 2.2 .087 14 .551 6
5 Int. s MVS1210X05S130 62.7 2.469 102.2 4.024 106.2 4.181 169.2 6.661 167 6.575 2.2 .087 13 .512 6
12.100 .4764
5 Int. a MVS1210X05S140 62.7 2.469 102.2 4.024 106.2 4.181 169.2 6.661 167 6.575 2.2 .087 14 .551 6
8 Int. r MVS1210X08S130 99.0 3.898 140.2 5.520 145.2 5.717 208.2 8.197 206 8.110 2.2 .087 13 .512 6
8 Int. a MVS1210X08S140 99.0 3.898 140.2 5.520 145.2 5.717 208.2 8.197 206 8.110 2.2 .087 14 .551 6
10 Int. r MVS1210X10S130 123.2 4.850 165.2 6.504 168.2 6.622 231.2 9.102 229 9.016 2.2 .087 13 .512 8
10 Int. a MVS1210X10S140 123.2 4.850 165.2 6.504 168.2 6.622 231.2 9.102 229 9.016 2.2 .087 14 .551 8
15 Int. r MVS1210X15S130 183.7 7.232 227.2 8.945 230.2 9.063 293.2 11.543 291 11.457 2.2 .087 13 .512 8
15 Int. a MVS1210X15S140 183.7 7.232 227.2 8.945 230.2 9.063 293.2 11.543 291 11.457 2.2 .087 14 .551 8
20 Int. r MVS1210X20S130 244.2 9.614 290.2 11.425 293.2 11.543 356.2 14.024 354 13.937 2.2 .087 13 .512 8
20 Int. a MVS1210X20S140 244.2 9.614 290.2 11.425 293.2 11.543 356.2 14.024 354 13.937 2.2 .087 14 .551 8
2 Ext. s MVE1220X02S130 26.6 1.047 53.2 2.094 56.2 2.213 104.2 4.102 102 4.016 2.2 .087 13 .512 2
2 Ext. a MVE1220X02S140 26.6 1.047 53.2 2.094 56.2 2.213 104.2 4.102 102 4.016 2.2 .087 14 .551 2
2 Int. s MVS1220X02S130PL 26.3 1.035 52.9 2.083 55.9 2.201 103.9 4.091 102 4.016 1.9 .075 13 .512 4
2 Int. a MVS1220X02S140PL 26.3 1.035 52.9 2.083 55.9 2.201 103.9 4.091 102 4.016 1.9 .075 14 .551 4
3 Ext. s MVE1220X03S130 38.8 1.528 78.2 3.079 81.2 3.197 139.2 5.480 137 5.394 2.2 .087 13 .512 2
3 Ext. r MVE1220X03S140 38.8 1.528 78.2 3.079 81.2 3.197 139.2 5.480 137 5.394 2.2 .087 14 .551 2
3 Int. s MVS1220X03S130 38.8 1.528 64.7 2.547 67.2 2.646 130.2 5.126 128 5.039 2.2 .087 13 .512 6
3 Int. a MVS1220X03S140 38.8 1.528 64.7 2.547 67.2 2.646 130.2 5.126 128 5.039 2.2 .087 14 .551 6
5 Int. s MVS1220X05S130 63.2 2.488 102.2 4.024 106.2 4.181 169.2 6.661 167 6.575 2.2 .087 13 .512 6
12.200 .4803
5 Int. a MVS1220X05S140 63.2 2.488 102.2 4.024 106.2 4.181 169.2 6.661 167 6.575 2.2 .087 14 .551 6
8 Int. r MVS1220X08S130 99.8 3.929 140.2 5.520 145.2 5.717 208.2 8.197 206 8.110 2.2 .087 13 .512 6
8 Int. a MVS1220X08S140 99.8 3.929 140.2 5.520 145.2 5.717 208.2 8.197 206 8.110 2.2 .087 14 .551 6
10 Int. r MVS1220X10S130 124.2 4.890 165.2 6.504 168.2 6.622 231.2 9.102 229 9.016 2.2 .087 13 .512 8
M
10 Int. a MVS1220X10S140 124.2 4.890 165.2 6.504 168.2 6.622 231.2 9.102 229 9.016 2.2 .087 14 .551 8
15 Int. r MVS1220X15S130 185.2 7.291 227.2 8.945 230.2 9.063 293.2 11.543 291 11.457 2.2 .087 13 .512 8
DRILLING
15 Int. a MVS1220X15S140 185.2 7.291 227.2 8.945 230.2 9.063 293.2 11.543 291 11.457 2.2 .087 14 .551 8
20 Int. r MVS1220X20S130 246.2 9.693 290.2 11.425 293.2 11.543 356.2 14.024 354 13.937 2.2 .087 13 .512 8
20 Int. a MVS1220X20S140 246.2 9.693 290.2 11.425 293.2 11.543 356.2 14.024 354 13.937 2.2 .087 14 .551 8
OPERATIONAL GUIDANCE M073
CUTTING CONDITIONS M075
TECHNICAL DATA P001 M057
(Int./Ext.)
Coolant
LU LCF LH OAL LF PL DCON
Type
DP1020
Metric Decimal Fraction Wire / Thread L/D Order Number
(mm) Letter Size
(inch) mm inch mm inch mm inch mm inch mm inch mm inch mm inch
2 Ext. a MVE1200X02S120 26.2 1.031 49.2 1.937 49.2 1.937 97.2 3.827 95 3.740 2.2 .087 12 .472 2
2 Int. a MVS1200X02S120PL 25.9 1.020 48.9 1.925 48.9 1.925 96.9 3.815 95 3.740 1.9 .075 12 .472 4
3 Ext. s MVE1200X03S120 38.2 1.504 75.2 2.961 75.2 2.961 123.2 4.850 121 4.764 2.2 .087 12 .472 2
3 Int. a MVS1200X03S120 38.2 1.504 62.2 2.449 62.2 2.449 124.2 4.890 122 4.803 2.2 .087 12 .472 6
5 Int. a MVS1200X05S120 62.2 2.449 98.2 3.866 98.2 3.866 160.2 6.307 158 6.220 2.2 .087 12 .472 6
12.000 .4724 M14x2.0
8 Int. a MVS1200X08S120 98.2 3.866 134.2 5.283 134.2 5.283 196.2 7.724 194 7.638 2.2 .087 12 .472 6
10 Int. a MVS1200X10S120 122.2 4.811 158.2 6.228 161.2 6.346 223.2 8.787 221 8.701 2.2 .087 12 .472 8
15 Int. s MVS1200X15S120 182.2 7.173 218.2 8.591 221.2 8.709 283.2 11.150 281 11.063 2.2 .087 12 .472 8
20 Int. s MVS1200X20S120 242.2 9.535 278.2 10.953 281.2 11.071 343.2 13.512 341 13.425 2.2 .087 12 .472 8
25 Int. s MVS1200X25S120 302.2 11.898 338.2 13.315 341.2 13.433 403.2 15.874 401 15.787 2.2 .087 12 .472 8
2 Ext. s MVE1210X02S130 26.4 1.039 53.2 2.094 56.2 2.213 104.2 4.102 102 4.016 2.2 .087 13 .512 2
2 Ext. a MVE1210X02S140 26.4 1.039 53.2 2.094 56.2 2.213 104.2 4.102 102 4.016 2.2 .087 14 .551 2
2 Int. s MVS1210X02S130PL 26.1 1.028 52.9 2.083 55.9 2.201 103.9 4.091 102 4.016 1.9 .075 13 .512 4
2 Int. a MVS1210X02S140PL 26.1 1.028 52.9 2.083 55.9 2.201 103.9 4.091 102 4.016 1.9 .075 14 .551 4
3 Ext. s MVE1210X03S130 38.5 1.516 78.2 3.079 81.2 3.197 139.2 5.480 137 5.394 2.2 .087 13 .512 2
3 Ext. r MVE1210X03S140 38.5 1.516 78.2 3.079 81.2 3.197 139.2 5.480 137 5.394 2.2 .087 14 .551 2
3 Int. s MVS1210X03S130 38.5 1.516 64.7 2.547 67.2 2.646 130.2 5.126 128 5.039 2.2 .087 13 .512 6
3 Int. a MVS1210X03S140 38.5 1.516 64.7 2.547 67.2 2.646 130.2 5.126 128 5.039 2.2 .087 14 .551 6
5 Int. s MVS1210X05S130 62.7 2.469 102.2 4.024 106.2 4.181 169.2 6.661 167 6.575 2.2 .087 13 .512 6
12.100 .4764
5 Int. a MVS1210X05S140 62.7 2.469 102.2 4.024 106.2 4.181 169.2 6.661 167 6.575 2.2 .087 14 .551 6
8 Int. r MVS1210X08S130 99.0 3.898 140.2 5.520 145.2 5.717 208.2 8.197 206 8.110 2.2 .087 13 .512 6
8 Int. a MVS1210X08S140 99.0 3.898 140.2 5.520 145.2 5.717 208.2 8.197 206 8.110 2.2 .087 14 .551 6
10 Int. r MVS1210X10S130 123.2 4.850 165.2 6.504 168.2 6.622 231.2 9.102 229 9.016 2.2 .087 13 .512 8
10 Int. a MVS1210X10S140 123.2 4.850 165.2 6.504 168.2 6.622 231.2 9.102 229 9.016 2.2 .087 14 .551 8
15 Int. r MVS1210X15S130 183.7 7.232 227.2 8.945 230.2 9.063 293.2 11.543 291 11.457 2.2 .087 13 .512 8
15 Int. a MVS1210X15S140 183.7 7.232 227.2 8.945 230.2 9.063 293.2 11.543 291 11.457 2.2 .087 14 .551 8
20 Int. r MVS1210X20S130 244.2 9.614 290.2 11.425 293.2 11.543 356.2 14.024 354 13.937 2.2 .087 13 .512 8
20 Int. a MVS1210X20S140 244.2 9.614 290.2 11.425 293.2 11.543 356.2 14.024 354 13.937 2.2 .087 14 .551 8
2 Ext. s MVE1220X02S130 26.6 1.047 53.2 2.094 56.2 2.213 104.2 4.102 102 4.016 2.2 .087 13 .512 2
2 Ext. a MVE1220X02S140 26.6 1.047 53.2 2.094 56.2 2.213 104.2 4.102 102 4.016 2.2 .087 14 .551 2
2 Int. s MVS1220X02S130PL 26.3 1.035 52.9 2.083 55.9 2.201 103.9 4.091 102 4.016 1.9 .075 13 .512 4
2 Int. a MVS1220X02S140PL 26.3 1.035 52.9 2.083 55.9 2.201 103.9 4.091 102 4.016 1.9 .075 14 .551 4
3 Ext. s MVE1220X03S130 38.8 1.528 78.2 3.079 81.2 3.197 139.2 5.480 137 5.394 2.2 .087 13 .512 2
3 Ext. r MVE1220X03S140 38.8 1.528 78.2 3.079 81.2 3.197 139.2 5.480 137 5.394 2.2 .087 14 .551 2
3 Int. s MVS1220X03S130 38.8 1.528 64.7 2.547 67.2 2.646 130.2 5.126 128 5.039 2.2 .087 13 .512 6
3 Int. a MVS1220X03S140 38.8 1.528 64.7 2.547 67.2 2.646 130.2 5.126 128 5.039 2.2 .087 14 .551 6
5 Int. s MVS1220X05S130 63.2 2.488 102.2 4.024 106.2 4.181 169.2 6.661 167 6.575 2.2 .087 13 .512 6
12.200 .4803
5 Int. a MVS1220X05S140 63.2 2.488 102.2 4.024 106.2 4.181 169.2 6.661 167 6.575 2.2 .087 14 .551 6
8 Int. r MVS1220X08S130 99.8 3.929 140.2 5.520 145.2 5.717 208.2 8.197 206 8.110 2.2 .087 13 .512 6
8 Int. a MVS1220X08S140 99.8 3.929 140.2 5.520 145.2 5.717 208.2 8.197 206 8.110 2.2 .087 14 .551 6
10 Int. r MVS1220X10S130 124.2 4.890 165.2 6.504 168.2 6.622 231.2 9.102 229 9.016 2.2 .087 13 .512 8
M
10 Int. a MVS1220X10S140 124.2 4.890 165.2 6.504 168.2 6.622 231.2 9.102 229 9.016 2.2 .087 14 .551 8
15 Int. r MVS1220X15S130 185.2 7.291 227.2 8.945 230.2 9.063 293.2 11.543 291 11.457 2.2 .087 13 .512 8
DRILLING
15 Int. a MVS1220X15S140 185.2 7.291 227.2 8.945 230.2 9.063 293.2 11.543 291 11.457 2.2 .087 14 .551 8
20 Int. r MVS1220X20S130 246.2 9.693 290.2 11.425 293.2 11.543 356.2 14.024 354 13.937 2.2 .087 13 .512 8
20 Int. a MVS1220X20S140 246.2 9.693 290.2 11.425 293.2 11.543 356.2 14.024 354 13.937 2.2 .087 14 .551 8
OPERATIONAL GUIDANCE M073
CUTTING CONDITIONS M075
TECHNICAL DATA P001 M057
