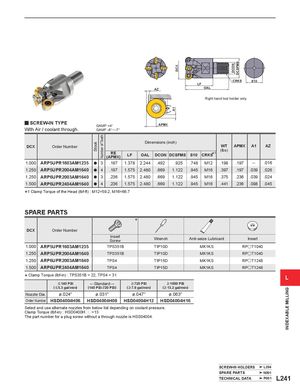

Общий каталог Mitsubishi 2020 - 2021 - страница 1416

Предыдущая страница Следующая страница

Навигация

Stock Number of Teeth A1 DCX DCON DCSFMS INDEXABLE MILLING CRKS S10 LF AZ OAL Right hand tool holder only. y SCREW-IN TYPE GAMP :+4° APMX With Air / coolant through. GAMF :-6° ─-7° Dimensions (inch) DCX Order Number WT APMX A1 AZ RE(APMX) LF OAL DCON DCSFMS S10 CRKS*1 (lbs) 1.000 ARP5UPR1603AM1235 a 3 .197 1.378 2.244 .492 .925 .748 M12 .198 .197 ─ .016 1.250 ARP5UPR2004AM1640 a 4 .197 1.575 2.480 .669 1.122 .945 M16 .397 .197 .039 .026 1.250 ARP6UPR2003AM1640 a 3 .236 1.575 2.480 .669 1.122 .945 M16 .375 .236 .039 .024 1.500 ARP6UPR2404AM1640 a 4 .236 1.575 2.480 .669 1.122 .945 M16 .441 .236 .098 .045 *1 Clamp Torque of the Head (lbf-ft) : M12=59.2, M16=66.7 SPARE PARTS * DCX Order Number InsertScrew Wrench Anti-seize Lubricant Insert 1.000 ARP5UPR1603AM1235 TPS351B TIP10D MK1KS RPoT1040 1.250 ARP5UPR2004AM1640 TPS351B TIP10D MK1KS RPoT1040 1.250 ARP6UPR2003AM1640 TPS4 TIP15D MK1KS RPoT1248 1.500 ARP6UPR2404AM1640 TPS4 TIP15D MK1KS RPoT1248 * Clamp Torque (lbf-in) : TPS351B = 22, TPS4 = 31 L < 140 PSI ←Standard→ > 720 PSI > 1000 PSI ( < 5.3 gal/min) (140 PSI-720 PSI) ( > 7.9 gal/min) ( > 13.2 gal/min) Nozzle Dia. ø.024" ø.031" ø.047" ø.063" Order Number HSD04004H06 HSD04004H08 HSD04004H12 HSD04004H16 Select and use alternate nozzles from below list depending on coolant pressure. Clamp Torque (lbf-in) : HSD0400Hpp=13 The part number for a plug screw without a through nozzle is HSS04004. SCREW-IN HOLDERS L294 SPARE PARTS N001 TECHNICAL DATA P001 L241
