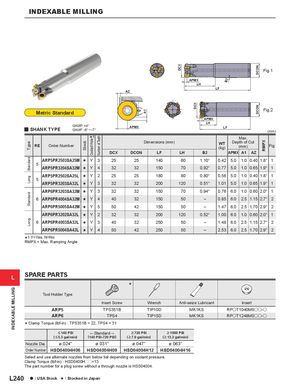

Общий каталог Mitsubishi 2020 - 2021 - страница 1415

Предыдущая страница Следующая страница

Навигация

INDEXABLE MILLING TypeStandardLongStandardLong Stock Coolant Hole Number of Teeth A1 DCX DCX B2 DCONDCON RMPX INDEXABLE MILLING Fig.1 APMX LH LF AZ Metric Standard Fig.2 APMX GAMP :+4°y SHANK TYPEGAMF :-6° ─-7° APMX LH LF (mm) *1REOrder Number Max.Dimensions (mm)WT(kg)Depth of Cut(mm)Fig. DCX DCON LF LH B2 APMX A1 AZ ARP5PR2503SA25M s Y 3 25 25 140 60 1.10° 0.42 5.0 1.0 0.40 1.8° 1 5 ARP5PR3204SA32M s Y 4 32 32 150 70 0.92° 0.77 5.0 1.0 0.65 1.9° 1 ARP5PR2502SA25L s Y 2 25 25 180 80 0.80° 0.56 5.0 1.0 0.40 1.8° 1 5 ARP5PR3203SA32L s Y 3 32 32 200 120 0.51° 1.01 5.0 1.0 0.65 1.9° 1 ARP6PR3203SA32M s Y 3 32 32 150 70 0.94° 0.76 6.0 1.0 0.60 2.0° 1 6 ARP6PR4004SA32M s Y 4 40 32 150 50 ‒ 0.85 6.0 2.5 1.15 2.7° 2 ARP6PR5005SA42M s Y 5 50 42 150 50 ‒ 1.47 6.0 2.5 1.70 2.9° 2 ARP6PR3202SA32L s Y 2 32 32 200 120 0.52° 1.00 6.0 1.0 0.60 2.0° 1 6 ARP6PR4003SA32L s Y 3 40 32 250 50 ‒ 1.48 6.0 2.5 1.15 2.7° 2 ARP6PR5004SA42L s Y 4 50 42 250 50 ‒ 2.53 6.0 2.5 1.70 2.9° 2 *1 Y=Yes, N=No RMPX = Max. Ramping Angle L SPARE PARTS * Tool Holder Type Insert Screw Wrench Anti-seize Lubricant Insert ARP5 TPS351B TIP10D MK1KS RPoT1040M0oo-o ARP6 TPS4 TIP15D MK1KS RPoT1248M0oo-o * Clamp Torque (lbf-in) : TPS351B = 22, TPS4 = 31 < 140 PSI ←Standard→ > 720 PSI > 1000 PSI ( < 5.3 gal/min) (140 PSI-720 PSI) ( > 7.9 gal/min) ( > 13.2 gal/min) Nozzle Dia. ø.024" ø.031" ø.047" ø.063" Order Number HSD04004H06 HSD04004H08 HSD04004H12 HSD04004H16 Select and use alternate nozzles from below list depending on coolant pressure. Clamp Torque (lbf-in) : HSD0400Hpp=13 The part number for a plug screw without a through nozzle is HSS04004. L240 a : USA Stock s : Stocked in Japan
