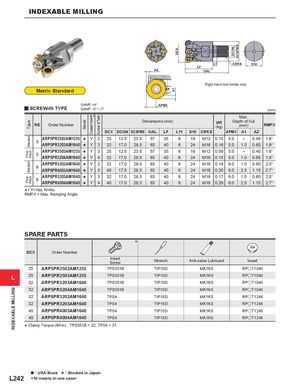

| y S | CR M | G G EW-IN TYPE etric Standard | AM AM | P F | : : | +4° -6°─-7 | ° | AZ | APMX | DCX A1 | L | F OAL Righ | L11 thandt | DCON DCSFMS CRK ool holder | S only. | S10 | (mm | ||
| Type | RE | Order Number | Stock | lant Hole | 1 ber of Teeth | D | imensio | ns (mm | ) | WT (kg) | Dep | Max. th of (mm) | Cut | RMPX | |||||
| Coo | Num | DCX | DCON | DCSFMS | OAL | LF | L11 | S10 | CRKS | APMX | A1 | AZ | |||||||
| dard | ARP5PR2502AM1235 | s | Y | 2 | 25 | 12.5 | 23.5 | 57 | 35 | 6 | 19 | M12 | 0.10 | 5.0 | ‒ | 0.40 | 1.8° | ||
| Stan | 5 | ARP5PR3203AM1640 | s | Y | 3 | 32 | 17.0 | 28.5 | 63 | 40 | 6 | 24 | M16 | 0.16 | 5.0 | 1.0 | 0.65 | 1.9° | |
| ne ch | ARP5PR2503AM1235 | s | Y | 3 | 25 | 12.5 | 23.5 | 57 | 35 | 6 | 19 | M12 | 0.09 | 5.0 | ‒ | 0.40 | 1.8° | ||
| Fi Pit | 5 | ARP5PR3204AM1640 | s | Y | 4 | 32 | 17.0 | 28.5 | 63 | 40 | 6 | 24 | M16 | 0.15 | 5.0 | 1.0 | 0.65 | 1.9° | |
| dard | ARP6PR3202AM1640 | s | Y | 2 | 32 | 17.0 | 28.5 | 63 | 40 | 6 | 24 | M16 | 0.18 | 6.0 | 1.0 | 0.60 | 2.0° | ||
| Stan | 6 | ARP6PR4003AM1640 | s | Y | 3 | 40 | 17.0 | 28.5 | 63 | 40 | 6 | 24 | M16 | 0.20 | 6.0 | 2.5 | 1.15 | 2.7° | |
| ne ch | 6 | ARP6PR3203AM1640 | s | Y | 3 | 32 | 17.0 | 28.5 | 63 | 40 | 6 | 24 | M16 | 0.17 | 6.0 | 1.0 | 0.60 | 2.0° | |
| Fi Pit | ARP6PR4004AM1640 | s | Y | 4 | 40 | 17.0 | 28.5 | 63 | 40 | 6 | 24 | M16 | 0.20 | 6.0 | 2.5 | 1.15 | 2.7° |
*1 Y=Yes, N=No
RMPX = Max. Ramping Angle
SPARE PARTS
| DCX | Order Number | ||||
| Insert Screw | Wrench | Anti-seize Lubricant | Insert | ||
| 25 | ARP5PR2502AM1235 | TPS351B | TIP10D | MK1KS | RPoT1040 |
| 25 | ARP5PR2503AM1235 | TPS351B | TIP10D | MK1KS | RPoT1040 |
| 32 | ARP5PR3203AM1640 | TPS351B | TIP10D | MK1KS | RPoT1040 |
| 32 | ARP5PR3204AM1640 | TPS351B | TIP10D | MK1KS | RPoT1040 |
| 32 | ARP6PR3202AM1640 | TPS4 | TIP15D | MK1KS | RPoT1248 |
| 32 | ARP6PR3203AM1640 | TPS4 | TIP15D | MK1KS | RPoT1248 |
| 40 | ARP6PR4003AM1640 | TPS4 | TIP15D | MK1KS | RPoT1248 |
| 40 | ARP6PR4004AM1640 | TPS4 | TIP15D | MK1KS | RPoT1248 |
