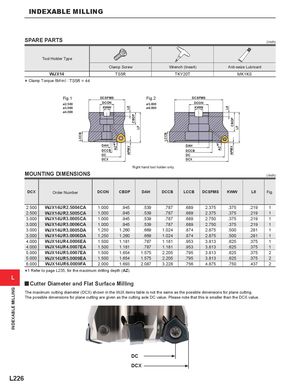

Общий каталог Mitsubishi 2020 - 2021 - страница 1401
Навигация
Каталог Mitsubishi Materials запасные части
Каталог Mitsubishi Materials резьбонарезной инструмент
Каталог Mitsubishi Materials СНП с CBN и PCD для токарной обработки
Каталог Mitsubishi Materials сверлильные инструменты
Каталог Mitsubishi Materials расточной инструмент
Каталог Mitsubishi Materials пластины для точения
SPARE PARTS
(inch)
Tool Holder Type
Clamp Screw Wrench (Insert) Anti-seize Lubricant
| WJX14 | TS5R | TKY20T | MK1KS | |
| * Clamp Torque (lbf-in) : TS5R = 44 |
| Fig.1 | DCSFMS | Fig.2 | DCSFMS |
| ø2.500 | DCON | ø5.000 | DCON |
| ø3.000 | KWW | ø6.000 | KWW |
ø4.000
| DAH | DAH |
| DCCB | DCCB |
| DC | DC |
| DCX | DCX |
Right hand tool holder only.
| (inch) | ||||||||||
| DCX | Order Number | DCON | CBDP | DAH | DCCB | LCCB | DCSFMS | KWW | L8 | Fig. |
| 2.500 | WJX14UR2.5004CA | 1.000 | .945 | .539 | .787 | .689 | 2.375 | .375 | .219 | 1 |
| 2.500 | WJX14UR2.5005CA | 1.000 | .945 | .539 | .787 | .689 | 2.375 | .375 | .219 | 1 |
| 3.000 | WJX14UR3.0005CA | 1.000 | .945 | .539 | .787 | .689 | 2.750 | .375 | .219 | 1 |
| 3.000 | WJX14UR3.0006CA | 1.000 | .945 | .539 | .787 | .689 | 2.750 | .375 | .219 | 1 |
| 3.000 | WJX14UR3.0005DA | 1.250 | 1.260 | .669 | 1.024 | .874 | 2.875 | .500 | .281 | 1 |
| 3.000 | WJX14UR3.0006DA | 1.250 | 1.260 | .669 | 1.024 | .874 | 2.875 | .500 | .281 | 1 |
| 4.000 | WJX14UR4.0006EA | 1.500 | 1.181 | .787 | 1.181 | .953 | 3.813 | .625 | .375 | 1 |
| 4.000 | WJX14UR4.0007EA | 1.500 | 1.181 | .787 | 1.181 | .953 | 3.813 | .625 | .375 | 1 |
| 5.000 | WJX14UR5.0007EA | 1.500 | 1.654 | 1.575 | 2.205 | .795 | 3.813 | .625 | .375 | 2 |
| 5.000 | WJX14UR5.0009EA | 1.500 | 1.654 | 1.575 | 2.205 | .795 | 3.813 | .625 | .375 | 2 |
| 6.000 | WJX14UR6.0009FA | 2.000 | 1.693 | 2.087 | 3.228 | .756 | 4.875 | .750 | .437 | 2 |
*1 Refer to page L235, for the maximum drilling depth (AZ).
L
y Cutter Diameter and Flat Surface Milling
The maximum cutting diameter (DCX) shown in the WJX items table is not the same as the possible dimensions for plane cutting. The possible dimensions for plane cutting are given as the cutting axle DC value. Please note that this is smaller than the DCX value.
